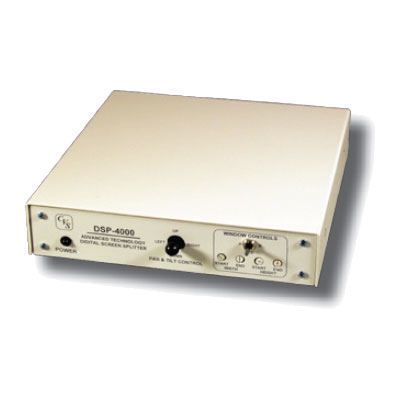

DSP-4000 CVS 2 Camera Digital Screen Splitter. Joy Stick Variable Pan & Tilt

        DSP-4000 CVS 2 Camera Digital Screen Splitter. Joy Stick Variable Pan & Tilt

        CVS
        SKU: WECDSP-4000
        The DSP-4000 is a 2 input, Time Base Correcting (TBC) screen splitter that provides an unlimited split variation. The preset position of the split or window is now front panel controllable. The position of the 2nd camera in the window or split is electronically variable with a Joystick that simulates a Pan and Tilt unit. The DSP-4000 requires 2 non-synchronized cameras of which camera A can be color. With the front panel joy stick pan and tilt control you can continually change the desired view of Camera B giving access to any area of the picture in the window. The front panel switch allows for full viewing of Camera A or Camera B. This eases the setup of the second camera in a split situation. The unit is at its best when B camera has a wide angle lens. It has Inputs - Composite Video and it is Input Connectors – BNC with Input Level - 1vpp Into 75 Ohms and it has Input Impedance - 75 ohm +/-5% and it is Outputs - 2x Per Input
          • 25% less
          Market price:$722.00 save $180.50
        • $541.50

        OR
        The DSP-4000 is a 2 input, Time Base Correcting (TBC) screen splitter that provides an unlimited split variation. The preset position of the split or window is now front panel controllable. The position of the 2nd camera in the window or split is electronically variable with a Joystick that simulates a Pan and Tilt unit. The DSP-4000 requires 2 non-synchronized cameras of which camera A can be color. With the front panel joy stick pan and tilt control you can continually change the desired view of Camera B giving access to any area of the picture in the window. The front panel switch allows for full viewing of Camera A or Camera B. This eases the setup of the second camera in a split situation. The unit is at its best when B camera has a wide angle lens. It has Inputs - Composite Video and it is Input Connectors – BNC with Input Level - 1vpp Into 75 Ohms and it has Input Impedance - 75 ohm +/-5% and it is Outputs - 2x Per Input it has Output Connector – BNC It has Output Impedance - 75 ohm +/-5% And it is Gain In/Out - Unity: +/-10% With Diff Gain - <1% It has Diff. Phase - <1° It is Frequency Response - 0-15mHz +/- .5dB &Power / Supply Hum - <63dB It is H Tilt - <1% It has V Tilt - <1% it has CCMR - Typ. 60dB @ 4Mhz it has High Freq. Boost - Typ. 0 - +10dB It has DC Operation - 12 to 18VDC Isolated Source And it is DC Power Draw - Based On Card Installed In Unit It has Power Connector - 3.5mm Phono It is Size - 8.00’W x 8.5”D x 1.65”H It has Weight - 1.5lbs and it has Operating Temp Range - 0-40°C With Provided Power Supply. -35-80°C Without Provided Power Supply. And it has Temperature Range - 0 - 70°C
          • SKU
            WECDSP-4000
          • Weight
            1.5 lbs
        • Manufacturer
          CVS
