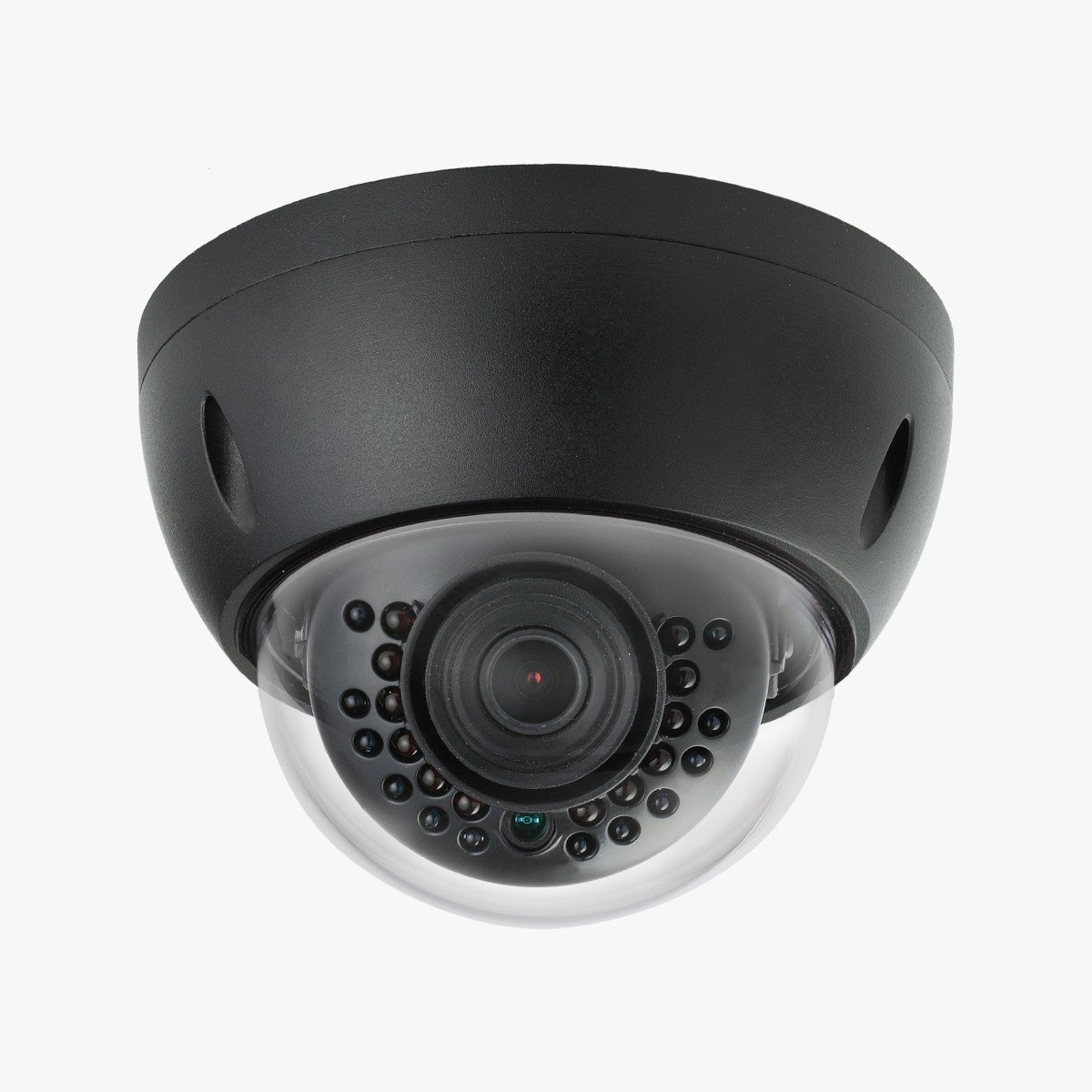

4MP WDR IR Mini-Dome Network Camera

WEC
SKU: WECIPC-HDBW1431EN-0280B N41BL22B

> 1/3” 4Megapixel progressive CMOS
> H.265& H.264 dual-stream encoding
> 20fps@4M(2688×1520) &25/30fps@3M(2304×1296)
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6 mm optional)
> Max IR LEDs Length 30m
> IP67, IK10, PoE

    • 50% less
    Market price:$260.00 save $130.00
  • $130.00
Qty:
OR


PRODUCT FEATURES

> 1/3” 4Megapixel progressive CMOS
> H.265& H.264 dual-stream encoding
> 20fps@4M(2688×1520) &25/30fps@3M(2304×1296)
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6 mm optional)
> Max IR LEDs Length 30m
> IP67, IK10, PoE

System Overview

The IR Megapixel Fixed camera delivers 4MP resolution with a 2.8mm/ 3.6mm fixed lens. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

Functions

Smart Codec (H.265+ & H.264+)

Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.

Intelligent Video Analysis (IVS)

Dahua camera is equipped with a built-in intelligent analytic algorithm based on video, which can realize intelligent functions like Tripwire and Intrusion, to quickly and accurately respond to monitoring events in specific area, It can enhance monitoring efficiency. In addition, the camera supports intelligent tamper detection, which is to generate warning message via detecting dramatic scene change and to guarantee effective video surveillance.

Wide Dynamic Range (WDR)

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Smart IR Technology

With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft).

Protection (IP67, IK10, wide voltage)

The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.).

Environmental

Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95% humidity.

Image Flip

Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90° increments for better video optimization.

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

Camera

Image Sensor

1/3” 4Megapixel progresive CMOS

Effective Pixels

2688(H)x1520(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.08Lux/F2.0( Color,1/3s,30IRE)

0.3Lux/F2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

24

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm (3.6mm optional)

Max. Aperture

F2.0/F2.0

Angle of View

H:104°/87°, V:57°/48°

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63(207ft)

25(82ft)

13(43ft)

6(20ft)

3.6 mm

80(262ft)

32(105ft)

16(52ft)

8(26ft)

PTZ

Pan/Tilt Range

Pan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355°

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

4M(2688x1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 4M(1 ~ 20fps)/3M (1 ~ 25/30fps)

Sub Stream: D1(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265: 12K ~ 8448Kbps

H.264: 32K ~ 10240Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

Edge Storage

NAS

Local PC for instant recording

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE(IEEE 802.3af)(Class 0)

Power Consumption

< 5.5W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Stroage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ109.9mm × 81mm (4.33" x 3.19")

Net Weight

0.34Kg (0.75lb)

Gross Weight

0.47Kg (1.04lb)



DOWNLOADS

• Datasheet

• User Manual

• Drawings

    • SKU
      WECIPC-HDBW1431EN-0280B N41BL22B
    • Weight
      0.75 lbs
  • Manufacturer
    WEC
  • Camera Type
    Dome
  • Camera Signal
    IP
  • Camera Resolution
    4 Megapixel
  • Lens Size
    8mm
  • Optical Zoom
    Fixed Lens
