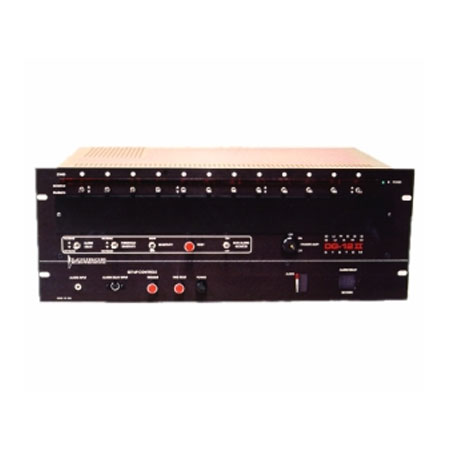

DG-12II Louroe Electronics 12 Zone Sound Activated Alarming Audio Base Station


Availability: In Stock
Product #: 23869
Manufacturer: Louroe Electronics


The DG-12II is a twelve zone alarming base stations designed to provide sound activated audio monitoring. As a system, it is interfaced with Louroe microphones or speaker/microphones mounted in remote locations. Each zone has a variable threshold level based on frequency and sound pressure, and a variable alarm delay (from 0.1 to 3.2 seconds) that can be set by the installer or owner. When a sound or disturbance exceeds the pre-set threshold level and time duration, the unit goes into alarm. A lighted LED and three second tone identify the zone, along with a relay contact for activating a camera or other annunciation. Requires companion DG-MA for two-way listen/talkback or DG-Monitor for one-way listen.


  • Model Number - DG-12II
  • Power requirements for microphone - 12VDC @ 4mA
  • Input sensitivity @ alarm frequency - -20dB
  • Monitor output frequency - 100Hz - 10kHz
  • Relay Contact - 0.5A @ 125 VAC
  • Alarm tone duration - 3 Seconds
  • Power consumption - 42W(standby) 60W(max)
  • Size - 19"W x 7"H x 10 1/4"D
  • Weight - 16.5 lbs.
  • Finish - Black Anodized
