DCSM-12V Louroe Electronics Push Button Activated Remote Call Station w/ Microphone


Availability: In Stock
Product #: 23886

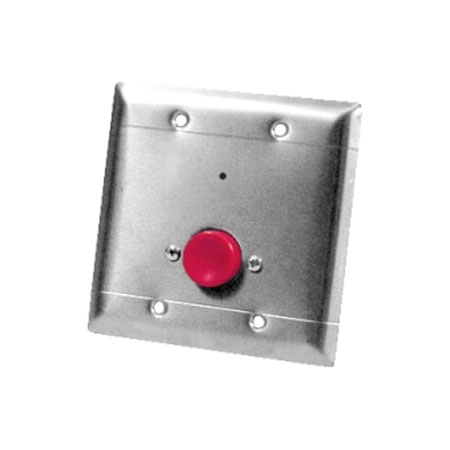

1" red call button mounted to a 2-gang stainless steel face plate. When button is pressed the base station is activated, identifying the zone. It also features a built-in electret condenser microphone for monitoring one-way audio at the remote area after the unit has been activated. A relay contact (from base station) activates a camera or other annunciation. Fits standard two-gang electrical box (not included) for flush or surface mounting.


  • Model Number - DCSM-12V
  • Microphone Type - Electret Condenser
  • Frequency response - 40Hz to 15kHz
  • Current drain - 4mA
  • Output - Line level (0dB @ 1000ohm
  • Supply voltage - 12VDC
  • Dimensions - 4 1/2"L x 4 1/2"W
  • Weight - 227g
