DCS-1 Louroe Electronics Remote Call Station w/ Microphone


Availability: In Stock
Product #: 23888

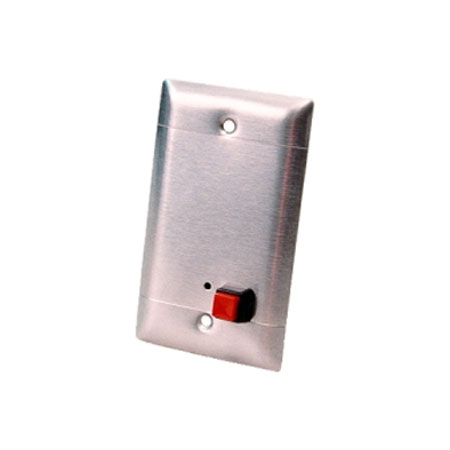

The Model DCS is a duress call station with a panic button and electret condenser microphone. They are mounted to a stainless steel faceplate that fits into a single gang electical box. As part of an audio monitoring system, Model DCS-1 can activate the Louroe Base Station when the panic button is pressed, or by sound activation picked up by the microphone. Unit is compatible only with ALA-4/8 and DG-12II/DG-25III Alarming Base Stations. When the alarming base station is activated, personnel can monitor the immediate area around the DCS-1 location.


  • Model Number - DCS-1
  • Microphone Output - Line Level (0dB @ 1000ohm)
  • Microphone Sensitivity - -65dB
  • Microphone Frequency Response - 40Hz to 15kHz
  • Microphone Output impedance - 600ohm unbalanced
  • Microphone Current Drain - 4mA
  • Output - 3Vrms into 10Kohm load @ 3 kHz
  • Supply Voltage - 12VDC
  • Tone Output - 3kHz
  • Dimensions - 4 1/2"L x 2 3/4"W
