Dahua HAC-HFW1100SN HD-CVI Bullet Camera - 1/2.9'' 720P, 3.6mm Lens, IP66, DC12V, 66FT NIGHT VISION, HCC3100S-IR


$45.00


Availability: In Stock
List Price: $75.00
SKU: HAC-HFW1100SN
Product #: 87087
Manufacturer:

Quantity

HCC3100S-IR/36

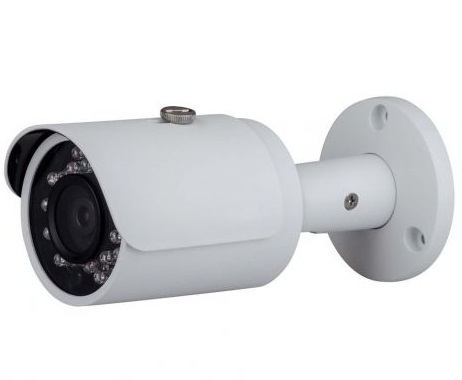

Dahua HAC-HFW1100SN HD-CVI Bullet Camera

The Dahua HAC-HFW1100SN HD-CVI bullet security camera is designed for indoor or outdoor usage. It comes with a 3.6mm lens. Smart IR up to 66ft and low lux technologies provide clear, black-and-white images out of otherwise dark settings. 2DNR - digital noise reduction - helps cut down on image fuzz. This camera is weatherproof, suited for facing inclement conditions from Mother Nature.

HD-CVI Video Recorder Required!

Key Features of Dahua HAC-HFW1100SN

  • 1MP High Definition
  • 3.6mm fixed lens
  • IR up to 66ft
  • Low Lux
  • Weatherproof
  • Auto (ICR), Color, B/W
  • 2DNR
  • DC12±25%

Warranty: 3-year Dahua warranty.

Disclaimer:
This is a non-branded OEM version of the Dahua product line. Non-branded products are identical to the brand products except for the OEM part number and the removal of the logo.
OEM Part #: HCC3100S-IR

There have been no reviews

Mobile APPs


HOW TO ACCESS SYSTEM USING P2P VIA MOBILE APPLICATION

View your recorder and cameras on the go. The Mobile Application IDMSS (IOS) / GDMSS (Android) allows you to add IMAXPRO recorders and cameras to the mobile app using P2P.

PREREQUISITES

- Smartphone (IOS device or Android)

- IDMSS/GDMSS already downloadedin your mobile device.

- P2P must be turned on from the recorder and connected to a network with internet access.



STEP BY STEP INSTRUCTION

(VERSION 4.50.000)



1. Open iDMSS/gDMSS on the phone, and select the home icon located on the top left corner.



2. Select the "Device" button/icon on the bottom to add the recorder/camera.

3. Select the "+" sign then select "Scan" to add the device.

4. Select the Device you want to Connect (If you have a wired Camera, Please choose Wired Camera).





5. Input the device for easy identification. It's required to input the password for the added device then select the save icon located on the top right corner.



Specifications


Model                                              DH-HAC-HFW1100SP                                DH-HAC-HFW1100SN

Camera

  • Image Sensor1/2.9" 1Megapixel CMOS
  • Effective Pixels1280(H)×720(V)
  • Electronic Shutter1/50s~1/100,000s                                                                     1/60s~1/100,000s
  • Video Frame Rate25fps@720P                                                                             30fps@720P
  • SynchronizationInternal
  • Min. Illumination0.05Lux/F1.6, 0Lux IR on
  • Video Output1-channel BNC HDCVI high definition video output

Camera Features

  • Max. IR LEDs Length30m, Smart IR
  • Day/NightAuto(ICR) / Color / B/W
  • Noise Reduction2D

Lens

  • Focal length3.6mm (2.8 mm, 6mm, 8mm optional)
  • Angle of ViewH: 88º(98º/52º/39.4º)
  • Mount TypeM12

General

  • Power SupplyDC12V±25%
  • Power ConsumptionMax 3.5W
  • Working Environment-30°C~+60°C / Less than 95%RH (no condensation)
  • Transmission DistanceOver 800m via 75-3 coaxial cable
  • Ingress ProtectionIP67
  • Dimensions(W×D×H)Φ70mm×165mm
  • Weight0.35kg
  • MaterialMetal (body) + Plastic (sunshield)
