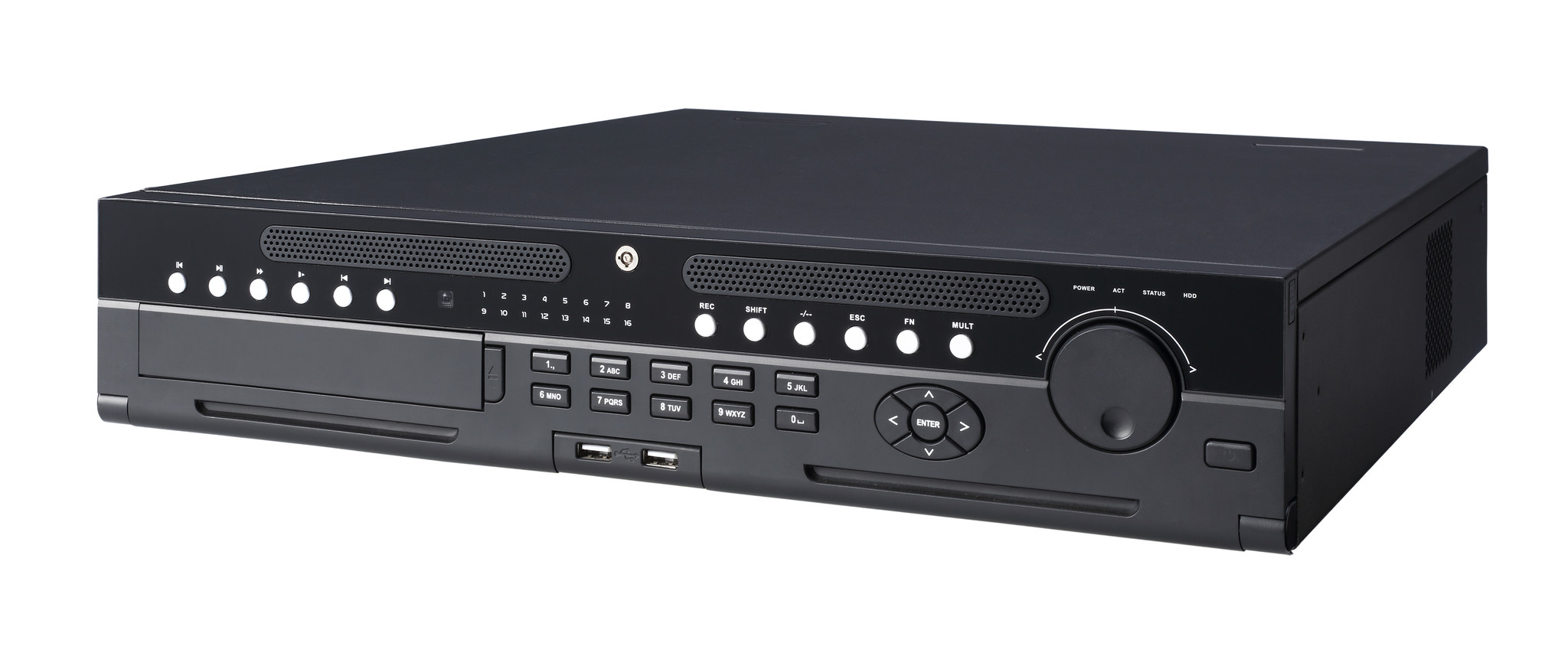

DAHUA DHI-NVR608-128-4K - SUPER 4K 128 CHANNEL NVR
With this 128 Channel Ultra HD 4K NVR, you're dealing with a monster NVR capable of dealing with large areas like hotels, shopping malls, casinos, office buildings and Palm Beach mansions! Pair this with some of our 8MP or 12 MP cameras and your 4K monitor and you'll see detail like never before!
This has a dual-core processor and an embedded Linux O/S so there's no need for any additional software or cards to install. Once you receive it, attach a monitor (choice of HDMI or VGA), hook it up to your network, configure your cameras and be ready to be blown away by the sharpness and clarity of your video.
After setup you'll even be able to view it on your web enabled smart device from anywhere and you can set this to send you notifications triggered by motion or set off alarms like sirens or horns.
Feel confident knowing that with images this clear, law enforcement can distinguish tattoos, facial features and details that can help with criminal prosecution if you are ever the victim of a crime against you or your property!
You have plenty of room for storage with 8 hard drive slots that offer you the ability to swap them out as needed even when the NVR is running (hot swappable) and if you still need more storage space, you can utilize any of the 4 USB ports for a flash drive or the eSATA port for an external drive.
HOW TO ACCESS SYSTEM USING P2P VIA MOBILE APPLICATION
View your recorder and cameras on the go. The Mobile Application IDMSS (IOS) / GDMSS (Android) allows you to add IMAXPRO recorders and cameras to the mobile app using P2P.
- Smartphone (IOS device or Android)
- IDMSS/GDMSS already downloadedin your mobile device.
- P2P must be turned on from the recorder and connected to a network with internet access.
STEP BY STEP INSTRUCTION
1. Open iDMSS/gDMSS on the phone, and select the home icon located on the top left corner.
2. Select the "Device" button/icon on the bottom to add the recorder/camera.
3. Select the "+" sign then select "Scan" to add the device.
4. Select the Device you want to Connect (If you have a wired Camera, Please choose Wired Camera).
5. Input the device for easy identification. It's required to input the password for the added device then select the save icon located on the top right corner.
|Main Processor||Intel Processors|
|IP Camera Input||128 channel|
|Two-way Talk||1channel Input, 1channel Output, RCA|
|Interface||2 HDMI (up to 3840×2160), 1 VGA|
|Resolution||3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768|
|Multi-screen Display||The 1st screen: 1/4/8/9/16/25/36|
|The 2nd screen: 1/4/8/9/16|
|OSD||Camera title, Time, Video loss, Camera lock, Motion detection, Recording|
|Resolution||12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.|
|Bit Rate||1~ 20Mbps|
|Record Mode||Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop|
|Record Interval||1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec|
|Video Detection & Alarm|
|Trigger Events||Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips|
|Video Detection||Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank|
|Alarm Input||16ch, low level effective, green terminal interface|
|Relay Output||8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface|
|Playback & Backup|
|Playback||128Mbps in Raid 5 mode
64Mbps in single HDD mode
|Search Mode||Time/Date, Alarm, MD & Exact search (accurate to second)|
|Playback Function||Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom|
|Backup Mode||USB Device/Network/Internal SATA burner/eSATA Device|
|Interface||2 RJ-45 ports (10/100/1000Mbps)|
|Ethernet Port||2 Ethernet ports joint working or 2 independent 1000Mbps Ethernet ports|
|Network Function||HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)|
|Max. User Access||128 users|
|Smart Phone||iPhone, iPad, Android, Windows Phone|
|Internal HDD||8 SATA III ports, up to 48TB|
|HDD Mode||Single, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare)|
|USB||4 USB ports(3 USB2.0, 1 USB3.0)|
|eSATA||1 eSATA port|
|RS232||1 port, For PC communication& keyboard|
|RS485||1 port, For PTZ control|
|Power Supply||AC110V~240V, 50~60Hz||AC100V~240V, 50~60Hz, Redundant|
|Power Consumption||<40W (Without HDD)|
|Dimension(W×D×H)||486mm(with ears)×454.9mm ×91mm||486mm(with ears)×471.8mm ×91mm|
|Weight||9kg (without HDD)|
