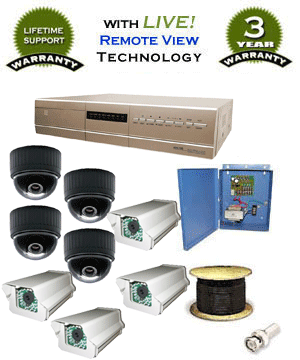

(1) WAVC-785 8 Channel MPEG-4 Digital Video Recorder ( DVR )
(4) AccuDome WYCM-45DVH Digital CCD Color Dome Security Cameras
(4) SONY WCAMIR480 High Resolution Super HAD Security Cameras (Mounting Bracket Included)
(1) 8 Camera 12VDC Fully-Regulated, Distributed, Power Supply UL APPROVED
(8) 100' Video/Power Cables & Cable Connectors
CAMERA DETAILS:
Product Features:
Sony Super HAD Technology
1/3 Inch Format CCD Sensor
Digital Signal Processing
480 Max TV Lines Resolution
Electronic Iris Control
Aesthetic Dome Housing
3.5mm - 8mm Varifocal Lens

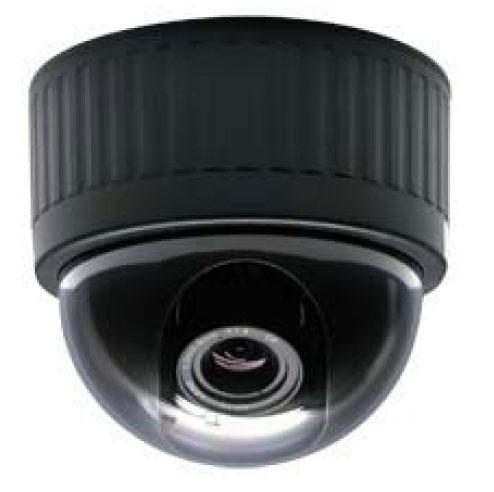

The AccuDome WYCM-45DVH Digital CCD Color Dome Security Camera is an entry level, varifocal, high resolution dome camera providing a very clean surveillance installation.
The AccuDome WYCM-45DVH features a high resolution Sony Super HAD 480 line CCD sensor with an electronic iris, allowing automatic compensation for varying light levels. Excellent picture quality is assured with 480 TV lines resolution and low 0.2 lux sensitivity.
With 2 plane mounting options, the WYCM-45DVH can be mounted on the wall, ceiling, or angled surfaces. The WYCM-45DVH includes a 3.5-8mm built-in varifocal lens taking the guesswork out of lens selection.
The non-intrusive, discreet housing is ideal for retail or public installs. Compact and simple design allows for a quick installation.
This professional Sony CCD dome camera provides stunning color surveillance with a very sharp picture. Proven performance, reliability, and discreet for any low profile installation.

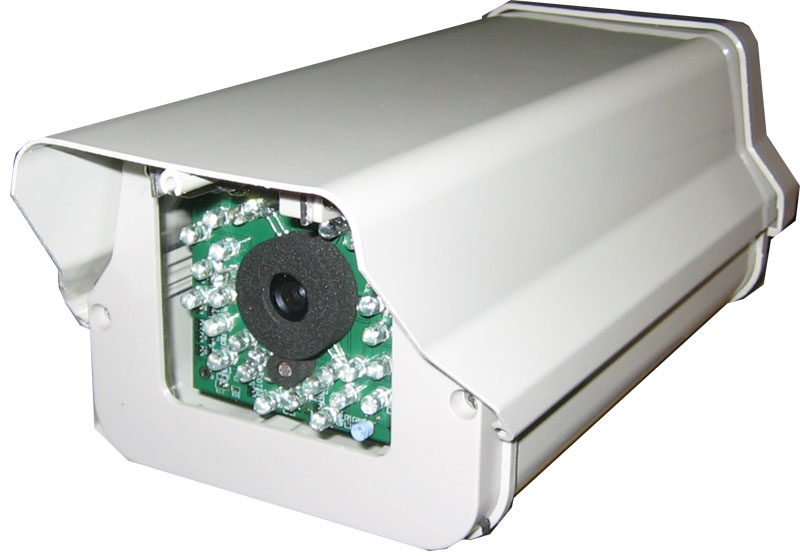

Low Power consumption
IR Leds. Mounting Bracket Included
Typical. Distance: 125 Feet
42 LEDS
Easy
Installation
Can be
put into standard outdoor camera housing
Color camera
with SONY 1/3" super HAD CCD sensor
Powerful function: Auto Electronic Shutter(AES)
Supports Auto
Iris Lens : both Video-Drive & DC-Drive lens
Employs Digital
Signal Processor(DSP) chip-set for image control
High sensitivity,
low smear, high anti-blooming, and high S/N ratio
Built-in anti-alasing
and IR-cut
Specifications:
ITEM
NTSC
Image pick-up Device
SONY 1/3" Normal-Resolution
CCD sensor
Effective
Picture Elements
510x492(HxV)
Horizontal Resolution
480 TV lines
Minimum
Illumination
0.01
LUX @F1.2
S/N Ratio
More than 50dB
Gamma Characteristic
0.45
Lens Mount
board mount
Auto Gain
Control
YES
Auto White Balance
YES
Auto Electronic
Shutter
1/60s~1/100,000s
on/off switch-able
Auto Iris Control
Video-Drive Lens
& DC-Drive Lens both supported
Back Light
Compensation
ON/OFF
switch-able
Synchronous System
Negative sync. Internal
Video Output
1
Vp-p/75 ohms. BNC of F connector
Angle
20 degree ~ 90 degree
Operating
Temp.
-10°C
to 50°C (14°F to 122°F)
Leds
42 Leds
Typical. Distance
125 Feet
Leds
DC 12V
Sensor
CDS

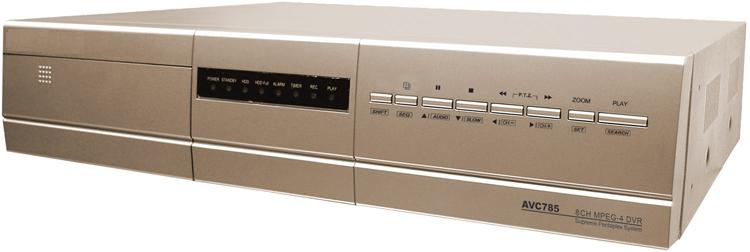

DVR DETAILS:
8 CH Digital Video Recorder
WAVC-785, 8 CH MPEG-4 real time Digital Video Recorder.
It includes features such as MPEG-4 compression format,
superior real time performance with 240 IPS (NTSC) / 200
IPS (PAL), longer recording time via independent disk
array, USB backup function, remote surveillance on 3G
& cellphone, advance motion trigger recording, and
pentaplex functions. All the benefits of this product
are created to secure your life every time and everywhere.

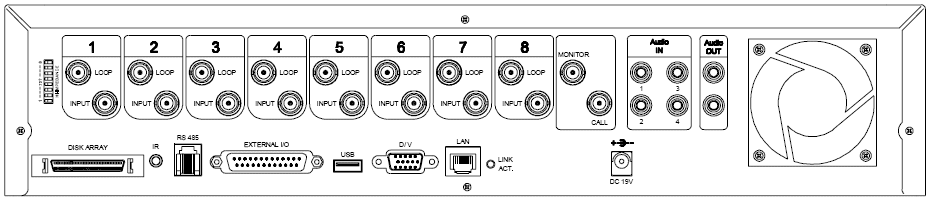

Connection
Features
Long
recording time
Remote
surveillance on mobile phone via 3G & GPRS, or on
PC through internet connection
Easy
backup with USB FLASH DRIVE
Alarm
trigger recording will send images to designated e-mail
and FTP address
Advanced
motion detection function (4 different adjustable factors
of motion detection sensitivity)
Convenient
search function.
Web
surveillance supports 5 viewers simultaneously
Support
covert screen for live view channels
IR
remote control of the system and PTZ through RS-485
Support
PELCO-D protocol for PTZ Control
Support
static IP, PPPOE, and DHCP with DDNS function
Record
audio with 4ch in and 2ch mono audio out
Specifications
MODEL
AVC785
Video format
NTSC or
PAL (switch able)
Video
Compression Format
MPEG-4
Video
Input
8 Channels.
Composite video signal 1 Vp-p 75Ω BNC
Video
Loop Out
8
Channels. Composite video signal 1 Vp-p 75Ω BNC
Video
Output
Main
Monitor Output : Composite video signal 1 Vp-p 75Ω BNC
Call Monitor Output : Composite video signal 1 Vp-p 75Ω BNC
Recording
Rate
Frame:
720 x 480 pixels with 60 IPS (NTSC) ;720 x 576 pixels with 50 IPS
(PAL)
CIF: 352 x 240 pixels with 240 IPS (NTSC) ;352 x 288 pixels with
200 IPS (PAL)
WAVC-785 8 Channel MPEG-4 Digital Video Recorder ( DVR )
Description
WAVC-785 8 Channel MPEG-4 Digital Video Recorder ( DVR )
Hard Drive
160 GB Hard Drive included, 200 GB Hard Drive, 250 GB Hard Drive, 300 GB Hard Drive, 400 GB Hard Drive, 500 GB Hard Drive
CD Backup Recorder
NO CD Backup, CD Backup Storage
Optional Monitor
I will use my own Monitor, 17 inch LCD Viewsonic Monitor
Monitor Output
Standard Video Output, VGA Output for Monitor
Cables
Bulk 500 feet spool, Bulk 1000 feet spool
Extended Warranty
1 Year Warranty Included, 2 Year Extended Warranty, 3 Year Extended Warranty
