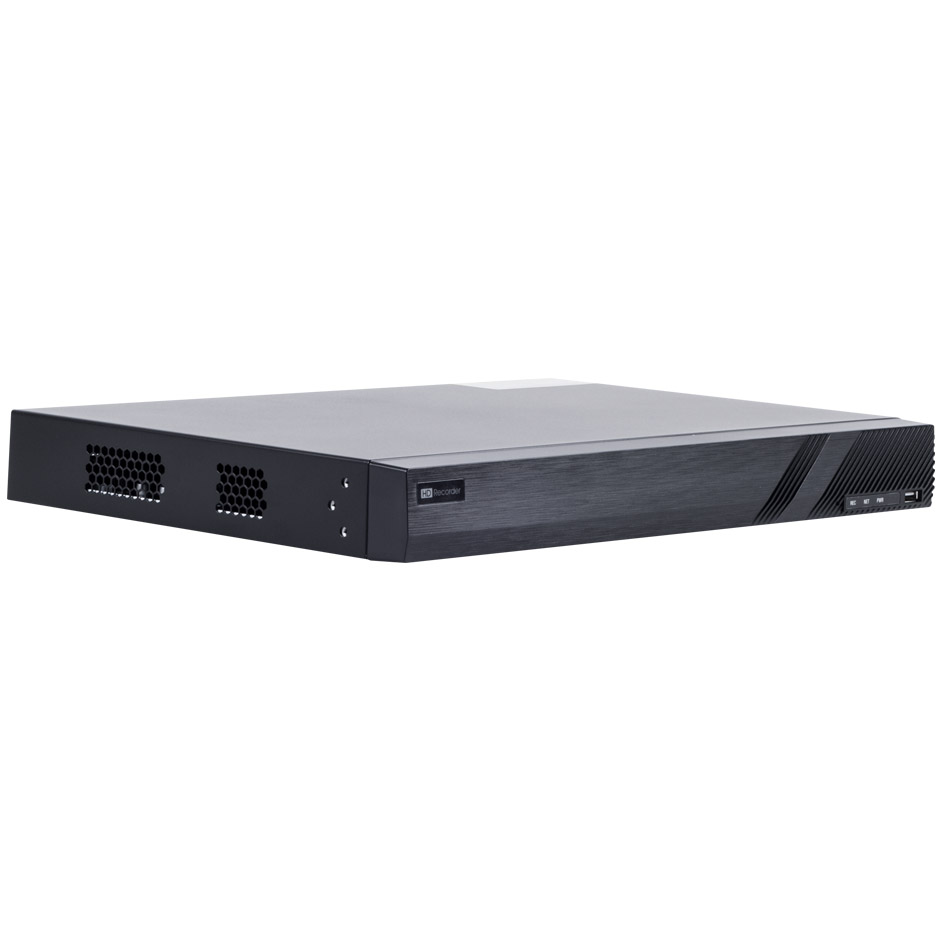

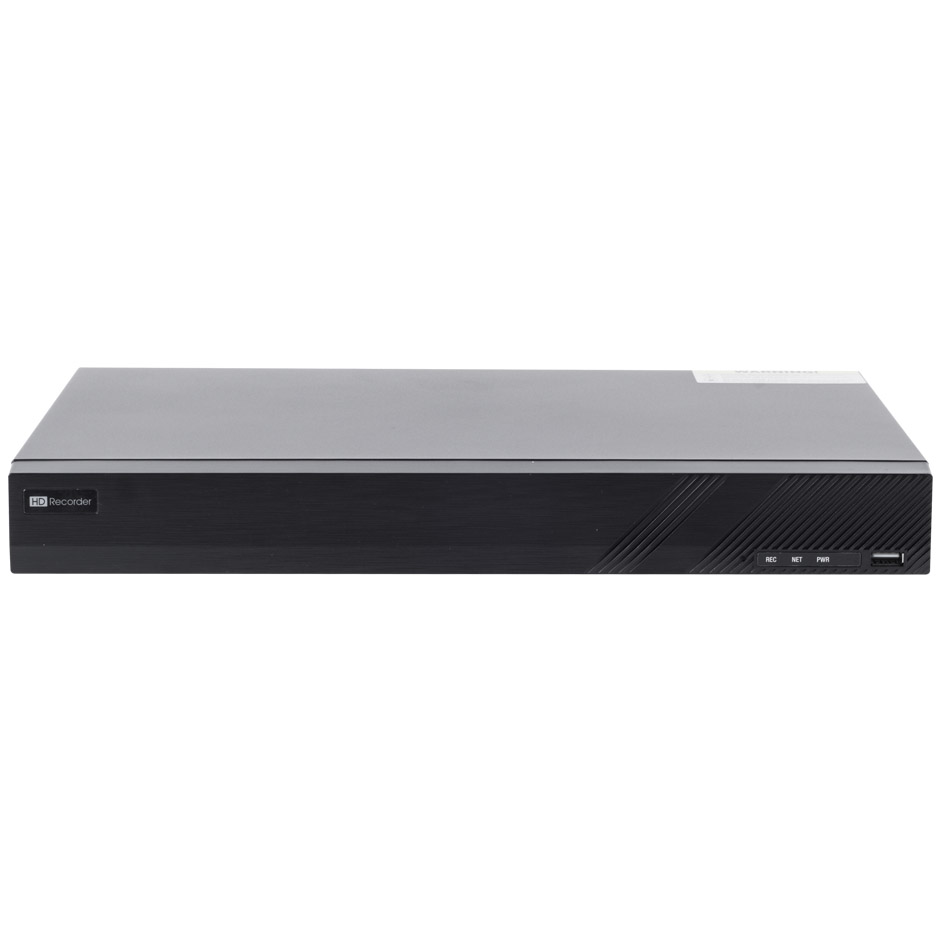

CLEAR XVR216 16-Channel 1080p Universal Video Recorder (AHD,TVI,CVI & CVBS), 2 SATA, Up to 4 IP Cameras


$249.00


Availability: In Stock
List Price: $565.00
SKU: CLR-XVR216
Product #: 91312
Manufacturer:
Recorder Type: XVR

Hard Drive:
Hard Drive #2:
Remote Login Support:
Quantity

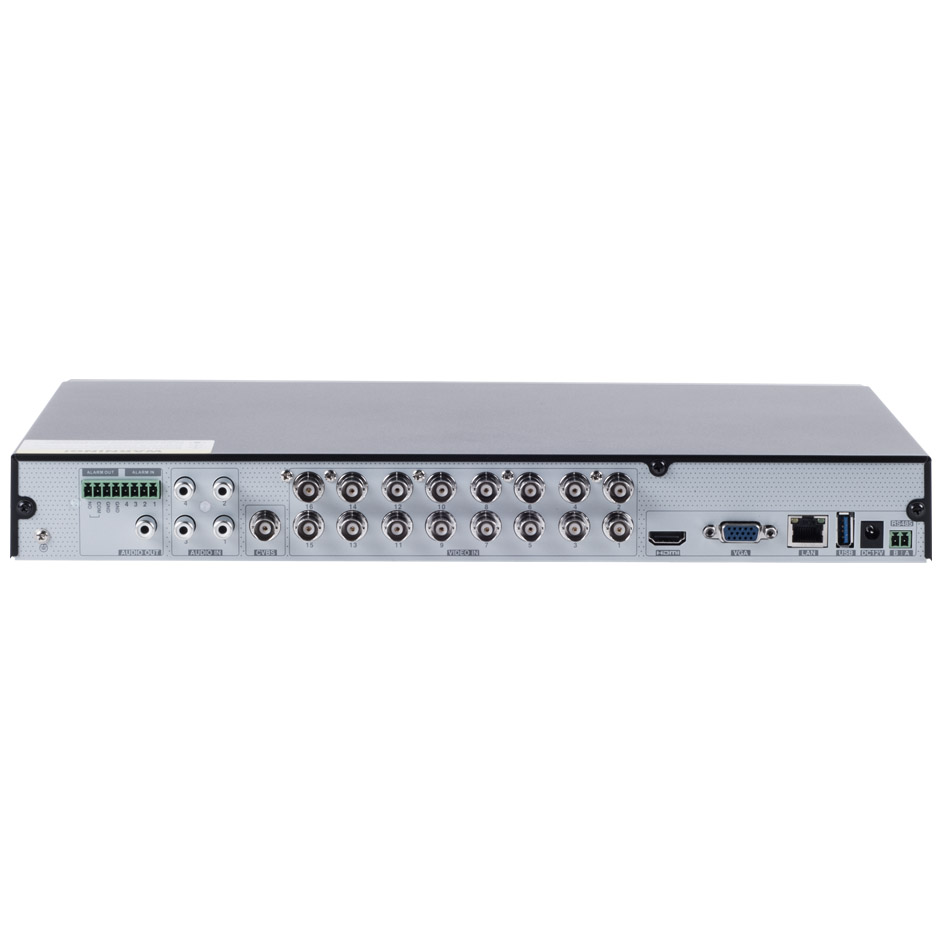

  • 16 BNC Video Inputs Supporting AHD, TVI, CVI and CVBS
  • Supports 4 IP Camera inputs up to 3MP Resolution
  • H.264 Video Compression
  • Up to 1080p Recording Resolution for HD Analog and up to 3MP for IP Cameras
  • 1 HDMI, 1 VGA and 1 CVBS BNC Video Output
  • 2 SATA Interfaces for Internal Storage up to 6TB
  • 1 RJ-45 10/100M Ethernet Interface
  • Supports NAT functionality and QRCode scanning for mobile device access

16 Channel HD Over Coax Hybrid in addition to 4 Channel IP. Compatible with all TVI, AHD, CVI and CVBS cameras. Full featured DVR platform includes VGA, HDMI, and a convenient analog BNC video output. Easy QR Code P2P setup.

Technical Specifications

CLR-XVR216

Video Input Interface

16 BNC Video Inputs

Video Input Signal

AHD, TVI, CVI, CVBS

IP Input Bandwidth

4 IP Camera @24Mbps

Video Output Interface

1 HDMI, 1 VGA, 1 CVBS (BNC)

Display Resolution

1920 x 1080; 1280 x 1024

Audio Input Interface

4 Channel, RCA Audio Inputs

Audio Output Interface

1 Channel, RCA Audio Output

Two-way Audio

1 Channel, RCA Audio Input (Uses Channel 1 Audio Input)

Recording Resolution

1080p, 1080p lite, 720p WD1

Frame Rate



1080p: 240fps (NTSC) / 1080p lite, 720p, WD1: 480fps (NTSC)

Bit Rate

768Kbps - 8Mbps

IP Recording Rate

3MP / 1080p / 960p / 720p: 120fps total available

Simultaneous Playback

Maximum 16 channels

Alarm Inputs

4 Channels

Relay Outputs

1 Channels

Network interface

1 x 10/100M RJ-45 Ethernet Interface

Remote Connections

6 Remote Users Maximum

HDD Interfaces

2 SATA interfaces, maximum 6TB per HDD

Backup Media

External USB or Network Download

USB Interfaces

2 x USB2.0 (1 Front, 1 Rear)

RS-485 Interface

1 Port for Serial PTZ Control

Power Supply

DC12V External Power Adapter

Power Consumption

<  15W (Without HDD)

Operating Environment

14° - 122°F, less than 90% Relative Humidity

Dimensions

15” x 10.5” x 2”

Weight (without HDD)

~9lbs


CRL-XVR216.pdf
