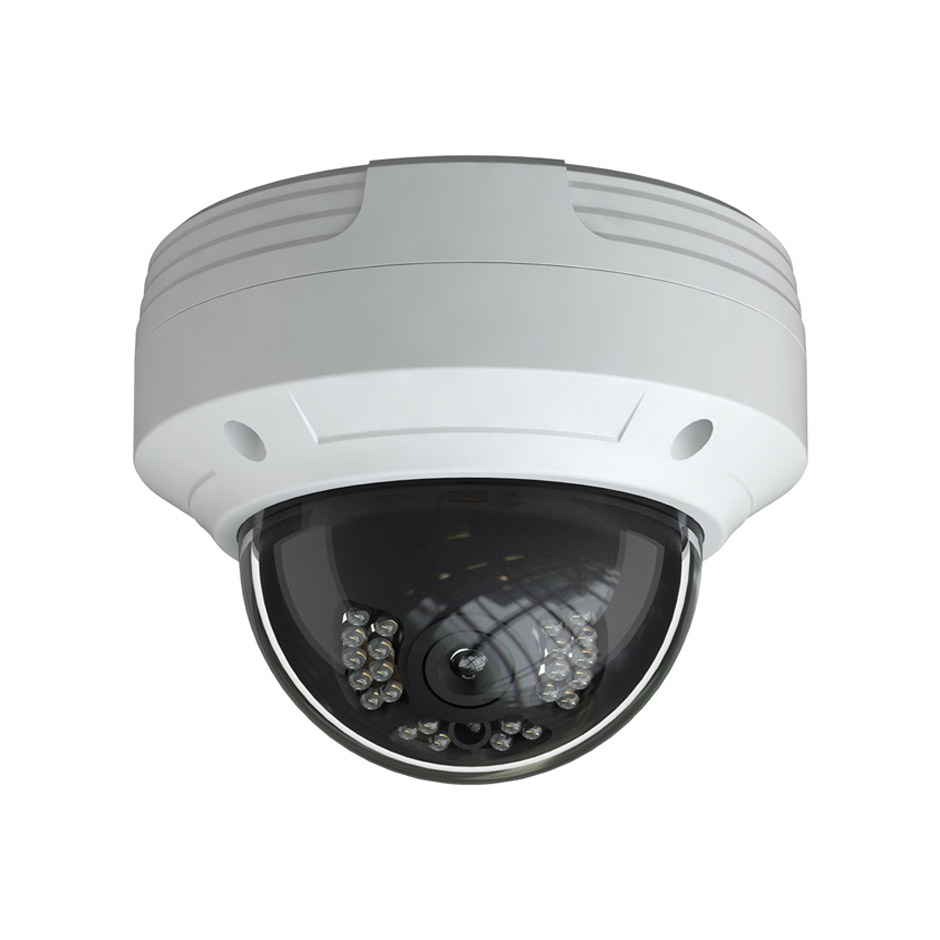

CLEAR 4MP Megapixel, 3.6mm Lens, 20m IR, H.265, IK10, Network IP Dome Camera

CLEAR
SKU: CLR-IPX3
  • 1/3” CMOS Image Sensor
  • 4 Megapixel (2592 x 1520) @20fps encoding
  • 3.6mm Fixed Lens
  • H.265 / H.264 / MJPEG Video Compression
  • Up to 20m (66’) IR distance
  • Smart Analysis (Perimeter Intrusion, Line Crossing and Object Removal)
  • Triple Stream Encoding
  • ONVIF Conformance
  • IP66 Ingress Protection Rating
    • 54% less
    Market price:$329.00 save $179.00
  • $150.00
Qty:
OR
  • 1/3” CMOS Image Sensor
  • 4 Megapixel (2592 x 1520) @20fps encoding
  • 3.6mm Fixed Lens
  • H.265 / H.264 / MJPEG Video Compression
  • Up to 20m (66’) IR distance
  • Smart Analysis (Perimeter Intrusion, Line Crossing and Object Removal)
  • Triple Stream Encoding
  • ONVIF Conformance
  • IP66 Ingress Protection Rating

4MP@20FPS/ h.264/h.265/MJPEG compression algorithm capable infrared vandal dome. 3 Axis indoor/outdoor IP camera. 12VDC and Built-In PoE. 3.6mm fixed lens. 20M IR Smart Analysis and triple stream capability. Control4 Drivers available.



Technical Specifications

CLR-IPX3

Camera

Sensor

1/3” 4 Megapixel CMOS Image Sensor

Effective Pixels

2592 x 1520

Electronic Shutter

1/25s ~ 1/100,000s

Iris Type

Fixed Iris

Minimum Illumination

Color: 0.05Lux @F1.2 (AGC on) / 0Lux with IR on

Lens

3.6mm Fixed Lens

Angle of View (H)

Horizontal: 72°

Day/Night

IR-cut filter with auto switch (ICR)

Wide Dynamic Range

Digital WDR

Backlight Compensation (BLC)

n/a

Highlight Compensation (HLC

n/a

Defogging

n/a

Digital Noise Reduction

2DNR/3DNR




Video Compression

H.265 / H.264 / MJPEG

Resolution

4MP (2592 x 1520), 2K (2560 x 1440), 3MP (2304 x 1296), 3MP (2048 x 1536), 1080p (1920 x 1080), 720p (1280 x 720), D1, CIF, 480 x 240

Main Stream

60Hz: 4MP / 2K @ 1 - 20fps; 3MP / 1080p / 720p @ 1 - 30fps

Bit Rate

128Kbps - 8Mbps

Bit Rate Type

VBR or CBR

Quality

5 Levels using VBR, Manually assignable using CBR

Image Settings

ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic Range, Sharpness adjustable using CMS or IE web interface

Audio Compression

n/a

Region of Interest (ROI)

Up to 8 Areas

Interfaces



Network

10/100M RJ-45 Ethernet Interface

Audio

n/a

Video Output

n/a

Local Storage

n/a

RS-485

n/a

Alarm Input / Output

n/a

Operations



Remote Monitoring

Internet Explorer or CMS Software

Remote Connections

Up to 10 concurrent remote connections

Network Protocols

TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP

Compatibility

ONVIF Profile S (2.3)

Smart Alarm

Motion Detection

Smart Analysis

Object removal, line crossing and perimeter intrusion detection

PTZ Control

n/a

IR Distance

Up to 20m (66’)

Ingress Protection Rating

IP66, IK10

General



Power Requirement

DC12V or PoE (802.3af)

Power Consumption

Max 4W (IR on)

Dimension

Ø4.6” x 3.6”

Weight

~1.3lbs

Working Environment

-4°F ~ 122°F, Humidity ≤ 90% RH(non-condensing)



Clear IPX3 Datasheet



    • SKU
      CLR-IPX3
    • Weight
      5 lbs
  • Manufacturer
    CLEAR
  • Camera Type
    Dome
  • Camera Signal
    IP
  • Camera Resolution
    2592 x 1520
  • Lens Size
    3.6mm
  • Optical Zoom
    Fixed Lens
