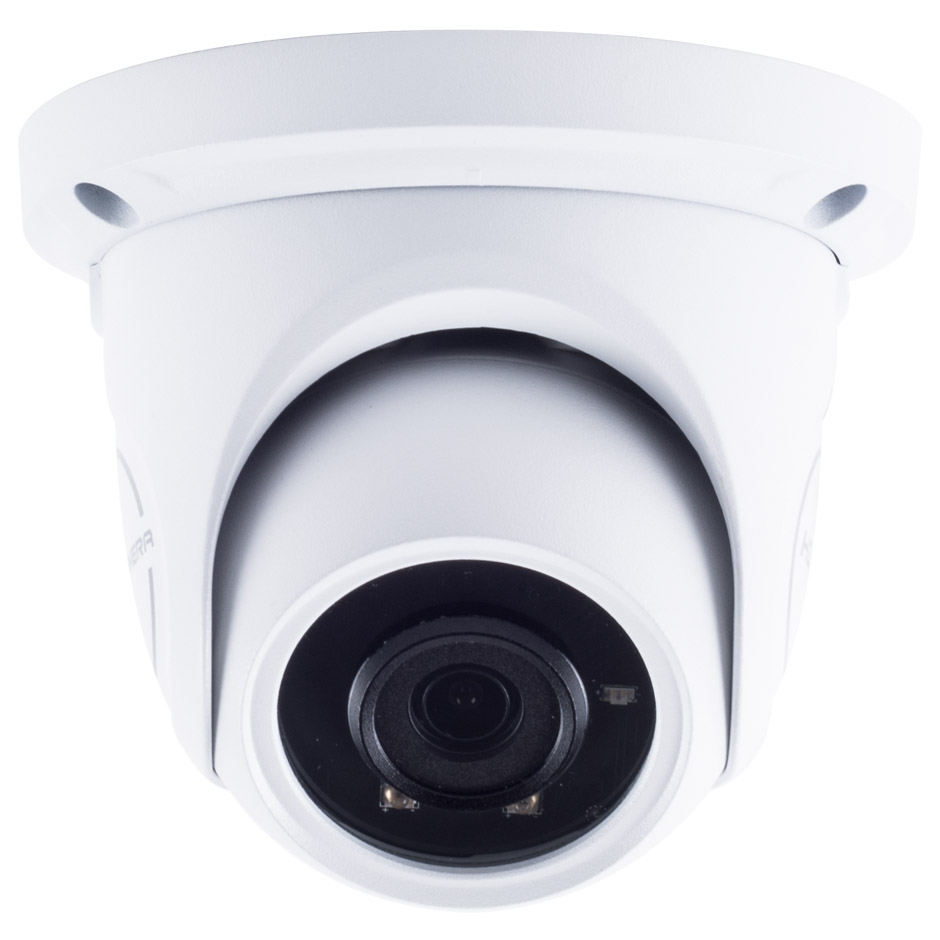

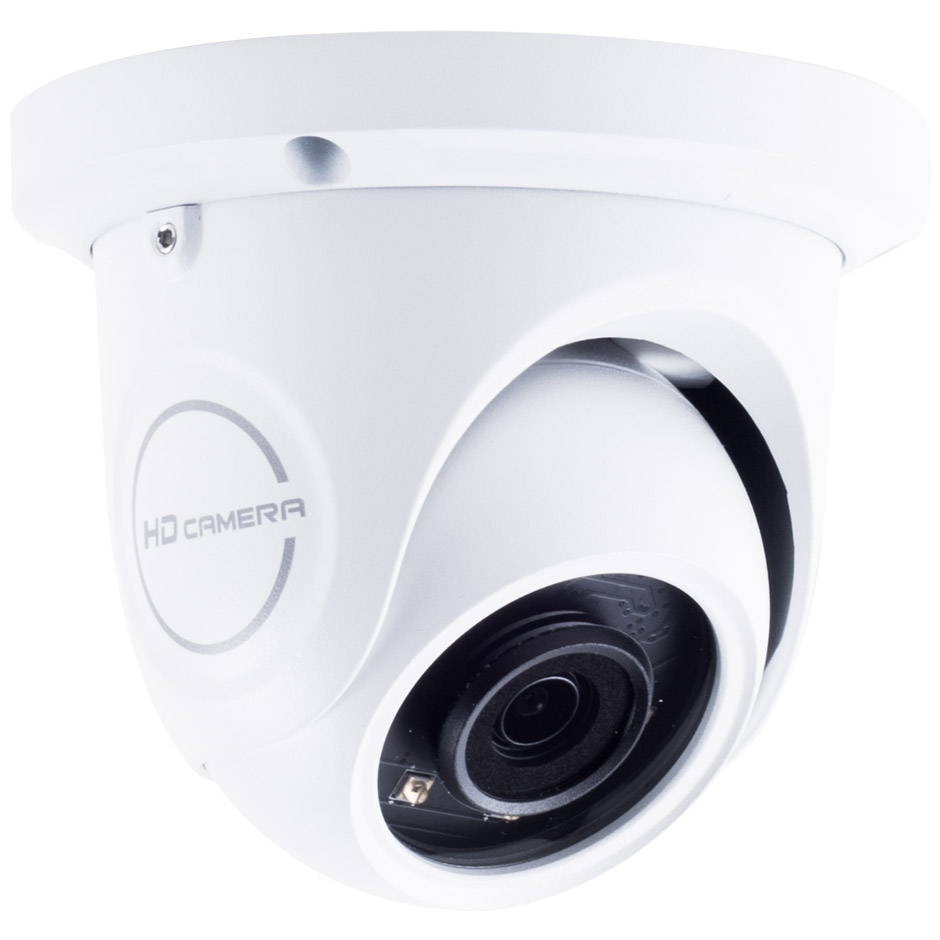

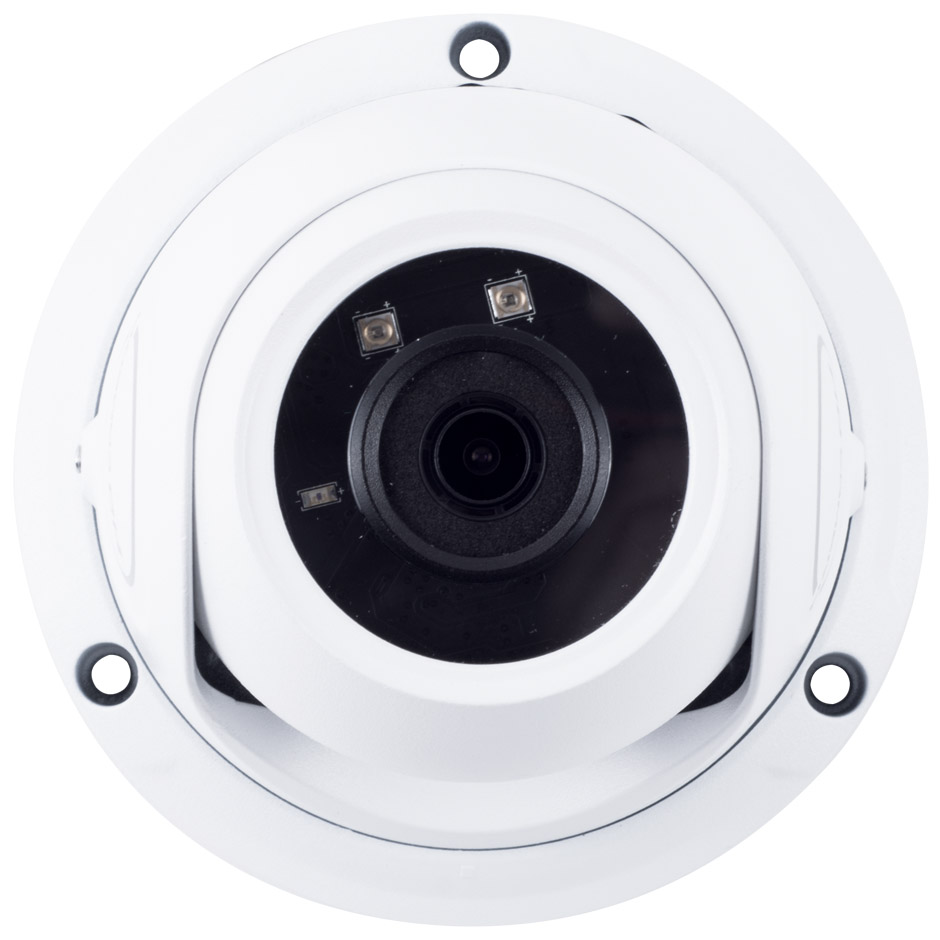

CLEAR 4MP Network IP Eyeball Dome Camera, 20M IR, H.265


$99.00


Availability: In Stock
List Price: $239.00
SKU: CLR-IPX2
Product #: 91299
Manufacturer:
Camera Type: Dome
Camera Resolution: 2592 x 1520
Camera Signal: IP
Optical Zoom: Fixed Lens

Quantity

  • 1/3” CMOS Image Sensor
  • 4 Megapixel (2592 x 1520) @20fps encoding
  • 3.6mm Fixed Lens
  • H.265 / H.264 / MJPEG Video Compression
  • Up to 20m (66’) IR distance
  • Smart Analysis (Perimeter Intrusion, Line Crossing and Object Removal)
  • Triple Stream Encoding
  • ONVIF Conformance
  • IP66 Ingress Protection Rating

4MP@20FPS/ h.264/h.265/MJPEG compression algorithm capable turret/eyeball 3 Axis indoor/outdoor IP camera. 12VDC and Built-In PoE. 3.6mm fixed lens. 20M IR Smart Analysis and triple stream capability. Control4 Drivers available.



Technical Specifications



CLR-IPX2

Camera

Sensor

1/3” 4 Megapixel CMOS Image Sensor

Effective Pixels

2592 x 1520

Electronic Shutter

1/25s ~ 1/100,000s

Iris Type

Fixed Iris

Minimum Illumination

Color: 0.05Lux @F1.2 (AGC on) / 0Lux with IR on

Lens

3.6mm Fixed Lens

Angle of View (H)

Horizontal: 85°

Day/Night

IR-cut filter with auto switch (ICR)

Wide Dynamic Range

Digital WDR

Backlight Compensation (BLC)

n/a

Highlight Compensation (HLC

n/a

Defogging

n/a

Digital Noise Reduction

2DNR/3DNR




Video Compression

H.265 / H.264 / MJPEG

Resolution

4MP (2592 x 1520), 2K (2560 x 1440), 3MP (2304 x 1296), 3MP (2048 x 1536), 1080p (1920 x 1080), 720p (1280 x 720), D1, CIF, 480 x 240

Main Stream

60Hz: 4MP / 2K @ 1 - 20fps; 3MP / 1080p / 720p @ 1 - 30fps

Bit Rate

128Kbps - 8Mbps

Bit Rate Type

VBR or CBR

Quality

5 Levels using VBR, Manually assignable using CBR

Image Settings

ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic Range, Sharpness adjustable using CMS or IE web interface

Audio Compression

n/a

Region of Interest (ROI)

Up to 8 Areas

Interfaces



Network

10/100M RJ-45 Ethernet Interface

Audio

n/a

Video Output

n/a

Local Storage

n/a

RS-485

n/a

Alarm Input / Output

n/a

Operations



Remote Monitoring

Internet Explorer or CMS Software

Remote Connections

Up to 10 concurrent remote connections

Network Protocols

TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP

Compatibility

ONVIF Profile S (2.3)

Smart Alarm

Motion Detection

Smart Analysis

Object removal, line crossing and perimeter intrusion detection

PTZ Control

n/a

IR Distance

Up to 20m (66’)

Ingress Protection Rating

IP66

General



Power Requirement

DC12V or PoE (802.3af)

Power Consumption

Max 6.5W (IR on)

Dimension

Ø3.4” x 4.2”

Weight

~1lbs

Working Environment

4°F ~ 122°F, Humidity ≤ 90% RH(non-condensing)

Clear IPX2 Datasheet
