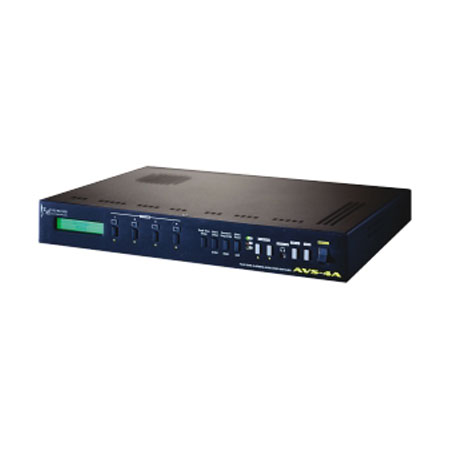

AVS-4A Louroe Electronics 4 Zone Switcher


$609.00


Availability: Out of Stock
List Price: $812.00
SKU: WECAVS-4A
Product #: 24109
Manufacturer: Louroe Electronics

Quantity

Four zone audio-follow-video switcher. It can accommodate up to four line level microphones and four cameras. Selectable for alarming or non-alarming and sequential switching or demand switching. Compatible with all Louroe microphones. AVS-4A can be equipped for 19" rack mount.

Specifications:

  • Model Number - AVS-4A
  • Input sensitivity - 0.78Vrms
  • Monitor power output - 1W @ 8ohm
  • Audio input impedance - 10kohm
  • Audio frequency response (flat) - 100Hz to 10kHz
  • Audio frequency response (enhanced) - -20dB @ 200Hz to +8dB @ 3kHz
  • Headphone impedance - 8 to 600ohm
  • Dwell time - 1 to 60 seconds
  • Alarm hold time - 4 seconds to 60 minutes
  • Video input sensitivity - 1 Vp-p at 75ohm
  • Video output sensitivity - 1 Vp-p at 75ohm
  • Relay output - 1A @ 30VDC
  • AC adapter output - 15VDC @ 1A
  • Power consumption - 10W
  • Weight - 7.5lbs
  • Dimensions - 10 1/4"L x 15"W x 2"H
