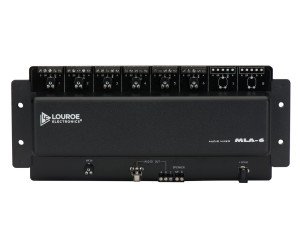

Louroe MLA-6 Microphone Audio Mixer
        • Louroe MLA-6 Microphone Audio Mixer
        • Louroe MLA-6 Microphone Audio Mixer

        Louroe MLA-6 Microphone Audio Mixer

        SKU: LE-111
        Louroe Electronics
        SKU: LE-111
        • Six channel audio mixer (6-into-1)
        • Powered via base station or discrete power supply
        • 10db of Gain
        • Volume potentiometer for each channel
        • Effectively increases the audio pickup area without the need for muliple audio inputs on the base station, DVR, IP Camera, etc.
          • 40% less
          Market price:$374.50 save $149.46
        • $225.04

        OR
        • Six channel audio mixer (6-into-1)
        • Powered via base station or discrete power supply
        • 10db of Gain
        • Volume potentiometer for each channel
        • Effectively increases the audio pickup area without the need for muliple audio inputs on the base station, DVR, IP Camera, etc.
        • Allows for zone expansion by combining six or eight microphones or four speaker/microphones
        • Powered from the Louroe Base Station or ext power supply
        • Potentiometers for adjusting microphone outputs
        • Mounting holes for securing to wall or flat surface

        MLA-6 is a passive mixer for combining six microphones, or six speaker/microphones to one audio monitoring zone. It is mounted between the microphones and the Louroe Base Station. It has adjustment knob for microphone balance.The microphones are combined for zone expansion and are not on separate channels. The MLA-6 is powered by the Louroe Base Station.

        Model MLA-6 and MLA-8 are 6 zones and 8 zones respectively audio mixers used for combining six ands eight Louroe microphones or speaker/microphones for the purpose of expanding the area to be audio monitored. It has an input side (terminal block) for accepting the six or eight microphones and an output side (terminal block) for home running back to a Louroe audio base station or to other audio receiving devices. The unit contains potentiometers for adjusting the audio output from each zone and a main potentiometer for adjusting the combined outputs of all the microphones. Both units receive power from the Louroe base station or external power supply.

        Dimensions:
        11.5″ L x 4.75″ W x 1.5″ H

        SPECIFICATIONS
        Input Impedance18 Kw
        OutputLine level (0dBV W , 1kW @1 kHZ +10dB max gain adjustable
        Frequency Response100 Hz to 10 kHz
        Current Drain25 mA
        Voltage Supply12 Vdc, 500 mA
        Dimensions11 1/2”L x 4 3/4”W x 1 1/2”H
        Weight10 oz
        Shipping Weight3 lbs
