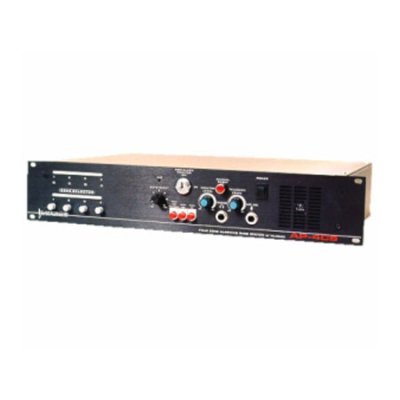

AP-4CS Louroe Electronics 4 Zone Push Button Activated Alarming Audio Base Station


Availability: In Stock
List Price: $2,250.00
Product #: 23846


Models AP-4CS is a four zone alarming base station that is activated by a contact closure from a remote pushbutton, motion detector, door contact, etc. that provides 12Vdc. When activated an LED is illuminated, identifying the zone in alarm, along with a 3 second beep to draw the operator’s attention. Each zone has a NO/NC dry contact for activating a camera, etc. It has a built-in microphone and speaker for providing one-way listen or bi-directional audio when interfaced with compatible Louroe Call Stations Model DCS-12V, DCSM-12V, TLMC-12V, TLSP-PB-12V, and RCS-2-12V. It also has automatic and manual alarm reset.


  • Model Number - AP-4CS
  • Operating temperature range - +32F to 122F
  • Input impedance (zone) - 10ohm
  • Monitor frequency response - 100Hz to 10kHz
  • Output impedance (recorder) - 600ohm
  • Input impedance (headphone) - 8 to 600ohm
  • Monitor output power - 1W into 8ohm
  • Talkback amplifier output - 20W into 70V line
  • Power supply input - 120VAC, 1A, 60Hz
  • Dimensions - 19"W x 3 1/2"H x 12 1/4"D
  • Weight (net) - 14lbs
