Louroe 2-Zone Manual Audio Monitoring Base Station

        Louroe 2-Zone Manual Audio Monitoring Base Station

        SKU: LE-432
        Louroe Electronics
        SKU: LE-432
        • Two zone audio monitoring base station
        • Push button for selected zone listening
        • 3″ speaker for monitoring live audio and playback from a DVR
        • Line level audio output (RCA) to DVR
        • 3.5mm headphone jack for private listening
        • May be located up to 1000′ from the Louroe microphone
          • 33% less
          Market price:$467.86 save $152.99
        • $314.87

        OR
        • Two zone audio monitoring base station
        • Push button for selected zone listening
        • 3″ speaker for monitoring live audio and playback from a DVR
        • Line level audio output (RCA) to DVR
        • 3.5mm headphone jack for private listening
        • May be located up to 1000′ from the Louroe microphone
        • Audio output (RCA) to DVR, VCR
        • Lighted zone and playback/mute switches
        • 3" speaker for monitoring live audio and playback from a DVR or VCR
        • 3.5 mm headphone jack for private listening
        • Has Mute switch to prevent audio from being heard at the unit speaker
        • 2 Line level microphone outputs

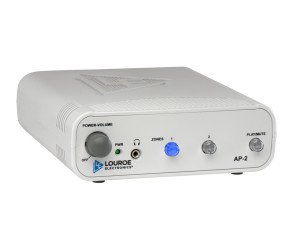

        AP-2 is a two zone audio monitoring base station. It contains two audio inputs (terminal blocks) for connecting up to two Louroe microphones for live monitoring and has two audio outputs (RCA type) for connection to a DVR with multiple audio inputs. The AP-2 also contains a selectible audio output (RCA) for connection to a VCR or to a DVR with only one audio input. An audio input (one) is available for audio playback from the DVR or VCR. A built-in speaker provides live audio and playback audio. For the rackmount version, request model AP-2-RM.

        The AP-2 is a two-zone audio base station. It is designed for audio monitoring and interfacing with DVR’s, VCR’s or other audio devices that accept line level input. The unit is a desk top audio base station that contains a 3" speaker for monitoring live audio and playback from a DVR or VCR. AP-2 will accommodate 2 microphones and zone selection is by pushbutton. Contains Mute/Playback switch that mutes audio from remote microphones.

        Dimensions:
        6.625″W x 8.625″ L x 2.125″ H
        • Model AD-1 12Vdc power supply
        • Dual RCA cables for connection to DVR/VCR
        APPLICATION
        The AP-2 is designed for numerous applications such as:
        • Convenience Stores
        • Fast Food Restaurants
        • Booking Rooms
        • Interrogation Rooms
        • Car dealership sales contract rooms
        • Child Abuse Interviews
        • Sleep Disorder Centers
        • Speech Therapy Labs
        • Cashier Booths
        • Day Care Centers
        SPECIFICATIONS
        Monitor power output1W @ 8W
        Audio output impedance1KW
        Audio input impedance10kW
        Freq. response100 Hz to 10kHz
        Headphone impedance8 to 600W
        Current Drain200mA
        Power input12 Vdc, 500mA
        Dimensions6 5/8"W x 8 5/8"L x 2 1/8"H
        Weight1lb 5 oz
        Shipping Weight3 lbs

        ap_2_inst_2_15.pdf

        AP_2_specs_2_15.pdf
