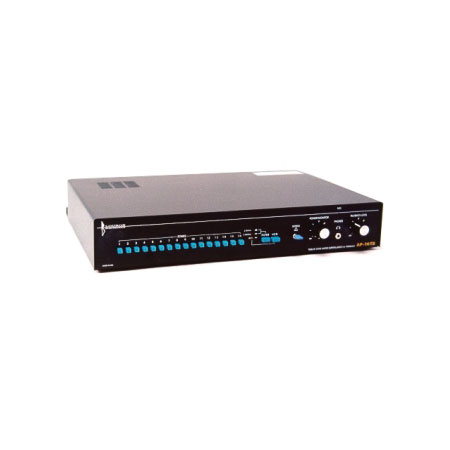

AP-16TB Louroe Electronics 16 Zone Audio Monitoring Base Station


Availability: In Stock
List Price: $1,376.00
Product #: 23842


Model AP-16TB is a sixteen zone non-alarming audio monitoring base station with listen and talkback. As a system (with Louroe speaker/microphones), it provides live audio monitoring from sixteen zones, one at a time, with a built-in 3" speaker. and a built-in microphone for talkback to the remote area. Zone selection is by push button. Model AP-16TB is designed to interface with a 24 hour time-lapse recorder. Special filtering enhances the sound quality of audio during playback. Distance between AP-16TB and speaker/microphones can be up to 1,000'. Model AP-16TB is a desk top model, or can be equipped for 19" rack mounting.


  • Model Number - AP-16TB
  • Input Sensitivity (from remote mic) - 0.78Vrms
  • Input Sensitivity (talk back microphone) - -55dB
  • Monitor Power Output - 1.5W @ 8ohm
  • Talkback Power Output - 1.5W @ 70V line
  • Audio Line Output Impedance - 600ohm or higher
  • Audio Input Impedance - 10kohm
  • Audio Frequency Responce (flat) - 100Hz to 10kHz
  • Audio Frequency Responce (enhanced) - -20dB @ 200 Hz to +5dB @ 3kHz
  • Headphone impedance - 8 to 600ohm
  • Switch Closure Rating - 100mA ohm
  • Power Input - 24VDC, 1A
  • Dimensions - 12 1/2"D x 15"W x 2 3/4"H
  • Weight - 10Lbs (4.5 Kg)
