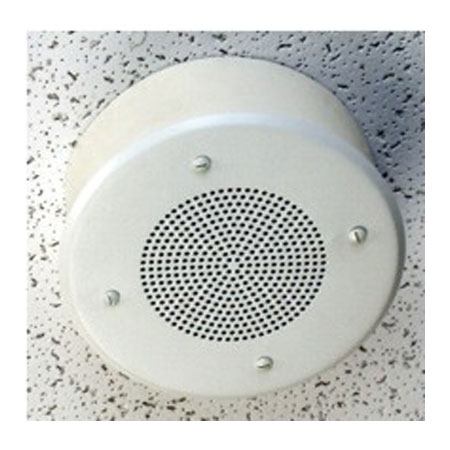

AOP-SP-CS Louroe Electronics Bi-directional Speakerphone Surface Mount


Availability: In Stock
Product #: 23946


Model AOP-SP-CF and AOP-SP-CS are ceiling mount speakerphones designed to interface with various modes of audio/video transmission systems. They provide bi-directional audio with the receiving source (DVR, PC soundcard, IP Network cameras with audio, and video servers with audio). Both AOP-SP-CF and AOP-SP-CS contain a built-in electret condenser microphone and a 4" speaker. Also control potentiometers for adjusting the sensitivity of both transmitted and received audio. AOP-SP-CS is for Surface mounting to a ceiling.


  • Model Number - AOP-SP-CS
  • Microphone output - line level (0dB @ 1Kohm) unbalanced
  • Microphone element sensitivity - -60dB
  • Microphone frequency response - 40Hz - 10kHz
  • Microphone current drain (standby) - 60mA
  • Microphone current drain (maximum) - 250mA
  • Speaker power output - 5W
  • Speaker impedance - 8ohm
  • Speaker magnet - 3 oz. ceramic
  • Speaker size - 4"
  • Power supply - 12-15 VDC
  • Weight w/ MR-8 - 5lbs
