AL600ULACMCB Altronix 8 PTC Protected Fail-Safe and/or Fail-Secure Class 2 Rated Outputs 12VDC or...

        AL600ULACMCB Altronix 8 PTC Protected Fail-Safe and/or Fail-Secure Class 2 Rated Outputs 12VDC or 24VDC

        Altronix
        SKU:  AL600ULACMCB

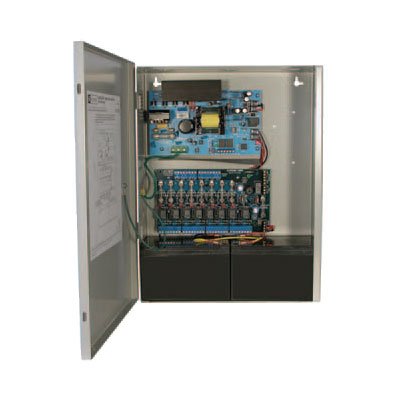

        Altronix offers a complete line of Safety and Security, Fire, CCTV, Access, Nurse Call, and Automation products. The model has Eight (8) independently controlled PTC protected outputs. The main features are Class 2 Rated power limited outputs.12VDC or 24VDC @ 6 amp supply current.ACM8 board main fuse is rated at 10 amp. Input 115VAC 60Hz rated @ 1.9 amp. Filtered and electronically regulated outputs (built-in power supply) The Red LEDs indicate outputs are triggered (relays energized). The Green LED indicates when FACP disconnect is triggered. Built-in charger for sealed lead acid or gel type batteries. The Automatic switch over to stand-by battery when AC fails.AC input and DC output LED indicators. Zero voltage drop when unit switches over to battery backup (AC failure condition).Short circuit and thermal overload protection.AC fail supervision (form "C" contact).Enclosure accommodates up to two (2) 12AH batteries. The AL600ULACM / AL600ULACMCB converts an 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 6 amp continuous supply current. These power outputs can be converted to dry form "C" contacts (AL600ULACM only). Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. These units will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. The units are designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power
          • 25% less
          Market price:$560.00 save $140.00
        • $420.00

        OR
        Altronix offers a complete line of Safety and Security, Fire, CCTV, Access, Nurse Call, and Automation products. The model has Eight (8) independently controlled PTC protected outputs. The main features are Class 2 Rated power limited outputs.12VDC or 24VDC @ 6 amp supply current.ACM8 board main fuse is rated at 10 amp. Input 115VAC 60Hz rated @ 1.9 amp. Filtered and electronically regulated outputs (built-in power supply) The Red LEDs indicate outputs are triggered (relays energized). The Green LED indicates when FACP disconnect is triggered. Built-in charger for sealed lead acid or gel type batteries. The Automatic switch over to stand-by battery when AC fails.AC input and DC output LED indicators. Zero voltage drop when unit switches over to battery backup (AC failure condition).Short circuit and thermal overload protection.AC fail supervision (form "C" contact).Enclosure accommodates up to two (2) 12AH batteries. The AL600ULACM / AL600ULACMCB converts an 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 6 amp continuous supply current. These power outputs can be converted to dry form "C" contacts (AL600ULACM only). Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. These units will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. The units are designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.Altronix offers OEM design and manufacturing services to create custom electronics for commercial and industrial applications and The power products and peripherals, feature the quality, reliability and unparalleled customer support that have been associated with Altronix for over 30 years. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency. New additions to our 2015 line include adaptive transmission products that facilitate network connectivity and system expansion, utilizing legacy, as well as state of the art system technology.
          • SKU
            AL600ULACMCB
          • Weight
            4 lbs
        • Manufacturer
          Altronix
        • UPC
          782239934096
