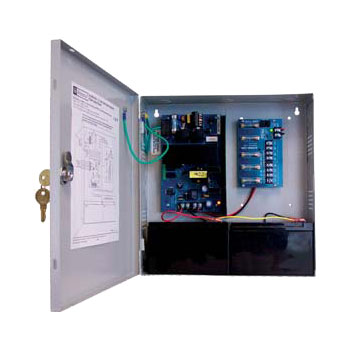

AL300ULPD4 Altronix Multi-Output Power Supply/Charger 12VDC or 24VDC @ 2.5 Amp

        AL300ULPD4 Altronix Multi-Output Power Supply/Charger 12VDC or 24VDC @ 2.5 Amp

        Altronix
        SKU:  AL300ULPD4
        Altronix offers a complete line of Safety and Security, Fire, CCTV, Access, Nurse Call, and Automation products. The AL300ULPD4 is a multi-output power supply/charger that converts a 115VAC/60Hz input into four (4) Class 2 Rated 12VDC or 24VDC power limited outputs. Input: Input 115VAC, 60Hz, 3.5 amp. Input fuse rated @ 3.5 amp/250V. Output:12VDC or 24VDC selectable output. Burglar Alarm Applications (UL 603): 12VDC = 10VDC-13.2VDC. 24VDC = 20VDC-26.4VDC.and 12VDC or 24VDC @ 2.5 amp supply current. The Four (4) Class 2 Rated fuse protected power limited outputs. The Outputs are rated @ 3.5 amp. Filtered and electronically regulated outputs and Short circuit and thermal overload protection. Battery Backup: Built-in charger for sealed lead acid or gel type batteries. The Automatic switch over to stand-by battery when AC fails. The Maximum charge current 0.7 amp. Supervision The AC fail supervision (form “C” contacts). - Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form “C” contacts). Battery presence supervision (form “C” contacts). The visual Indicators: AC input, DC output and Battery LED indicators. The Electrical: Operating temperature: 0º C to 49º C ambient. BTU/Hr. : 12VDC: 14.71 - 16.63 BTU/Hr. 24VDC: 29.43 - 32.41 BTU/Hr. The System AC input VA requirement: 402.5VA
          • 25% less
          Market price:$316.00 save $79.00
        • $237.00

        OR
        Altronix offers a complete line of Safety and Security, Fire, CCTV, Access, Nurse Call, and Automation products. The AL300ULPD4 is a multi-output power supply/charger that converts a 115VAC/60Hz input into four (4) Class 2 Rated 12VDC or 24VDC power limited outputs. Input: Input 115VAC, 60Hz, 3.5 amp. Input fuse rated @ 3.5 amp/250V. Output:12VDC or 24VDC selectable output. Burglar Alarm Applications (UL 603): 12VDC = 10VDC-13.2VDC. 24VDC = 20VDC-26.4VDC.and 12VDC or 24VDC @ 2.5 amp supply current. The Four (4) Class 2 Rated fuse protected power limited outputs. The Outputs are rated @ 3.5 amp. Filtered and electronically regulated outputs and Short circuit and thermal overload protection. Battery Backup: Built-in charger for sealed lead acid or gel type batteries. The Automatic switch over to stand-by battery when AC fails. The Maximum charge current 0.7 amp. Supervision The AC fail supervision (form “C” contacts). - Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form “C” contacts). Battery presence supervision (form “C” contacts). The visual Indicators: AC input, DC output and Battery LED indicators. The Electrical: Operating temperature: 0º C to 49º C ambient. BTU/Hr. : 12VDC: 14.71 - 16.63 BTU/Hr. 24VDC: 29.43 - 32.41 BTU/Hr. The System AC input VA requirement: 402.5VA. The Mechanical Enclosure Dimensions (H x W x D approx.): 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm) - Accommodates up to two (2)12VDC/7AH batteries. The Product weight (approx.): 8.45 lbs. (3.83 kg) and Shipping weight (approx.): 9.35 lbs. (4.24 kg). A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency. New additions to our 2015 line include adaptive transmission products that facilitate network connectivity and system expansion, utilizing legacy, as well as state of the art system technology. Altronix offers OEM design and manufacturing services to create custom electronics for commercial and industrial applications and The power products and peripherals, feature the quality, reliability and unparalleled customer support that have been associated with Altronix for over 30 years.
          • SKU
            AL300ULPD4
          • Weight
            4 lbs
        • Manufacturer
          Altronix
        • UPC
          782239936076
