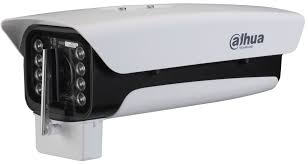

Dahua DH-PFH610 Outdoor Housing With 50~100m IR and Wiper


$180.00


Availability: In Stock
List Price: $342.00
SKU: DH-PFH610-IR-W
Product #: 88239
Manufacturer:

Quantity

Model DH-PFH610N-IR-W
General
Material Aluminum(case) & PC(others)
Product Dimension 404mm(L) x 164mm(W) x 175mm(H)
Inside Dimension 255mm(L) x 90mm(W) x 70.5mm(H)
215mm(L) x 90mm(W) x 83mm(H)
Window Dimension Φ50mm
Operating Temperature Set -40ºC ~60ºC
Heater ON:5±5 ºC /OFF:15±5 ºC
Cooler ON:37±5 ºC /OFF:20±5 ºC
ON:5±5 ºC /OFF:15±5 ºC
Ingress Protection IP66
Humidity ≤90% RH
IR Distance 50&100m
Wiper Yes
Weight 3.0Kg
Power Supply AC24V 5A
Applicable Model Please see “Accessory Selection”

There have been no reviews

Mobile APPs


HOW TO ACCESS SYSTEM USING P2P VIA MOBILE APPLICATION

View your recorder and cameras on the go. The Mobile Application IDMSS (IOS) / GDMSS (Android) allows you to add IMAXPRO recorders and cameras to the mobile app using P2P.

PREREQUISITES

- Smartphone (IOS device or Android)

- IDMSS/GDMSS already downloadedin your mobile device.

- P2P must be turned on from the recorder and connected to a network with internet access.



STEP BY STEP INSTRUCTION

(VERSION 4.50.000)



1. Open iDMSS/gDMSS on the phone, and select the home icon located on the top left corner.



2. Select the "Device" button/icon on the bottom to add the recorder/camera.

3. Select the "+" sign then select "Scan" to add the device.

4. Select the Device you want to Connect (If you have a wired Camera, Please choose Wired Camera).





5. Input the device for easy identification. It's required to input the password for the added device then select the save icon located on the top right corner.
