UNV Uniview 4 Ch NVR & (4) HD 4 Megapixel IR Mini Bullet Kit for Business Professional Grade
SKU: UNV-4CH-NVR-IPC2124SR3-KitEspecially crafted and designed for business owners who have a deep sense of responsibility and security over their territory, this NVR is equipped with various PREMIUM quality features. The kit includes 4 IR night vision enabled bullet security cameras fit for outdoor use and records footage in 2 MP resolution! The HQ footage is all automatically recorded on the NVR and you can access all that with a smartphone device or computer. The kit is included with 4 CAT5 network cables. You can also purchase a monitor if you don’t have one. You can install a HDD worth 6 TB of storage.
It also has numerous recording and playback options and ones for scheduling recording. The H.264 compressing feature helps in keeping the quality of your footage in tip top shape but decreasing the size of the file so as you can use and keep numerous files. Enable the push alert notifications and automatically receive an email whenever a sudden movement is captured on tape. Also you can control the positioning of your camera with the PTZ controls on this NVR. You have a free 3 year warranty on this product.
This kit includes four dome security camera with IR night vision. It records high definition footage in 4mp resolutions and it is approved for outdoor use. All footage is recorded onto the included NVR and can be monitored remotely via mobile device or computer. The kit also includes the necessary CAT5 network cables and free monitoring software.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
How to Program Your Uniview EZView App on Your Mobile Device
The most cost effective professional grade solutions from Uniview. The 4ch NVR and 4MP mini bullet camera kit can support high resolution live view and playback up to 4K(4000x3000). This NVR supports 1-8TB surveillance hard drives for increased storage and efficiency. All cameras are equipped with the latest Ultra 265 Video codec for reduced storage needs without losing any video quality. The NVR is integrated with a 4 port PoE switch to provide the connected cameras both power and data up to 928ft. (with extended transmission enabled)
This kit includes four 4MP mini bullet security cameras with 98ft of SmartIR night vision. It records high definition footage in 4MP (2K) resolution and is both outdoor and vandal rated. All footage is recorded onto the included NVR and can be monitored remotely via mobile device or computer.

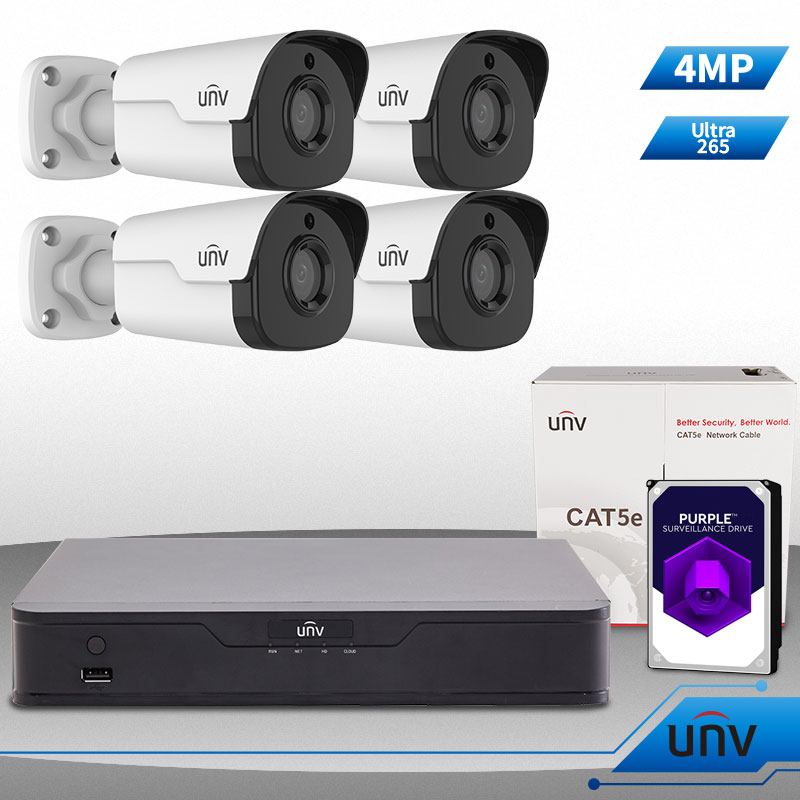

What’s Included:
· (1) 4 Ch, 4 Poe, 4K NVR
· (4) Uniview 4 Megapixel Mini Bullet IP Camera
· 1TB Surveillance Hard Drive
· 4x 100ft Cat5e Cables
· Free mobile apps and monitoring software
· Free lifetime technical support
· Free 3 Year Warranty
·HDMI & VGA Ports: Take full advantage of high definition video by using either HDMI or VGA cables.
·Remote Monitoring through our Free Apps: Download our free apps and view live footage and recordings right on your compatible smartphone or tablet.
·PC and Mac Compatible: Take advantage of the flexibility that our systems offer and review your recordings from any Mac or PC.
·Easy Backup Options: Save footage directly to a USB flash drive or to your PC in seconds flat. Options are also available to backup footage simultaneously to external SATA drives or FTP servers on your network, in the case that your main HDD should fail.
Highlighted Features
U.265 Compression
By combining U-Code and H.265, Ultra 265 can squeeze up to 95% bandwidth and storage space.
Unlike conventional video compression technologies which tries to reduce storage costs by sacrificing resolution and frame rate indiscriminately, U-Code chooses to use "IRP" (Intelligent Region Perception) to detect motion in each frame. Hence, scenes containing interesting information could be preserved while the other relatively static area such as lawns, white walls could be squeezed to save storage.Cloud Upgrade
If your NVR is connected to a network with Internet access, you may utilize the Internet cloud update feature to check online to see if a new version is available and to perform the update.
Bring up the main menu by right-clicking with the mouse or left-clicking on the Home icon on the menu bar (if available). Using the mouse, left-click on Maintain and then Upgrade and then select the tab entitled Upgrade by Cloud. You will be shown the current version of firmware installed on the NVR and can click on the Check button at the bottom to see if a more recent version is available. If a new version is available, you need only to click on the Upgrade button at the bottom and the download and upgrade process will begin. After updating, the NVR will automatically reboot.
Smart Playback
In normal search, you had to take hours to search the whole playback bar to find the desired video clip.In smart search, specify an interesting area and do smart search, it only takes seconds to find the desired video clip
Mobile App Push Notifications
Push Alerts & Automatic E-mails: Setup your Universal DVR/NVR to automatically send you an e-mail alert or a Push Notification, with video clip, every time there is a motion triggered or alarm event. This enables you to quickly take action when an incident has occurred
E-Map Function
The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of re positioning your cameras to achieve the desired viewing space.
**There are NO contracts or monthly fees with any WorldEyeCam purchase**
Model | NVR301-04-P4 |
---|---|
Video/Audio Input | |
IP Video Input | 4-ch |
Network | |
Incoming Bandwidth | 40Mbps |
Outgoing Bandwidth | 64Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output | |
HDMI/VGA Output | HDMI: 3840x2160p /30hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Audio Output | 1-ch, RCA |
Synchronous Playback | 4-ch |
Corridor Mode Screen | 3/4 |
Decoding | |
Decoding format | Ultra 265/H.265/H.264 |
Live view/ Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 1 x 4K@30fps, 2x 4MP@30FPS, 4 x 1080P@30, 4 x 720P@30 |
Hard Disk | |
SATA | 1 SATA interface |
Capacity | Up to 8TB for each HDD |
External Interface | |
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
USB Interface | Rear panel:2 x USB2.0 |
PoE | |
4 independent 100 Mbps PoEnetwork interfaces | 2.4GHz |
Max Power | Max 30W for single port. Max 54W in total ( 13.5W for each ) |
Supported Standards | IEEE 802.3at, IEEE 802.3af |
General | |
Power Supply | 48V DC Power Consumption: ≤ 5 W( without HDD ) |
Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
Dimensions(W×D×H) | 260mm ×240mm × 44mm (10.2" × 9.4"× 1.7") |
Weight ( without HDD ) | ≤ 1.12Kg(2.47lb) |

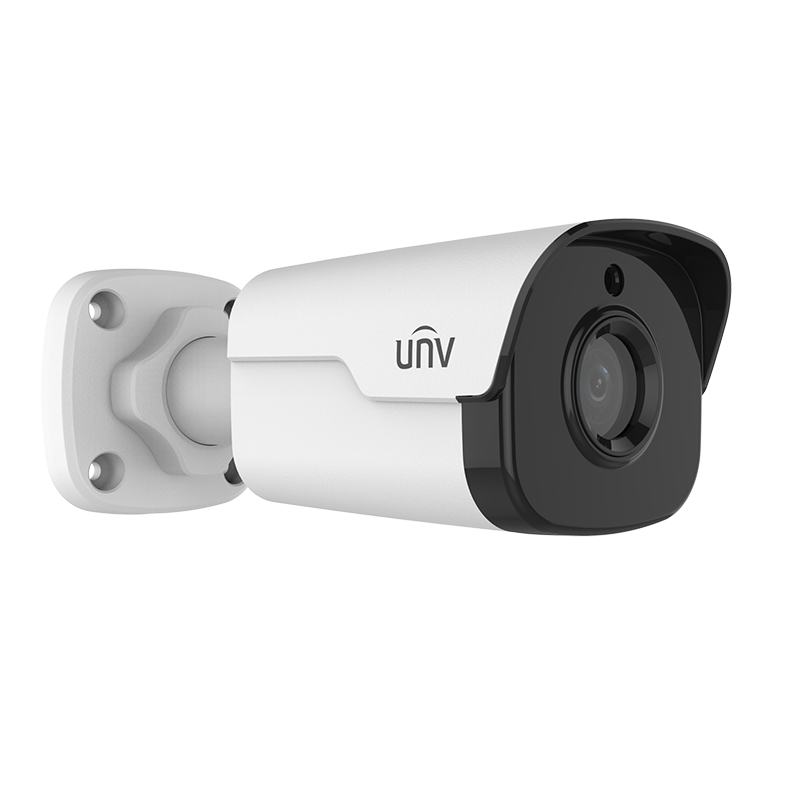

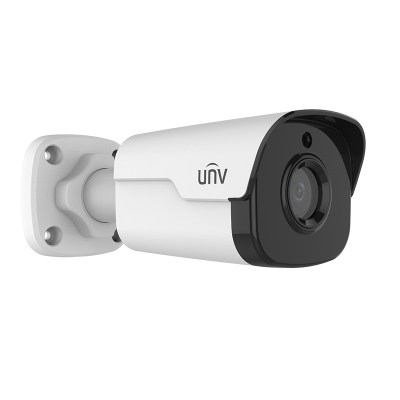

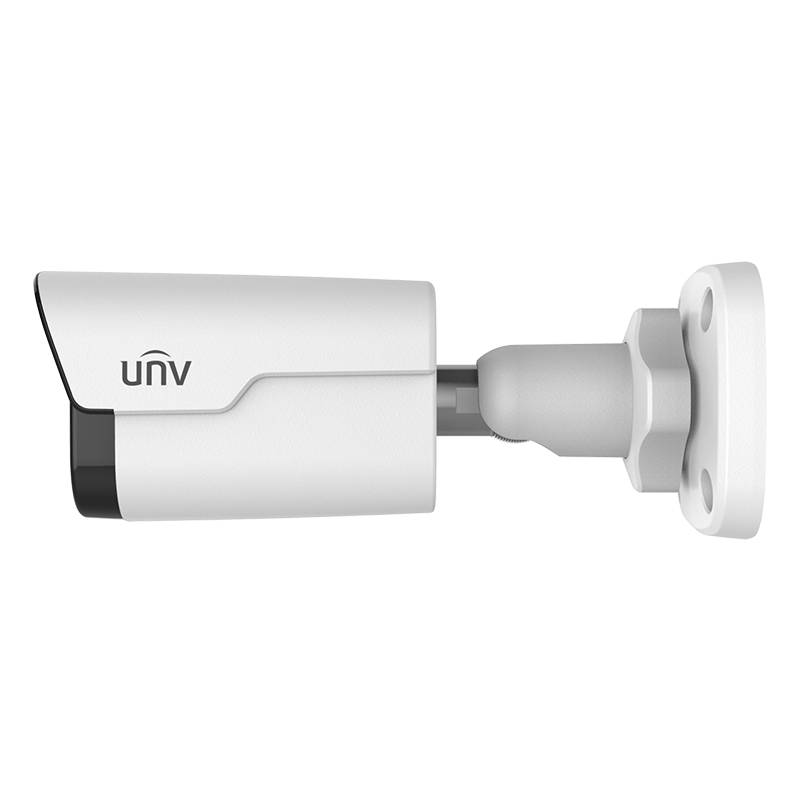

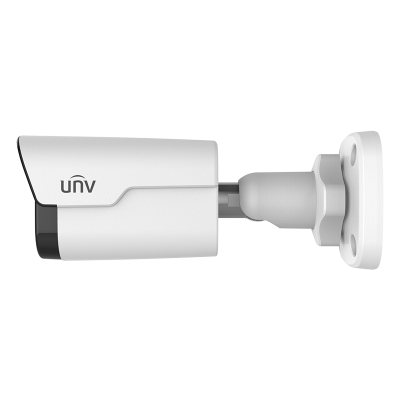

Model | IPC2124SR3-DPF36 |
Camera | |
Sensor | 1/3", progressive scan , 4.0 megapixel, CMOS |
Lens | 3.6 mm@F2.0 |
DORI Distance | Lens: 3.6mm: Detect (81m), Observe (32.4m), Recognize (16.2m), Identify (8.1m) |
Angle of View (H) | 86.4° |
Angle of View (V) | 43.6° |
Angle of View (O) | 112.3° |
Adjustment angle | Pan: 0°~360°; Tilt: 0°~90°; Rotate: 0°~360° |
Shutter | Auto/Manual, 1/1~1/100000 s |
Min. Illumination | Colour: 0.02 Lux (F2.0, AGC ON) 0 Lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Digital noise reduction | 2D/3D DNR |
S/N | >55dB |
IR Range | Up to 30m (98 ft) IR range |
Defog | Digital Defog |
WDR | 120dB |
Video | |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
H.264 code profile | Baseline profile, Main Profile, High Profile |
Frame Rate | Main Stream: 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps; 3MP (2048×1520): Max. 30 fps Sub Stream: 2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps |
9:16 Corridor Mode | Supported |
HLC | Supported |
BLC | Supported |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 8 areas |
ROI | Up to 8 areas |
Motion Detection | Up to 4 areas |
General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication, |
Storage | |
Edge Storage | Micro SD, up to 128 GB |
Network Storage | ANR |
Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, |
Compatible Integration | ONVIF(Profile S), API |
Interface | |
Network | 1 RJ45 10M/100M Base-TX Ethernet |
Audio I/O | n/a |
Alarm I/O | N/A |
General | |
Power | 12 V DC(+/-25%) Power consumption: Max 6W |
Dimensions (Ø x H) | 157.3 x 62.4 x 63 mm (6.2” x 2.5" x 2.5”) |
Weight | 0.45 kg (0.99 lb) |
Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~90% RH(non-condensing) |
Ingress Protection | IP67 |
Vandal Resistant | IK10 |
- ManufacturerUniview
- Camera TypeBullet
- Camera SignalIP
- Camera Resolution4 Megapixel
- Lens Size3.6mm
- Optical ZoomFixed Lens
- Shipping Lead TimeShips Same Day
- Lens TypeWDR
- Infrared Distance30m (98 ft)
- Number of Channels4 Channels
- Recorder TypeNVR (with POE Ports)
- HDD Storage1TB SATA HDD, 2TB SATA HDD, 3TB SATA HDD, 4TB SATA HDD, 6TB SATA HDD, 8TB SATA HDD, I have my own SATA HDD
- NVR UpgradeNone, 8CH NVR301-08-P8
- Network cables and others4 x 100' CAT6 pre-made cables, 4 x 50' CAT6 pre-made cables, 4 x 150' CAT6 pre-made cables, 4 x 200' CAT6 pre-made cables, 4 x 300' CAT6 pre-made cables, 1000' CAT5 spool cable + 1 pack 100 pcs. RJ45 Modular Plugs + Crimping Tool, 1000 ft. CAT6 spool black cable, Non UL + 1 pack 100 pcs. RJ45 Modular Plugs + Crimping Tool, I have my own network cables
- MonitorI Will Use My Own Monitor, 22" LCD Flat Panel, 24" LCD Flat Panel
- NVR and Cameras Warranty3 Year Warranty Included
- Remote Login SupportNo Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
