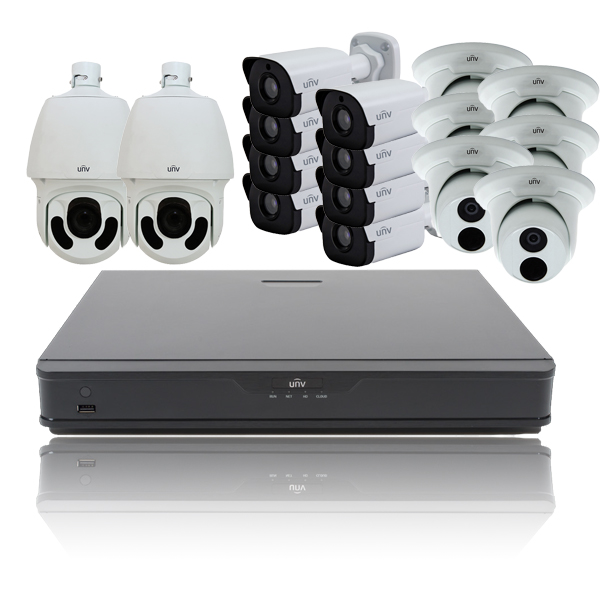

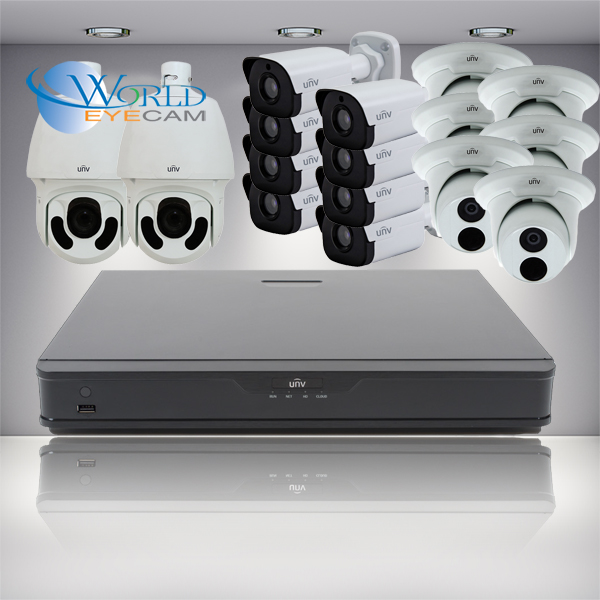

Uniview 16 Ch NVR with (2) 20x Zoom PTZ Cameras, (8) 4MP Bullet Cams and (6) 4MP Dome Cams Kit


Please login or register to see price
Availability: In Stock
SKU: NVR302-16E-IPC6222ER-X20-UNV-P
Product #: 87772
Manufacturer:
Camera Type: Bullet

The UNV (Uniview) 4K UltraHD Recording Resolution Network Video Recorderbrings to you many features that include; 16 IP Chanel inputs as well as recording of 12 megapixels resolution and 16 100M PoE+ Ports. Other features include numerous multiple recording and playback options and 12 TB worth of HDD storage space. With these options you can schedule recordings on a given time or all around the clock.This NVR is ONVIF compliant!



The H.264 compressing feature helps in keeping the quality of your footage in tip top shape but decreasing the size of the file so as you can use and keep numerous files. The NVR also comes with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet like 1 to 2 Mbs. Enable the push alert notifications and automatically receive an email whenever a sudden movement is captured on tape. This helps you in quickly getting in to action whenever an incident happens.  Also you can control the positioning of your camera with the controls on this NVR.

The UNV (Uniview) 4K UltraHD Recording Resolution Network Video Recorder



Product Features



  • 16 IP Channel Inputs
  • 16 Independent 100M PoE+ Ports
  • 1 HDMI and 1 VGA Video Outputs
  • Up to 12 Megapixels resolution recording
  • Support H.265/H.264 video formats
  • 1 RJ-45 10/100/1000M Ethernet Interface
  • 2 SATA Interfaces for Internal Storage
  • ONVIF Complianth



Remote Monitoring

Central Monitoring System: Have more than one location? Well accessing each of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP address.

Playback and Recording

Multiple Playback and Recording Options: The multiple recording options allow you to set your Universal DVR/NVR to record on a set schedule, continuously around-the-clock, or to further conserve hard drive space: only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users, using the multiple playback features.

H.264 Compression

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising the image quality (compared to other compression standards, such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

H.265 Compression

H.265 Real-time Recording and Playback: H.265 is a step above H.264. In the world of technology, we all strive to move forward and advance--so here is our next offer in the world of saving space and slow internet speeds. H.265 can transfer HD video data (~720p) at half of the bandwidth then that of H.264 so that you can enjoy 2K and 4K videos even if you have slow internet(1~2Mbs). You get the same data quality as H.264 and the others, but compared you save 70~80% in bandwidth sources.

Push Alerts

Push Alerts & Automatic E-mails: Setup your Universal DVR/NVR to automatically send you an e-mail alert or a Push Notification, with video clip, every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.

E-map Function

E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of re positioning your cameras to achieve the desired viewing space.

PTZ Control

3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.

Custom System Design

Worldeyecam offers free consultations and system designs, so if the bundled kits don't have what you need, please do not hesitate to call us (1-888-211-2288) or send in a sales request or e-mail. We are open Monday through Friday at 8AM to 5PM Pacific time.





**There are NO contracts or monthly fees with any WorldEyeCam purchase**





SPECIFICATIONS
Model NVR302-16E-16P
IP Camera Inputs 16 Channels
Two-way Talk 1 Channel, RCA Mic / Speaker Interfaces
Display Interface 1 HDMI, 1 VGA
Display Resolution HDMI: 4K (3840 x 2160); 1920 x 1080; 1600 x 1200; 1280 x 720; 1280 x 1024; 1024 x 768
VGA: 1920 x 1080; 1600 x 1200; 1280 x 720; 1024 x 768
Display Split 1 / 4 / 8 / 9 / 16
Recording Resolution 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Incoming Bit Rate 160Mbps
Outgoing Bandwidth 320Mbps
Alarm Inputs 4 Channels
Relay Outputs 1 Channel
Synchronized Playback 4 x 12MP@20fps; 4 x 4K@30fps; 8 x 4MP@20fps; 16 x 1080p@30fps
Backup Media External USB or Network Download
Network interface 1 10/100/1000M RJ-45 Ethernet Interface
Remote Connections 128 Connections Maximum
HDD Interfaces 2 SATA interfaces
USB Interfaces 1 USB2.0 (Front), 1 USB3.0 (Rear)
Power Requirement 100 - 240 VAC
Power Consumption < 21W (Without HDD)
PoE Ports 16
PoE Power Max 30W for each port, 200W Total Power Budget
Operating Environment 14° - 131° Fahrenheit
Dimensions 380mm x 315mm x 49mm
Weight (without HDD) ~6lbs

There have been no reviews

UNV Support


Uniview Support
Support Home

Uniview Quick Links


Uniview Remote Access Guides


Note! To Download Software Enter The Following Information:
Username: wec
Password: WEC1234$

Software Downloads


Networking


EZStation Client

Dealers and Installer Sign-up


Worldeyecam Dealers and CCTV Installers




Let's Get Started!

  • You must provide Worldeyecam, Inc with the Confidential Dealer / Reseller Application Form information.
  • Dealer LOGIN account will be created to display special discounted prices as an Worldeyecam Dealer/Distributor. You will be able to login and create quotes or simply order products at your discounted rate.
  • WorldEyeCAM, Inc. will add your business into our database of nationwide integrators and installers.
  • WorldEyeCAM, Inc will provide 1st Class Factory Trained technicians to provide fanatical technical support.
  • WorldEyeCAM, Inc. will advertise and promote your company on that we are partnered with installers that work in the area (cities and counties) that you service and cover.
  • When we get request for installation services in the area that you service, we will refer the customer to you for installation and sales.

Dealer Application
Click Here



Looking for a Quote from a local Installer? Click here



NVR


The UNV (Uniview) 4K UltraHD Recording Resolution Network Video Recorderbrings to you many features that include; 16 IP Chanel inputs as well as recording of 12 megapixels resolution and 16 100M PoE+ Ports. Other features include numerous multiple recording and playback options and 12 TB worth of HDD storage space. With these options you can schedule recordings on a given time or all around the clock.This NVR is ONVIF compliant!



The H.264 compressing feature helps in keeping the quality of your footage in tip top shape but decreasing the size of the file so as you can use and keep numerous files. The NVR also comes with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet like 1 to 2 Mbs. Enable the push alert notifications and automatically receive an email whenever a sudden movement is captured on tape. This helps you in quickly getting in to action whenever an incident happens.  Also you can control the positioning of your camera with the controls on this NVR.

The UNV (Uniview) 4K UltraHD Recording Resolution Network Video Recorder



Product Features



  • 16 IP Channel Inputs
  • 16 Independent 100M PoE+ Ports
  • 1 HDMI and 1 VGA Video Outputs
  • Up to 12 Megapixels resolution recording
  • Support H.265/H.264 video formats
  • 1 RJ-45 10/100/1000M Ethernet Interface
  • 2 SATA Interfaces for Internal Storage
  • ONVIF Complianth



Remote Monitoring

Central Monitoring System: Have more than one location? Well accessing each of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP address.

Playback and Recording

Multiple Playback and Recording Options: The multiple recording options allow you to set your Universal DVR/NVR to record on a set schedule, continuously around-the-clock, or to further conserve hard drive space: only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users, using the multiple playback features.

H.264 Compression

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising the image quality (compared to other compression standards, such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

H.265 Compression

H.265 Real-time Recording and Playback: H.265 is a step above H.264. In the world of technology, we all strive to move forward and advance--so here is our next offer in the world of saving space and slow internet speeds. H.265 can transfer HD video data (~720p) at half of the bandwidth then that of H.264 so that you can enjoy 2K and 4K videos even if you have slow internet(1~2Mbs). You get the same data quality as H.264 and the others, but compared you save 70~80% in bandwidth sources.

Push Alerts

Push Alerts & Automatic E-mails: Setup your Universal DVR/NVR to automatically send you an e-mail alert or a Push Notification, with video clip, every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.

E-map Function

E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of re positioning your cameras to achieve the desired viewing space.

PTZ Control

3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.



Custom System Design

Worldeyecam offers free consultations and system designs, so if the bundled kits don't have what you need, please do not hesitate to call us (1-888-211-2288) or send in a sales request or e-mail. We are open Monday through Friday at 8AM to 5PM Pacific time.





**There are NO contracts or monthly fees with any WorldEyeCam purchase**





SPECIFICATIONS
Model NVR302-16E-16P
IP Camera Inputs 16 Channels
Two-way Talk 1 Channel, RCA Mic / Speaker Interfaces
Display Interface 1 HDMI, 1 VGA
Display Resolution HDMI: 4K (3840 x 2160); 1920 x 1080; 1600 x 1200; 1280 x 720; 1280 x 1024; 1024 x 768
VGA: 1920 x 1080; 1600 x 1200; 1280 x 720; 1024 x 768
Display Split 1 / 4 / 8 / 9 / 16
Recording Resolution 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Incoming Bit Rate 160Mbps
Outgoing Bandwidth 320Mbps
Alarm Inputs 4 Channels
Relay Outputs 1 Channel
Synchronized Playback 4 x 12MP@20fps; 4 x 4K@30fps; 8 x 4MP@20fps; 16 x 1080p@30fps
Backup Media External USB or Network Download
Network interface 1 10/100/1000M RJ-45 Ethernet Interface
Remote Connections 128 Connections Maximum
HDD Interfaces 2 SATA interfaces
USB Interfaces 1 USB2.0 (Front), 1 USB3.0 (Rear)
Power Requirement 100 - 240 VAC
Power Consumption < 21W (Without HDD)
PoE Ports 16
PoE Power Max 30W for each port, 200W Total Power Budget
Operating Environment 14° - 131° Fahrenheit
Dimensions 380mm x 315mm x 49mm
Weight (without HDD) ~6lbs

Dome Camera


This Uniview 4MP WDR Network IR Mini Bullet Camera is a smart functioning security camera. It has a 4 megapixel resolution and is fixed with optional lens size of 2.8mm, 3.6mm or 6mm. With infrared night vision, the camera allows you to maintain perfect vision in total darkness in an area as wide and big as 98 feet. This mini bullet security camera comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant. It’s durable with IP66 rating. It also has a "Smart IR" feature which will adjust based on the location to give you an optimal image.



The H.264 compression greatly reduces the size of your digital video files without compromising the image quality and saving your hard drive storage space. The camera comes also with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet like 1to 2Mbs. The camera is wide dynamic range and very efficient for monitoring.









The UNV (Uniview) 4MP Network IR Fixed Dome. This is a 4 megapixel resolution IP dome camera. It has an optional lens size of 2.8mm, 3.6mm, or 6mm. Infrared night vision allows the security camera to see up to 98 feet in total darkness. The surveillance camera also comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant. It is small and discreet but durable, with an IP66 rating.



Product Features

Optics

  • Day/night functionality
  • Smart IR , up to 30 m (98 ft) IR distance
  • Up to 120 dB WDR (Wide Dynamic Range)

Compression

  • H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor format

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • 4 KV surge protection designed for network interface
  • IP66





Infrared

Smart IR Technology: This item comes with infrared technology, meaning not only can you see a longer distance in the dark but to bump up the ante, it also has "Smart IR" which will adjust based off of the situation to give you an optimal image.

H.264 Compression

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising the image quality (compared to other compression standards, such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

H.265 Compression

H.265 Real-time Recording and Playback: H.265 is a step above H.264. In the world of technology, we all strive to move forward and advance--so here is our next offer in the world of saving space and slow internet speeds. H.265 can transfer HD video data (~720p) at half of the bandwidth then that of H.264 so that you can enjoy 2K and 4K videos even if you have slow internet(1~2Mbs). You get the same data quality as H.264 and the others, but compared you save 70~80% in bandwidth sources.

Custom System Design

Worldeyecam offers free consultations and system designs, so if the bundled kits don't have what you need, please do not hesitate to call us (1-888-211-2288) or send in a sales request or e-mail. We are open Monday through Friday at 8AM to 5PM Pacific time.





 WDR120dB

SPECIFICATIONS
Model IPC3614SR3-DPF
Camera:
Sensor 1/3” progressive scan, 4 megapixel, CMOS
Lens 2.8mm@F1.8(Angle of view(H): 112.5°)
3.6mm@F1.8(Angle of view(H): 77.6°)
6mm@F1.8(Angle of view(H): 49.4°)
AWB(Auto white balance) Auto/manual
Shutter Auto/Manual, shutter time: 1/6 s ~1/8000 s
Minimum Illumination Colour: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR on
Noise Reduction 2D/3D
Day / Night IR-cut filter with auto switch (ICR)
Gain Control Auto/manual
IR Up to 30m (98 ft) IR range
Video
Max. Resolution 1920 x 1080
Compression H.265/H.264/MJPEG
Frame Rate 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps
Video Streaming Triple
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
Motion Detection Up to 2 areas
Smart
Behavior Detection Intrusion, crossing line, motion detection
Intelligent Identification Face detection
Statistical Analysis People counting
Network
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Compatible Integration ONVIF, API
Interface
Network 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af)
Dimensions (Ø x H)
Power consumption: Max 5.5 W
Φ126 x 94mm (Φ5.0” x 3.7”)
Weight 0.33kg (0.73lb)
Working Environment -35?~60? (-31? ~ 140?), Humidity ≤ 95% RH (non-condensing)
Ingress Protection IP66

Mobile Apps


Uniview EZ-View Mobile App for iPhone and Android




EZView for iPhone and Android

Safe: data encryption, cell phone/e-mail registration, pin/gesture password and real-time alarm notification. Stable: add/manage/delete cloud devices, main/sub/third stream switch and multi-layer network address translation (NAT) traversal. Handy: quick add devices by scanning QR code, tap-drag live videos, gesture PTZ control and cellular/Wi-Fi data statistics



iPhone and iPad App

Android App

Bullet Camera


This Uniview 4MP WDR Network IR Mini Bullet Camera is a smart functioning security camera. It is 4 megapixels and is fixed with optional lens size of 3.6mm or 6mm. With Infrared night vision, the camera allows you to maintain perfect vision in total darkness in an area as wide and big as 98 feet. This mini bullet security camera comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant. It’s durable with IP66 rating. It also has "Smart IR" which will adjust based on the situation to give you an optimal image.



The H.264 compression greatly reduces the size of your digital video files without compromising the image quality and saving your hard drive storage space.The camera comes also with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet(1~2Mbs). The camera is wide dynamic range and very efficient for monitoring.









The UNV (Uniview) 4MP WDR Network IR Mini Bullet Camera. This is a 4 megapixel resolution IP bullet camera. It has an optional lens size of 3.6mm or 6mm. Infrared night vision allows the security camera to see up to 98 feet in total darkness. The surveillance camera also comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant. It is small and discreet but durable, with an IP66 rating.



Product Features

Optics

  • Day/night functionality
  • Smart IR , up to 30 m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 3D DNR (Digital Noise Reduction)

Compression

  • H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor format

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IP66





Infrared

Smart IR Technology: This item comes with infrared technology, meaning not only can you see a longer distance in the dark but to bump up the ante, it also has "Smart IR" which will adjust based off of the situation to give you an optimal image.

H.264 Compression

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising the image quality (compared to other compression standards, such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

H.265 Compression

H.265 Real-time Recording and Playback: H.265 is a step above H.264. In the world of technology, we all strive to move forward and advance--so here is our next offer in the world of saving space and slow internet speeds. H.265 can transfer HD video data (~720p) at half of the bandwidth then that of H.264 so that you can enjoy 2K and 4K videos even if you have slow internet(1~2Mbs). You get the same data quality as H.264 and the others, but compared you save 70~80% in bandwidth sources.

Custom System Design

Worldeyecam offers free consultations and system designs, so if the bundled kits don't have what you need, please do not hesitate to call us (1-888-211-2288) or send in a sales request or e-mail. We are open Monday through Friday at 8AM to 5PM Pacific time.





 WDR120dB

SPECIFICATIONS
Model IPC2124SR3-DPF
Camera:
Sensor 1/3” progressive scan, 4 megapixel, CMOS
Lens 12.0mm@F1.8
Iris Auto/Manual, F1.6 ~ F3.3
Shutter Auto/Manual, shutter time: 1/6 s ~1/8000 s
Minimum Illumination Colour: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR on
S/N Ratio >55dB
Day / Night IR-cut filter with auto switch (ICR)
Angle of View (H) 25°
IR Range Up to 30m (98 ft) IR range
Video
Max. Resolution 1920 x 1080
Compression H.265/H.264/MJPEG
Frame Rate 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps
Video Streaming Triple
9:16 Corridor Mode Supported
ROI Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
Motion Detection Up to 2 areas
Smart
Behavior Detection Intrusion, crossing line, motion detection
Intelligent Identification Face detection
Statistical Analysis People counting
Network
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Compatible Integration ONVIF, API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af)
Dimensions (Ø x H) 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight 0.45kg (0.99lb)
Working Environment -35?~60? (-31? ~ 140?), Humidity ≤ 95% RH (non-condensing)
Ingress Protection IP66

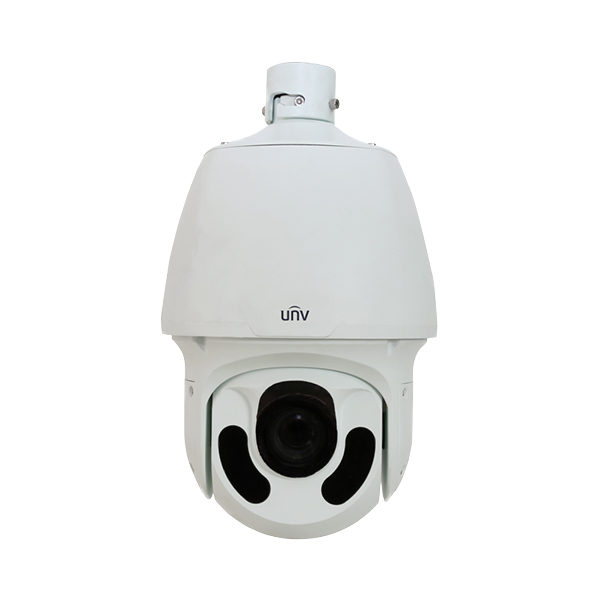

PTZ Camera


This UNV (Uniview) 2MP 20x IR Network PTZ Dome Camera has multiple golden features that are direly needed for your professional/abode area. It is 2 megapixels and is fixed with fixed lens size of 94mm that has 20x optical zoom feature. With infrared night vision as well as an added feature called Smart IR, the camera allows you to maintain perfect vision in total darkness in an area as wide and big as 328 feet. The structure is built in a sturdy manner to bear bad weather such as dust storms thanks to its IP66 protection.



The H.264 compression greatly reduces the size of your digital video files without compromising the image quality and saving your hard drive storage space. With the intelligent technology this security camera was created with you can control the movement and direction of it simply by using your mobile’s applications or monitor prefixes. With the pan/tilt/zoom feature of this camera it will be easy for you to keep an eye on all your surroundings.









The UNV (Uniview) 2MP 20x IR Network PTZ Dome Camera



Product Features

Optics

  • Accurate and fast focusing
  • The third-generation infrared technology
  • Smart IR, up to 100 m (328 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance

Compression

  • H.264 High Profile
  • Triple streams
  • Customized OSD

Network

  • ONVIF Conformance

Structure

  • Special structure and window design to battle bad weather (especially in dusty weather)
  • Innovative snow-removing functionality
  • Intelligent temperature control technology
  • More effective heat dissipation system
  • 6 KV surge protection designed for network interface





Infrared

Smart IR Technology: This item comes with infrared technology, meaning not only can you see a longer distance in the dark but to bump up the ante, it also has "Smart IR" which will adjust based off of the situation to give you an optimal image.

PTZ Control

3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.

H.264 Compression

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising the image quality (compared to other compression standards, such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

Custom System Design

Worldeyecam offers free consultations and system designs, so if the bundled kits don't have what you need, please do not hesitate to call us (1-888-211-2288) or send in a sales request or e-mail. We are open Monday through Friday at 8AM to 5PM Pacific time.





 <tr">Privacy MaskUp to 8 areas

SPECIFICATIONS
Model IPC6222ER-X20
Camera:
Sensor 1/2.8” progressive scan, 2 megapixel, CMOS
Lens 4.7 ~ 94 mm (20x optical zoom)
Iris Auto/Manual, F1.6 ~ F3.3
Shutter Auto/Manual, shutter time: 1/6 s ~1/8000 s
Minimum Illumination Colour: 0.03 Lux (F1.6, 50IRE)
B/W: 0.01 lux (F1.6, 50IRE)
S/N Ratio >52dB
Day / Night IR-cut filter with auto switch (ICR)
Angle of View (H) 61.9° (wide) ~ 3.5° (tele)
Video
Max. Resolution 1920 × 1080
Compression H.264,MJPEG
Frame Rate 1080P (1920×1080):Max.60 fps; 720P (1280×720):Max.60 fps; D1 (720×576):Max.25 fps
Video Streaming Triple
OSD Up to 8 OSDs
Digital Zoom Supported
Audio
Audio Compression G.711
Two-way audio Supported
Storage
Edge Storage Micro SD, up to 64GB
Network
Protocols L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,NTP,FTP,HTTP,SNMP,SIP
Compatible Integration ONVIF, IMOS, API
Pan & Tilt
Pan Range 360° (endless)
Pan Speed 0.1°/s ~ 240°/s
Preset speed: 300°/s
Tilt Range –15° ~ +90° (auto reverse)
Preset speed: 240°/s
Tilt Speed 0.1° ~ 160°/s
Preset speed: 240°/s
Number of Preset 255
Patrol Up to 16 patrols, up to 32 presets per patrol (Note: The total number of patrols and patterns is 16.)
Pattern Up to 16 patterns, with the total recording time not less 15 minutes per pattern
Interface
Audio I/O audio cable
1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O 1 / 1
Network 10M/100M Base-TX Ethernet
General
Power 24 V AC, 24 V DC
Power consumption: 9 ~ 42W (IR:16W, heater: Max. 24 W)
Dimensions (Ø x H) Φ227mm x 359.4mm (Φ8.9” x 14.2”)
Weight 5.28kg (11.6lb)
Working Environment -40?~65? (-40? ~ 149?), Humidity ≤ 90% RH (non-condensing)
Vandal Resistant IK10
Ingress Protection IP66
