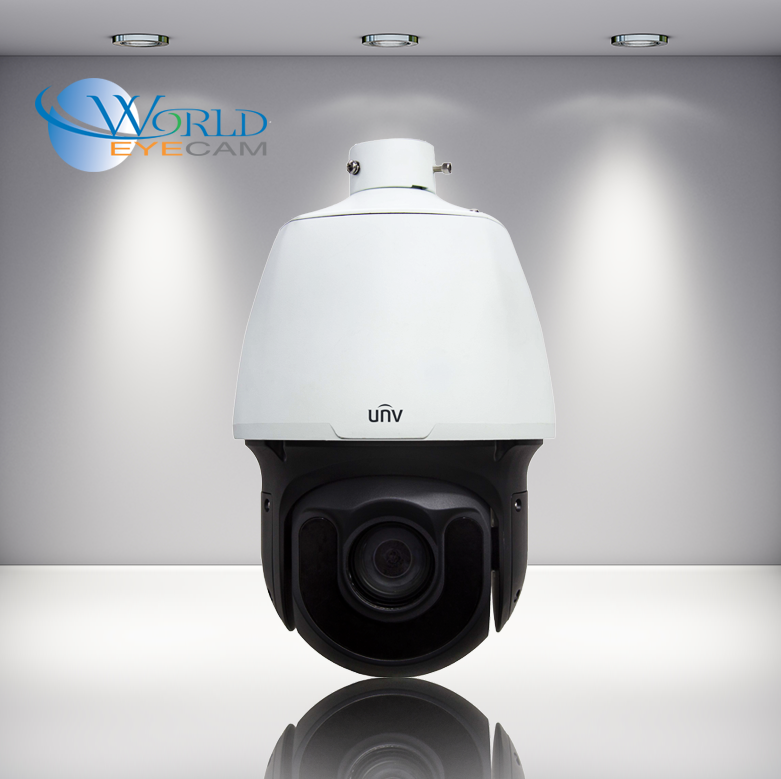

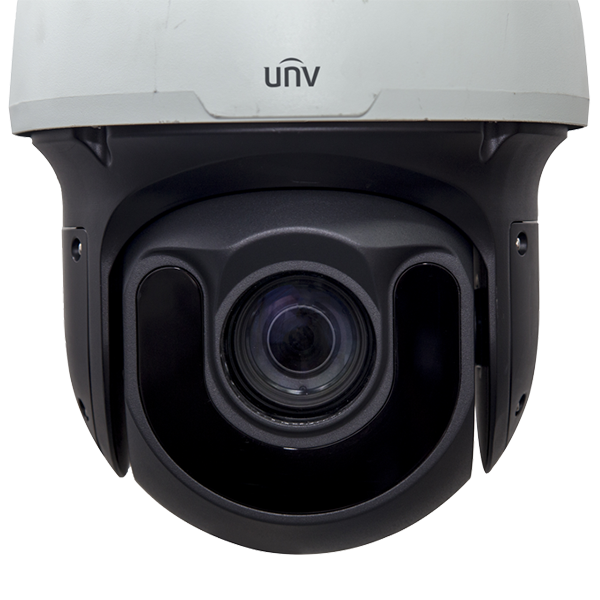

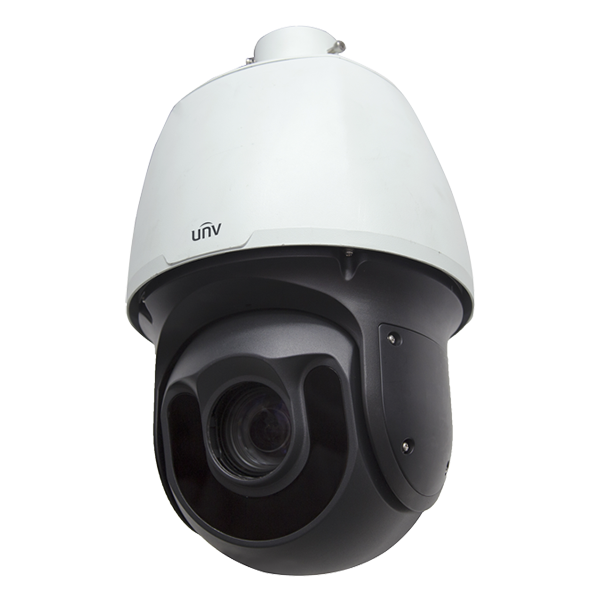

IPC6242SR-X22U - UNV Uniview - 2MP Starlight PTZ with 22x Optical Zoom


Please login or register to see price
Availability: In Stock
Ships Same Day
SKU: IPC6242SR-X22U
Product #: 86367
Manufacturer:
Camera Type: PTZ
Camera Resolution: 2 Megapixel
Camera Signal: IP
Shipping Lead Time: Ships Same Day
Lens Size: 3mm
Optical Zoom: Fixed Lens

This UNV (Uniview) 2MP Starlight 22x IR Network PTZ Dome Camerahas multiple golden features that are direly needed for your professional/abode area. It is 2 megapixels and has afixed lens size of 143 mm that has 22x optical zoom feature. With infrared night vision as well as an added feature called Smart IR, the camera allows you to maintain perfect vision in total darkness in an area as wide and big as 492 feet. The structure is built in a sturdy manner to bear bad weather such as dust storms thanks to its IP66 protection.



The H.264 compression greatly reduces the size of your digital video files without compromising the image quality and saving your hard drive storage space. With the intelligent technology this security camera was created with you can control the movement and direction of it simply by using your mobile’s applications or monitor prefixes. With the pan/tilt/zoom feature of this camera it will be easy for you to keep an eye on all your surroundings.









The UNV (Uniview) 2MP Starlight 22x IR Network PTZ Dome Camera



Product Features

Optics

  • Starlight illumination
  • Accurate and fast focusing
  • Smart IR, up to 150 m (492 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance

Compression

  • H.264 High Profile
  • Triple streams
  • Frame rate up to 60 fps with 1080P

Network

  • ONVIF Conformance

Structure

  • Special structure and window design to battle bad weather (especially in dusty weather)
  • Innovative snow-removing functionality
  • Intelligent temperature control technology
  • More effective heat dissipation system
  • 6 KV surge protection designed for network interface









Auto Tracking PTZ


Auto-tracking can be broken down into two types

Panoramic & Triggered


Panoramic tracking scans the entire area and starts to track any moving object that appears in the scene.

Triggered tracking is used as a response to a smart service. When a smart service is triggered, the camera starts to track the moving object that caused the trigger




U.265 Compression


By combining U-Code and H.265, Ultra 265 can squeeze up to 95% bandwidth and storage space.

Unlike conventional video compression technologies which tries to reduce storage costs by sacrificing resolution and frame rate indiscriminately, U-Code chooses to use "IRP" (Intelligent Region Perception) to detect motion in each frame. Hence, scenes containing interesting information could be preserved while the other relatively static area such as lawns, white walls could be squeezed to save storage.





Cloud Upgrade


If your NVR is connected to a network with Internet access, you may utilize the Internet cloud update feature to check online to see if a new version is available and to perform the update.

Bring up the main menu by right-clicking with the mouse or left-clicking on the Home icon on the menu bar (if available). Using the mouse, left-click on Maintain and then Upgrade and then select the tab entitled Upgrade by Cloud. You will be shown the current version of firmware installed on the NVR and can click on the Check button at the bottom to see if a more recent version is available. If a new version is available, you need only to click on the Upgrade button at the bottom and the download and upgrade process will begin. After updating, the NVR will automatically reboot.




UNV Customer System Kit Builder


Designing a unique surveillance system for your home or business is as easy as clicking your mouse with our new Custom Kit Builder. With intuitive prompts that guide you along the way, you are in control of your camera styles, NVR or DVR size, power accessories and hard drive space. Still have questions, give us a call, our expert technicians are here to help. Your brand new system is only a few clicks away.

UNV IP System Builder
Click Here

SPECIFICATIONS
Model IPC6242SR-X22U
Camera:
Sensor 1/1.9” progressive scan, 2 megapixel, CMOS
Lens 6.5 ~ 143 mm
(22x optical zoom)
Iris Auto/Manual, F1.5 ~ F3.4
Shutter Auto/Manual, shutter time: 1/6 s ~1/8000 s
Minimum Illumination Colour: 0.02 Lux
(F1.6, 50IRE)
B/W: 0.0002 lux (F1.6, 50IRE)
S/N Ratio >52dB
Day / Night IR-cut filter with auto switch (ICR)
Angle of View (H) >70° (wide) ~ 3.76° (tele)
Video
Max. Resolution 1920 × 1080
Compression H.264,MJPEG
Frame Rate 1080P (1920×1080):Max.60 fps;
720P (1280×720):Max.60 fps;
D1 (720×576):Max.25 fps
Video Streaming Triple
OSD Up to 8 OSDs
Digital Zoom Supported
Audio
Audio Compression G.711
Two-way audio Supported
Storage
Edge Storage Micro SD, up to 128GB
Network
Protocols L2TP,IPv4,IGMP
,ICMP,ARP,TCP,UDP,DHCP
,PPPoE,RTP,RTSP,NTP,FTP
,HTTP,SNMP,SIP
Compatible Integration ONVIF, IMOS,API
Pan & Tilt
Pan Range 360° (endless)
Pan Speed 0.1°/s ~ 240°/s
Preset speed: 300°/s
Tilt Range –15° ~ +90°
(auto reverse)
Preset speed: 240°/s
Tilt Speed 0.1° ~ 160°/s
Preset speed: 240°/s
Number of Preset 255
Patrol Up to 16 patrols,
up to 32 presets per patrol
(Note: The total number of patrols
and patterns is 16.)
Pattern Up to 16 patterns,
with the total recording time not
less 15 minutes per pattern
Interface
Audio I/O audio cable
1 Input: impedance 35 kΩ;
amplitude 2 V [p-p]
1 Output: impedance 600 Ω;
amplitude 2 V [p-p]
Alarm I/O 2 / 1
Serial Port 1 RS485
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power 24 V AC±25% (default power supply),
PoE (IEEE802.3at), 24V DC±25%
Power consumption: 12 ~46W (IR:27W, heater: Max. 12W)
Dimensions (Ø x H) Φ227mm x 359.4mm
(Φ8.9” x 14.2”)
Weight 5.5kg (12.1lb)
Working Environment -40℃~70℃ (-40℉ ~ 158℉),
Humidity ≤ 90% RH
(non-condensing)
IR Built-in VF laser IR
Ingress Protection IP66

Data sheet of IPC6242SR-X22U

IPC6200 Series-Network Bullet Cameras Quick Guide-V1.01

Camera Installation Guide-V1.00

Network Cameras User Manual-V2.03
