IPC6222ER-X30 - UNV Uniview - 2MP IP PTZ with IR and 30x Optical Zoom


Please login or register to see price
Availability: In Stock
Ships Same Day
SKU: IPC6222ER-X30
Product #: 86366
Manufacturer:
Camera Type: PTZ
Camera Resolution: 2 Megapixel
Camera Signal: IP
Shipping Lead Time: Ships Same Day
Lens Size: 30X
Optical Zoom: Fixed Lens

This UNV (Uniview) 2MP 30x IR Network PTZ Dome Camera has multiple golden features that are direly needed for your professional/abode area. It is 2 megapixels and is fixed with fixed lens size of 94mm that has 20x optical zoom feature. With infrared night vision as well as an added feature called Smart IR, the camera allows you to maintain perfect vision in total darkness in an area as wide and big as 328 feet. The structure is built in a sturdy manner to bear bad weather such as dust storms thanks to its IP66 protection.

The H.264 compression greatly reduces the size of your digital video files without compromising the image quality and saving your hard drive storage space. With the intelligent technology this security camera was created with you can control the movement and direction of it simply by using your mobile’s applications or monitor prefixes. With the pan/tilt/zoom feature of this camera it will be easy for you to keep an eye on all your surroundings.

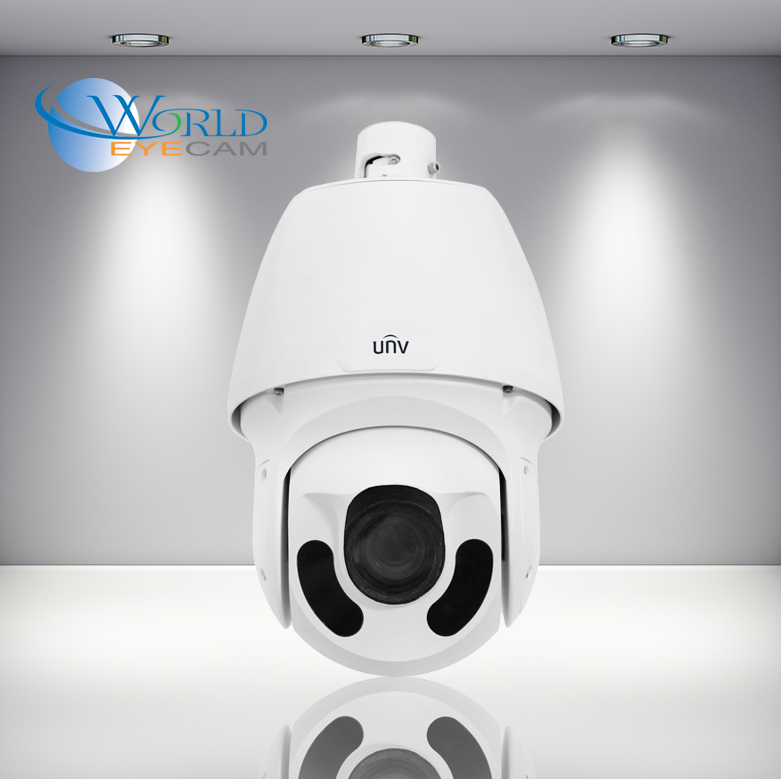

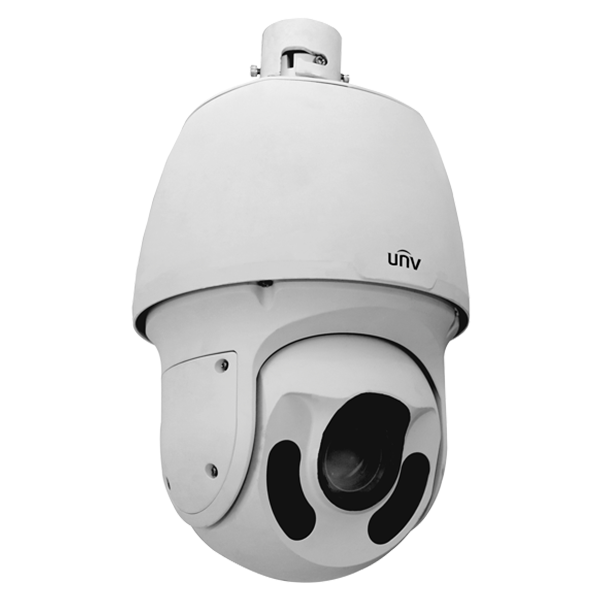

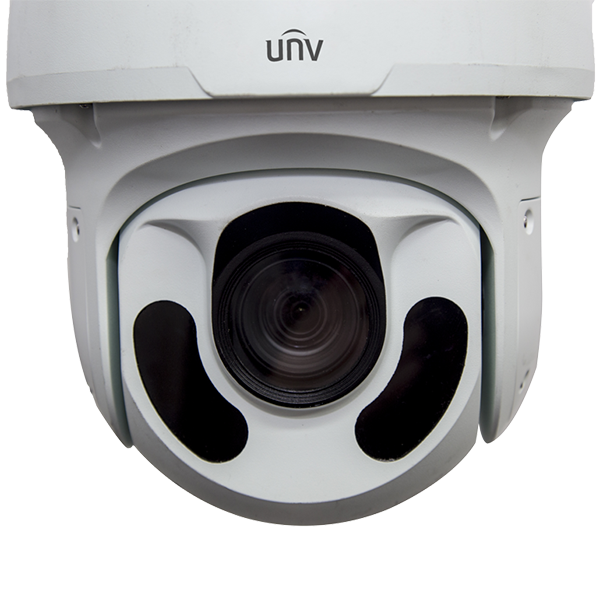

The UNV (Uniview) 2MP 30x IR Network PTZ Dome Camera



Product Features

Optics

  • 30X Optical Zoom
  • Accurate and fast focusing
  • The third-generation infrared technology
  • Smart IR, up to 100 m (328 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance

Compression

  • H.264 High Profile
  • Triple streams
  • Customized OSD

Network

  • ONVIF Conformance

Structure

  • Special structure and window design to battle bad weather (especially in dusty weather)
  • Innovative snow-removing functionality
  • Intelligent temperature control technology
  • More effective heat dissipation system
  • 6 KV surge protection designed for network interface









Auto Tracking PTZ


Auto-tracking can be broken down into two types

Panoramic & Triggered


Panoramic tracking scans the entire area and starts to track any moving object that appears in the scene.

Triggered tracking is used as a response to a smart service. When a smart service is triggered, the camera starts to track the moving object that caused the trigger




U.265 Compression


By combining U-Code and H.265, Ultra 265 can squeeze up to 95% bandwidth and storage space.

Unlike conventional video compression technologies which tries to reduce storage costs by sacrificing resolution and frame rate indiscriminately, U-Code chooses to use "IRP" (Intelligent Region Perception) to detect motion in each frame. Hence, scenes containing interesting information could be preserved while the other relatively static area such as lawns, white walls could be squeezed to save storage.





Cloud Upgrade


If your NVR is connected to a network with Internet access, you may utilize the Internet cloud update feature to check online to see if a new version is available and to perform the update.

Bring up the main menu by right-clicking with the mouse or left-clicking on the Home icon on the menu bar (if available). Using the mouse, left-click on Maintain and then Upgrade and then select the tab entitled Upgrade by Cloud. You will be shown the current version of firmware installed on the NVR and can click on the Check button at the bottom to see if a more recent version is available. If a new version is available, you need only to click on the Upgrade button at the bottom and the download and upgrade process will begin. After updating, the NVR will automatically reboot.




UNV Customer System Kit Builder


Designing a unique surveillance system for your home or business is as easy as clicking your mouse with our new Custom Kit Builder. With intuitive prompts that guide you along the way, you are in control of your camera styles, NVR or DVR size, power accessories and hard drive space. Still have questions, give us a call, our expert technicians are here to help. Your brand new system is only a few clicks away.

UNV IP System Builder
Click Here

IPC6222ER-X30
Camera
Sensor1/2.8", 2 megapixel, progressive scan, CMOS
Lens4.5 ~ 135 mm (30x optical zoom)
Angle of View (H)62.9° (wide) ~ 2.3° (tele)
IrisAuto/Manual; F1.6 ~ F4.8
ShutterAuto/Manual; shutter time: 1/6 s ~ 1/8000 s
Minimum IlluminationColour: 0.03 lux (F1.6, 50IRE)
 B/W: 0.01 lux (F1.6, 50IRE)
S/N>52dB
Day/NightIR-cut filter with auto switch (ICR)
WDRDigital
Video
Max. Resolution1920 × 1080
Video CompressionH.264,MJPEG
Frame Rate1080P (1920*1080) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps
Video StreamingTriple
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
Digital ZoomSupported
Audio
Audio CompressionG.711
Two-way audioSupported
Storage
Edge StorageMicro SD, up to 64 GB
Network
ProtocolsL2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP, NTP,FTP,HTTP,SNMP,SIP
Compatible IntegrationONVIF, IMOS,API
Pan & Tilt
Pan Range360° (endless)
Pan Speed0.1°/s ~ 240°/s
 Preset speed: 300°/s
Tilt Range-15° ~ +90° (auto reverse)
Tilt Speed0.1° ~ 160°/s
 Preset speed: 240°/s
Number of Preset255
PatrolUp to 16 patrols, up to 32 presets per patrol
 Note: The total number of patrols and patterns is 16.
PatternUp to 16 patterns, with the total recording time not less 15 minutes per pattern
Interface
Audio I/OAudio cable
 Input: impedance 35 kΩ; amplitude 2 V [p-p]
 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O1-Jan
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power24 V AC, 24 V DC
 Power consumption: 9 ~ 42W (IR:16W, heater: Max. 24 W)
Dimensions (Ø x H)Ø227 x 359.4 mm (Ø8.9" x 14.2")
Weight5.28 kg (11.6 lb)
Working Environment-40°C ~ +65°C (-40°F ~ 149°F), Humidity ≤ 90% RH(non-condensing)
Vandal ResistantIK10
Ingress ProtectionIP66

  IPC6222ER-X30(P) 2MP 30X IR Network PTZ Dome Camera

Camera Installation Guide-V1.00

Network Cameras User Manual-V2.03
