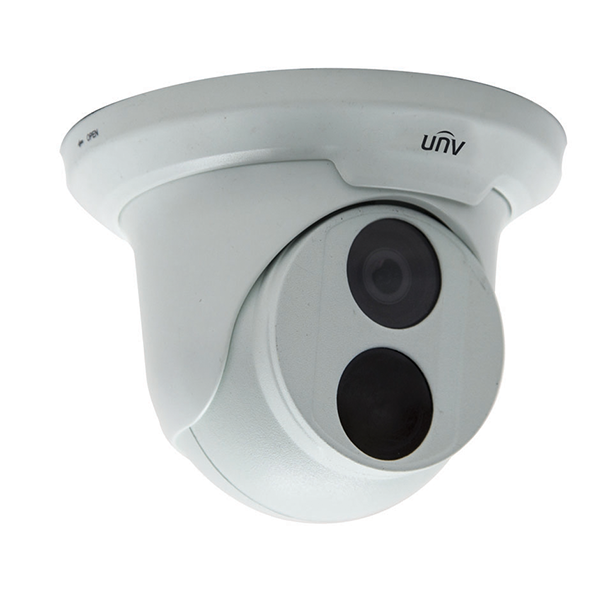

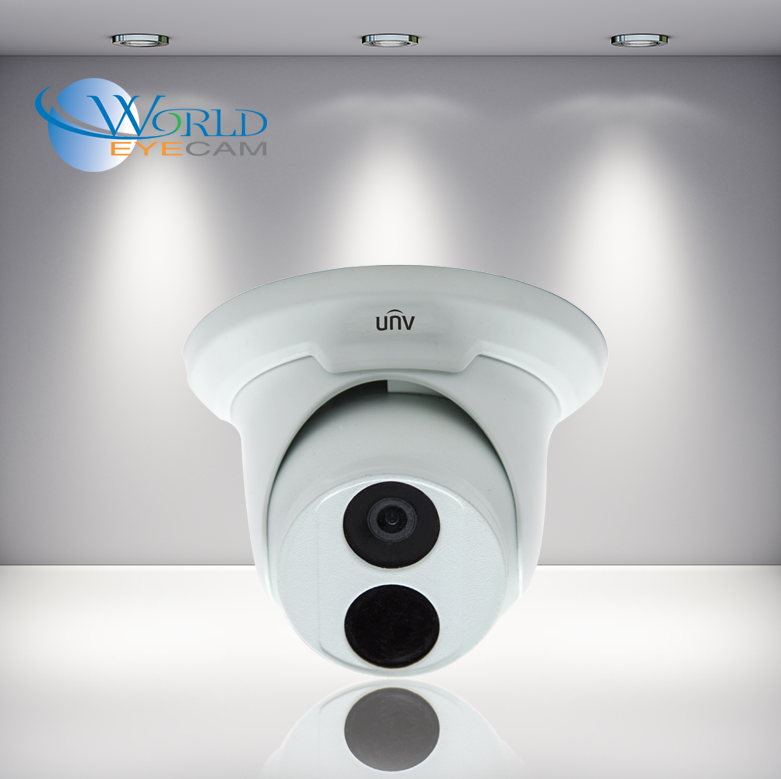

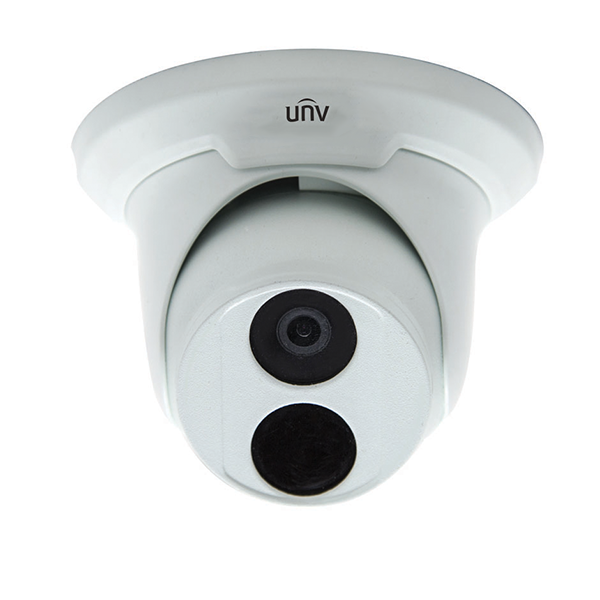

IPC3612ER3-PF28(40)(60)-B - UNV Uniview - 2MP Network IR Fixed Dome Camera


$94.00


Availability: In Stock
Ships Same Day
List Price: $199.00
SKU: IPC3612ER3-PF28(40)(60)-B2
Product #: 87051
Manufacturer:
Camera Type: Dome
Camera Resolution: 2 Megapixel
Camera Signal: IP
Shipping Lead Time: Ships Same Day
Lens Size: 4mm

Lens:
Warranty:
Remote Login Support:
Quantity

Log-in or REGISTER HERE to view EXCLUSIVE pricing.


This is a 2MP Network IR Fixed Dome Camera. It has an optional lens size of 3.6mm. Infrared night vision allows the security camera to see up to 98 feet in total darkness. The surveillance camera is ONVIF compliant.



Product Features

Optics

  • Day/night functionality
  • Optical glass window with higher light transmittance
  • Up to 120 dB WDR (Wide Dynamic Range)
  • IR anti-reflection window to increase the infrared transmittance
  • 3D Digital Noise Reduction

Compression

  • H.265, H.264, MJPEG
  • Triple streams
  • 9:16 corridor format

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • 4 KV surge protection designed for network interface
  • IP67




Digital Defog


Uniview puts forward digital defog technology, which applies IR for imaging. All lost details in fog weather can be recognized perfectly.


Long-Range POE - 928 ft.


Even though the camera’s location is hundreds of feet away from NVR, you can still easily connect cameras directly to NVR for both power supply and video streaming because UNV NVR supports up to 928 Ft long rang PoE. It helps to make your store under protection 24/7 with only a few steps during installation.



Cloud Upgrade


If your camera is connected to a network with Internet access, you may utilize the Internet cloud update feature to check online to see if a new version is available and to perform the update.

Bring up the main menu on your Uniview NVR by right-clicking with the mouse or left-clicking on the Home icon on the menu bar (if available). Using the mouse, left-click on Maintain and then Upgrade and then select the tab entitled Upgrade by Cloud. You will be shown the current version of firmware installed on the camera and can click on the Check button at the bottom to see if a more recent version is available. If a new version is available, you need only to click on the Upgrade button at the bottom and the download and upgrade process will begin. After updating, the camera will automatically reboot.



Wide Temperature Range


Uniview' s cameras can function well under -40 ℃ ~ 70 ℃ , adapting to all harsh environment condition.





Trip Wire


Create a Virtual Tripwire similar to those you see in Hollywood films. However, these criminals cannot dodge the power of Uniview!

You can also set the direction of which the Trip Wire will be activated
For example, if people are only supposed to be leaving one direction and someone decides to go back you will be notified since they are going the wrong direction.



UNV Customer System Kit Builder


Designing a unique surveillance system for your home or business is as easy as clicking your mouse with our new Custom Kit Builder. With intuitive prompts that guide you along the way, you are in control of your camera styles, NVR or DVR size, power accessories and hard drive space. Still have questions, give us a call, our expert technicians are here to help. Your brand new system is only a few clicks away.

UNV IP System Builder
Click Here

SPECIFICATIONS
Model IPC3612ER3-P28F
Camera:
Sensor 1/2.7” progressive scan,
2 megapixel, CMOS
Lens
2.8mm@F1.8(Angle of view(H): 109.9°)
AWB(Auto white balance) Auto/manual
Shutter Auto/Manual, shutter time: 1/6 s ~1/1000000 s
Noise Reduction 2D/3D
Day / Night IR-cut filter with
auto switch (ICR)
Gain Control Auto/manual
IR Up to 30m (98 ft) IR range
Video
Max. Resolution 1920 x 1080
Compression H.265/H.264/MJPEG
Frame Rate 1080P (1920×1080): Max. 30 fps;
720P (1280×720): Max. 30 fps;
D1 (720×576): Max. 25 fps
Video Streaming Triple
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
Motion Detection Up to 2 areas
Network
Protocols IPv4,IGMP,ICMP
,ARP,TCP,UDP,DHCP,RTP
,RTSP,Qos,DNS,DDNS,NTP
,FTP,UPnP,HTTP
Compatible Integration ONVIF
Interface
Network 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af)
Power consumption: 3.5 W
(5.5W with IR on)
Dimensions (Ø x H)
Power consumption: Max 5.5 W
Φ126 x 94mm
(Φ5.0” x 3.7”)
Weight 0.33kg (0.73lb)
Working Environment -35℃~60℃ (-31℉ ~ 140℉),
Humidity ≤ 95% RH
(non-condensing)
Ingress Protection IP66
Data sheet of IPC3612SR3-P36F

IPC3600 Series-Network Bullet Cameras Quick Guide-V1.01

Camera Installation Guide-V1.00

Network Cameras User Manual-V2.03
