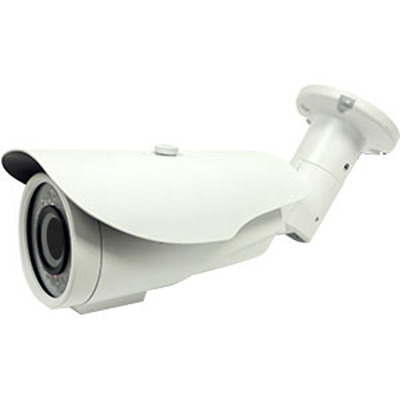

960H 700TVL Sony Super HAD II Varifocal 2.8mm-12mm


$99.00


Availability: In Stock
Ships Same Day
List Price: $189.00
SKU: Sony Super HAD II
Product #: 85701
Manufacturer:
UPC: 881314694976

Cables:
Power Supply:
Color:
Remote Login Support:
Quantity

This surveillance camera has Auto Grain Control for recording high definition footage even in very low light. It records with a resolution of 700TVL in as little as .001 Lux. The security camera also has a 2.8-12mm varifocal lens with manual zoom.



Model

Sony Super HAD II

Pick up Element

1/3” SONY SuperHAD CCD II

Effective Picture Element (HxV)

976(H) x 494 (V)

Horizontal Resolution

700TV Line

Minimum Illumination

0.001 Lux / F1.2

S/N Ratio

More then 52db

Scanning System

2:1 Interface

Synchronous System

Internal, Negative sync.

Auto Electronic Shutter

NTSC: 1/60s ~ 1/100,000s

Gama Characteristic

0.45

IR Distance

40 Meters (with ¢5x42pcs IR LED)

IR Power ON

CDS Auto Control

Video Output

1Vpp, 75Ω

Auto Gain Control

Auto

Power / Current

DC 12V (+/- 10%) 1000mA

Lens

2.8-12mm Manual Zoom Lens (2M Pixels)

Dimension (mm)

291(W) X 90(H) X 93(D)

Weight (g)

1600g

Storage Temperature

-30 ~ +60°C RH95% MAX

Operating Temperature

-10 ~ + 50°C RH95% MAX

Average Customer Rating:


1 Most useful customer reviews
Penny Albritton
Jan 18, 2016
This customer purchased the item at our site.
I run business of furniture in posh area and my furniture show room is huge. I installed in it some security cameras in the past but they do not satisfy me as Many times I faced attempts of burglary and thef. So, I had to look for a more effective camera and here t I got this 960H 700TVL Sony Super HAD IIand for the first time I felt that car really monitor the entire show room clearly well. The price was pretty cheap – $99.00 only. So, I bought one more for the outside area and now I can keep an eye both indoor and outdoor activities without a hindrance.

There could have been possibly no other camera that would perfectly help me supervise all the activities with this efficiency. It can take a clear footage of everything within a distance of 40 feet. Even the sounds are clear and not only the images. For all business stores, offices, farms and homes this security camera is the best choice.
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
*}
