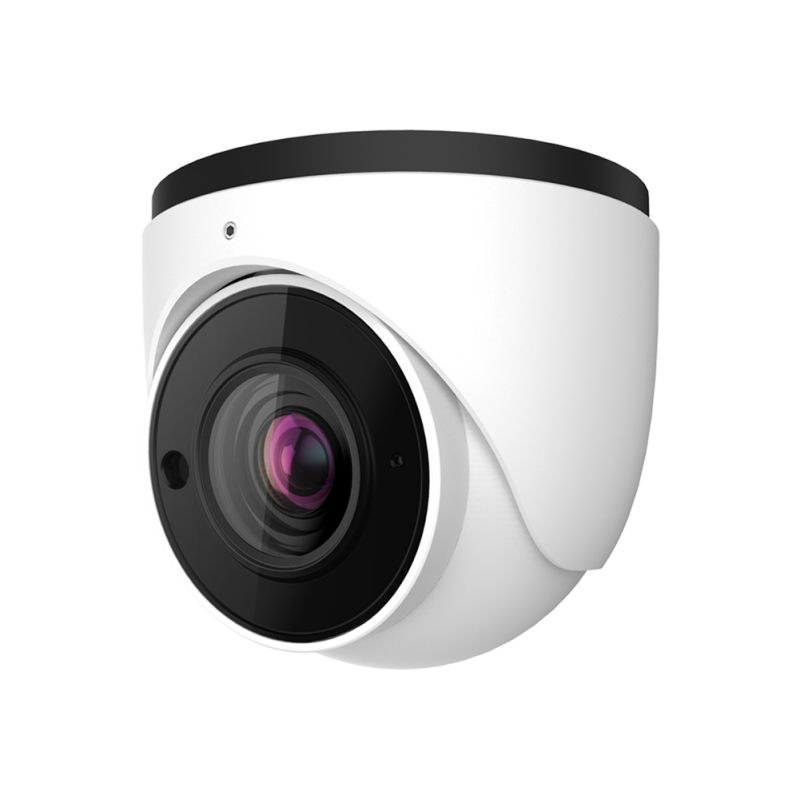

8MP WDR Network Water-proof Dome Camera

Worldeyecam
SKU: IP-5IRD8001-W-2.8

Automatic Face Recognition and Actions:

Face Recognition is based on deep learning algorithms. It automatically captures faces in real time, compares or adds faces to a pre-defined list, and then takes appropriate action such as generating an alert once the captured face matches a pre-defined face list in the database

8MP Network IR Water-proof Dome Camera, 2.8mm Lens, 20~30m IR distance, WDR, PoE, IP67

Features:

  • 8MP ( 3840 × 2160 ) H.265 coding
  • Max.resolution: 3840 2160
  • ICR auto switch, true day/night, ROI coding
  • 3D DNR, TRUE WDR, HLC, BLC, Smart IR, defog
  • 20~30m IR night view distance
  • One CVBS output; One MIC IN and one built-in MIC
  • Support smart phone, iPad, remote monitoring
  • DC12V/PoE power supply
  • P2P function optional
  • IP 67 ingress protection
  • Support three streams
  • Smart analytics (optional): object removal detection, abnormal video signal detection, line crossing detection, and region intrusion detection.

Image Sensor1 / 2.5 "CMOS
Image Size3840 × 2160
Electronic Shutter1 / 25 s ~ 1 / 100000 s
Minimum Illumination

0.068 lux @F2.0, AGC ON; 0 lux with IR
0.024 lux @ F1.2, AGC ON; 0 lux with IR

Focal Length2.8mm
Angle Adjustment

Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°

IR Distance20 ~ 30 m
Wide Dynamic Range120dB
Video CompressionH.265 / H.264 / MJPEG
Video Resolution

8MP ( 3840 × 2160 ),2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240

Video Frame Rate
Main Stream60Hz : 8MP(1~30fps)/ 2K(1~30fps)/ 3MP(1~30fps)/1080P(1~30fps)/ 720P(1~30fps)
50Hz : 8MP(1~25fps)/2K(1~25fps)/3MP(1~25fps)/1080P(1~25fps)/ 720P(1~25fps)
Sub Stream60Hz : 1080P/720P/D1(1~30fps); 50HZ:1080P/720P/D1(1~25fps)
Third Stream60Hz : 720P/D1/CIF/480x240 (1~30fps);
50HZ: 720P/D1/CIF/480x240 (1~25fps)
Video Bitrate

128 Kbps ~ 12 Mbps

BLC ModeSupport
HLCSupport
ROIEach ROI to be configured separately
Digital Noise Reduction3D DNR
DefogSupport
Audio CompressionG711A / U
Audio InMIC IN × 1; built-in MIC × 1
Face DetectionPupil distance of a facial image over 20 pixel can be detected
Face CapturingBy precision detecting, tracing, capturing, scoring and screening the moving faces to get the most effective face snapshots
Panorama CapturingSupport panorama capturing and self-defined information overlay, like device ID, time, etc.
Intelligent Light CompensationBuilt-in high efficient white light LEDs, time switch available
EthernetRJ45
Network ProtocolUDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPs, QoS
StorageNetwork remote storage; micro SD card storage
Storage CardBuilt-in micro SD card slot; up to 128GB
General Function

Watermark, IP address filtering, video mask, heartbeat, password protection

MobileiPhone, Android
Video OutputCVBS output (BNC × 1)
Power SupplyDC12V/PoE
Power Consumption< 6W
Operating Temperature- 30 °C ~ 60 (-22°F~140°F) Humidity: less than 95 % (non condensing)
Ingress ProtectionIP 67
DimensionsΦ 94.6mm × 82.8mm
WeightApprox. 0.47KG
    • 60% less
    Market price:$749.00 save $450.00
  • $299.00

OR

Automatic Face Recognition and Actions:

Face Recognition is based on deep learning algorithms. It automatically captures faces in real time, compares or adds faces to a pre-defined list, and then takes appropriate action such as generating an alert once the captured face matches a pre-defined face list in the database

8MP Network IR Water-proof Dome Camera, 2.8mm Lens, 20~30m IR distance, WDR, PoE, IP67

Features:

  • 8MP ( 3840 × 2160 ) H.265 coding
  • Max.resolution: 3840 2160
  • ICR auto switch, true day/night, ROI coding
  • 3D DNR, TRUE WDR, HLC, BLC, Smart IR, defog
  • 20~30m IR night view distance
  • One CVBS output; One MIC IN and one built-in MIC
  • Support smart phone, iPad, remote monitoring
  • DC12V/PoE power supply
  • P2P function optional
  • IP 67 ingress protection
  • Support three streams
  • Smart analytics (optional): object removal detection, abnormal video signal detection, line crossing detection, and region intrusion detection.

Image Sensor1 / 2.5 "CMOS
Image Size3840 × 2160
Electronic Shutter1 / 25 s ~ 1 / 100000 s
Minimum Illumination

0.068 lux @F2.0, AGC ON; 0 lux with IR
0.024 lux @ F1.2, AGC ON; 0 lux with IR

Focal Length2.8mm
Angle Adjustment

Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°

IR Distance20 ~ 30 m
Wide Dynamic Range120dB
Video CompressionH.265 / H.264 / MJPEG
Video Resolution

8MP ( 3840 × 2160 ),2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240

Video Frame Rate
Main Stream60Hz : 8MP(1~30fps)/ 2K(1~30fps)/ 3MP(1~30fps)/1080P(1~30fps)/ 720P(1~30fps)
50Hz : 8MP(1~25fps)/2K(1~25fps)/3MP(1~25fps)/1080P(1~25fps)/ 720P(1~25fps)
Sub Stream60Hz : 1080P/720P/D1(1~30fps); 50HZ:1080P/720P/D1(1~25fps)
Third Stream60Hz : 720P/D1/CIF/480x240 (1~30fps);
50HZ: 720P/D1/CIF/480x240 (1~25fps)
Video Bitrate

128 Kbps ~ 12 Mbps

BLC ModeSupport
HLCSupport
ROIEach ROI to be configured separately
Digital Noise Reduction3D DNR
DefogSupport
Audio CompressionG711A / U
Audio InMIC IN × 1; built-in MIC × 1
Face DetectionPupil distance of a facial image over 20 pixel can be detected
Face CapturingBy precision detecting, tracing, capturing, scoring and screening the moving faces to get the most effective face snapshots
Panorama CapturingSupport panorama capturing and self-defined information overlay, like device ID, time, etc.
Intelligent Light CompensationBuilt-in high efficient white light LEDs, time switch available
EthernetRJ45
Network ProtocolUDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPs, QoS
StorageNetwork remote storage; micro SD card storage
Storage CardBuilt-in micro SD card slot; up to 128GB
General Function

Watermark, IP address filtering, video mask, heartbeat, password protection

MobileiPhone, Android
Video OutputCVBS output (BNC × 1)
Power SupplyDC12V/PoE
Power Consumption< 6W
Operating Temperature- 30 °C ~ 60 (-22°F~140°F) Humidity: less than 95 % (non condensing)
Ingress ProtectionIP 67
DimensionsΦ 94.6mm × 82.8mm
WeightApprox. 0.47KG
    • SKU
      IP-5IRD8001-W-2.8
  • Manufacturer
    Worldeyecam
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
