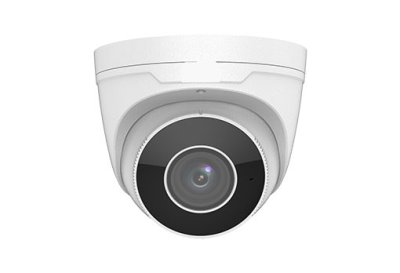

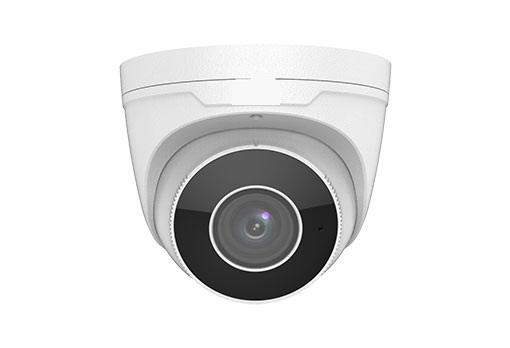

8MP WDR (Motorized)VF Eyeball Network IR Camera


$450.00


Availability: In Stock
List Price: $900.00
SKU: WEC3638SR3-DPZ
Product #: 99739
Manufacturer:
Camera Resolution: 8 Megapixel
Camera Signal: IP
Lens Size: 12mm
Optical Zoom: Motorized Zoom

Quantity

  • • 1/2.0",progressive scan,CMOS
    • Up to 3840×2160 resolution,20fps
    • 2.8~12 mm
    • Smart IR, up to 30m IR distance
    • 2D/3D DNR, ROI, 9:16 corridor mode, ONVIF
    • Ultra 265,H.265,ONVIF
    • DC12V,PoE.Wide voltage range of ±25%
    • IP67
 WEC3638SR3-DPZ
Camera
Sensor1/2", 8.0 megapixel, progressive scan, CMOS
Lens2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.86325.212.66.3
122701085427
Angle of view (H)114.8° ~ 47.3°
Angle of View (V)75.3° ~ 20.4°
Angle of View (O)141.2° ~ 55.8°
Adjustment angle Pan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.003Lux (F1.5, AGC ON)
0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265 , H.264,MJPEG
Frame RateMain Stream: 8MP (3840*2160), Max 20fps; 5MP (2592*1944), Max 30fps; 5MP (2944*1656), Max 30fps;
4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
RecognitionFace detection, Audio detection
Intelligent IdentificationDefocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Interface
Built-in MicSupported
Network1 RJ45 10M/100M Base-TX Ethernet
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.16W
Dimensions (Ø x H)Φ129 x 110mm (Ø5.08” x 4.3”)
Weight0.82kg (1.8lb)
Working Environment-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Reset ButtonSupported
Ingress ProtectionIP67

Data Sheet

User manual

WEC3600 Series-Network Mini Dome Cameras Quick Guide-V1.01

Camera Installation Guide-V1.00
