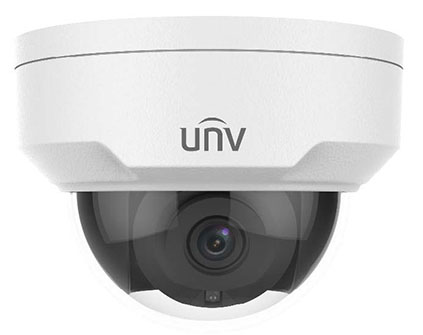

8MP LightHunter Deep Learning Dome Network Camera SV-DV8

Uniview
SKU: UN-IPC328SS-DF40K-I0
  • Optics

    * 1/2.8’’, Powered by lighthunter

    * Smart IR, up to 50m (164 ft) IR distance

    * Up to 120 dB Optical WDR (Wide Dynamic Range)

    Smart

    * Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

    * People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

    Compression

    * Ultra 265, H.265, H.264, MJPEG

    * Triple streams

    * 3840*2160@20fps in the main stream

    * ROI (Region of Interest)

    Network

    * ONVIF Conformance

    Structure

    * DC12V or PoE power supply

    * Wide voltage range of ±25% in DC

    * Micro SD, up to 256 GB

    * Alarm 1 in and 1 out, Audio 1 in and 1 out

    * IP67 ingress protection

    * IK10 vandal resistant

    • 32% less
    Market price:$370.00 save $118.01
  • $251.99
Qty:
OR

The 8MP LightHunter Deep Learning Dome Network Camera (SV-DV8) is a state-of-the-art security camera that features advanced deep learning technology for enhanced security and surveillance capabilities. With an 8-megapixel CMOS sensor, this camera provides stunning 4K Ultra HD video quality, delivering clear and detailed images in any lighting conditions.

The LightHunter technology, which includes an F1.5 aperture lens and a larger image sensor, allows the camera to capture more light, resulting in brighter, clearer images even in low-light environments. Additionally, the camera features a variety of advanced technologies such as 120dB True WDR, 3D DNR, HLC, and BLC, which combine to provide exceptional image quality in a range of challenging lighting conditions.

The camera also incorporates deep learning technology, which enables it to accurately detect and classify people and vehicles, reducing false alarms and improving security efficiency. The deep learning algorithm can also detect abnormal events, such as people loitering, and send real-time alerts to security personnel.

The camera is designed for outdoor use and comes with a vandal-resistant housing that is rated IK10 for impact resistance and IP67 for weatherproofing. The housing also features an adjustable base, allowing the camera to be mounted at the perfect angle for optimal coverage. The camera supports Power over Ethernet (PoE) and can be easily integrated into any existing security system using the ONVIF protocol.

Overall, the 8MP LightHunter Deep Learning Dome Network Camera is an excellent choice for anyone seeking advanced security and surveillance capabilities in a durable and reliable package.



 IPC328SS-DF28K-I0IPC328SS-DF40K-I0
Camera
Sensor1/2.8", 8.0 megapixel, progressive scan, CMOS
Lens2.8mm@F1.64.0mm@F1.6
IrisFixed
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.886.9(285.1ft)34.8(114.0ft)17.4(57.0ft)8.7(28.5ft)
4.0124.1(407.3ft)49.7(162.9ft)24.8(81.5ft)12.4(40.7ft)
Angle of View (H)96.6°86.5°
Angle of View (V)50.8°48.2°
Angle of View (O)125.6°106.4°
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan: 0°~355°Tilt: 0°~80°Rotate: 0°~355°
Min. IlluminationColour:0.003lux (F1.6, AGC ON)
0 lux with IR
WDR120dB
Day/NightIR-cut filter with auto switch (ICR)
S/N>56dB
IR RangeUp to 50m (164 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 8MP(3840*2160),Max 20fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate128 Kbps~16 Mbps
ROISupported
Video streamTriple streams
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas(8 blacks/8 mosaics)
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLCSupport
BLCSupport
Events
General FunctionWatermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711U,G.711A
Two-way AudioSupported
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
EZLive
Ezview
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Audio I/OAudio cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1/1
Network1 * RJ45 10M/100M Base-TX Ethernet
Certification
CertificationsCE: EN 60950-1
UL: UL 60950-1
FCC: FCC Part 15
General

Power

DC12V(±25%), PoE(IEEE 802.3af)
Power consumption: Max 5W
Dimensions (Ø x H)Φ109 x 81mm(Φ4.3’’ x 3.2’’)
Weight0.43kg(0.95lb)
Working Environment-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
surge protection2KV
Vandal ResistantIK10
Ingress ProtectionIP67
    • SKU
      UN-IPC328SS-DF40K-I0
    • Weight
      0.99 lbs
  • Manufacturer
    Uniview
  • Camera Signal
    IP
