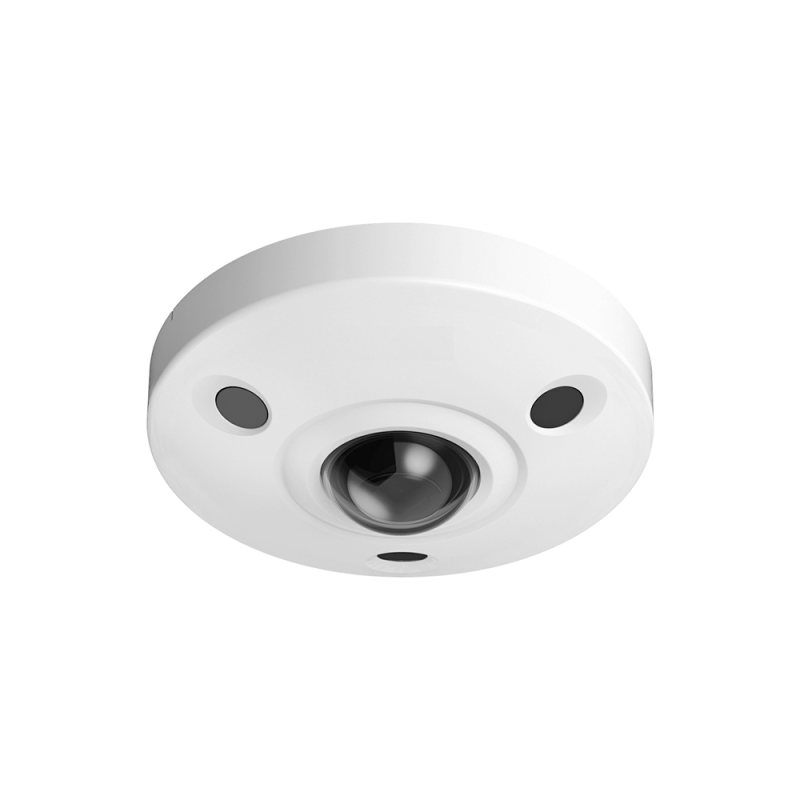

8MP HDCVI IR-Fisheye Camera


$678.00


Availability: In Stock
List Price: $1,356.00
SKU: WECHAC-EBW3802
Product #: 99573
Manufacturer:
Camera Resolution: 8 Megapixel
Camera Signal: HD-CVI

Quantity

> 1/2” 8Megapixel progressive scan CMOS
> Panoramic fisheye lens
> Max. 15fps@4K
> 120db true WDR,2D&3D NR
> On-device lens distortion correction
> Max.15m IR distance
> IP67&IK10 ingress protection
> Up to 500m transmission with RG59 coaxial cable

System Overview

The 4K HDCVI fisheye camera adopts a panoramic fisheye lens and 1/2" 8MP high performance image sensor, as well as a 15m IR range, enabling a full overview and superior image details with 4K resolution. That makes it easy to collect evidence at any time of day for effective playback and analysis. With the use of advanced algorithms, more than 10+ dewarping modes are available on the XVR (select models) and mobile client. Its panoramic view and 4K resolution makes the camera an ideal choice for large-size businesses and places such as airports, stadiums, parking lots, and shopping malls.

Functions

Fisheye Panoramic View

HAC-EBW3802 offers a panoramic view based on three installation modes(ceiling/ground/wall)with up to 95% sensor pixel utilization.As a result you can recognize a person's face over 10 meters away.The camera is able to provide a crystal clear image and broad coverage of wide and open areas, such as airports, shopping malls, retail stores, offices and more.So you wil get a overall sight just with one fisheye camera over coax.

Fisheye-Dewarping

Fisheye dewarping is a function to solve the serious distortion problem of the circular panoramic view and you will use up to 10-modes dewarping mode for different installations with HDCVR,Web and SmartPSS.Every dewarping area is adjustable and optional as you want.

On-Device Lens Distortion Correction

On-device lens distortion correction is another great innovation of HDCVI technology for correcting the fisheye panoramic image to a 16:9 full screen with two optional modes by the camera itself.One is Vertical&Horizontal (V&H)mode which can provide an image without any distortion and angle of view is about H:170°,V:88 °.Another is Vertical(V) mode that can enable the camera to output an image with H:176°,V:73 ° view angle.

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. * Audio input is available for some models of HDCVI cameras.

Long Distance Transmission

HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700m transmission for 4K and 4MP HD video via coaxial cable, and up to 300m via UTP cable.*

*Actual results verified by real-scene testing in worldeyecam's test laboratory.

Simplicity

HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach provides full HD video surveillance without the hassle of configuring a network.

Multi-outputs

The camera supports HDCVI and CVBS signal outputs simultaneously with two BNC connectors. Multi-outputs facilitates construction in situations such as debugging with a tester. It also offers the possibility for cooperating with multiple devices including analog matrix or monitor.

Wide Dynamic Range

Embedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Advanced 3DNR

3DNR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. worldeyecam’s advanced 3DNR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3DNR effectively decreases the band width and saves the storage space.

Protection

The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against vandalism with IK10-rated, making it suitable for most environment such as retail stores,manufacturing and commercial facilities.

Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of outdoor lightning.



Camera

Image Sensor

1/1.8" 8MP CMOS

Effective Pixels

3840(H)×2160(V)

Scanning System

Progressive

Electronic Shutter Speed

PAL:1/4s~1/100,000s

NTSC:1/3s~1/100,000s

Minimum Illumination

0.005Lux/F2.0 (Color), 30IRE,0lux IR on

S/N Ratio

More than 65dB

IR Distance

15m

IR On/Off Control

Auto (ICR)/Color/B/W

IR LEDs

3

Audio

Built-in mic

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

2.5mm

Max Aperture

F2.0

Angle of View

H: 180°,V:100°

Focus Control

N/A

Close Focus Distance

0.6m(23.6'')

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.



DORI

Definition

Distance

Detect

25px/m

(8px/ft)

53m(173.8ft)

Observe

63px/m

(19px/ft)

21.2m(69.6ft)

Recognize

125px/m

(38px/ft)

10.6m(34.7ft)

Identify

250ppm

(76px/ft)

5.3m(17.4ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: NA

Tilt: NA

Rotation: NA

Video

Resolution

8MP (3840×2160)/4M(2560x1440)

Frame Rate

PAL:3840×2160@12.5fps,2560x1440@25fps;

NTSC:3840×2160@15fps,2560x1440@30fps;

Video Output

1-channel HDCVI 4K video output & 1-channel CVBS video output

Day/Night

Auto (Electronic) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

120dB

Gain Control

AGC

Noise Reduction

2D/3D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Alarm I/O

2/1

Eelectrical

Power Supply

DC12V ±25%

Power Consumption

7.4W (IR ON)

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

IP67&IK10

Construction

Casing

Aluminium

Dimensions

Φ149.8mm x 47.7mm(Φ5.9"x 1,88")

Net Weight

0.56kg (1.23lb)

Gross Weight

0.92kg (2.02lb)



Data Sheet



Drawings



Drawings
