8 Channel 1U 8PoE 4K&H.265 Lite Network Video Recorder | NVR302A-08/8P-4KS2 8 Channel 1U 8PoE 4K&H.265 Lite Network Video Recorder, H.265/H.264, HDMI/VGA, 8CH IPC, 2 SATA, 2 USB Features

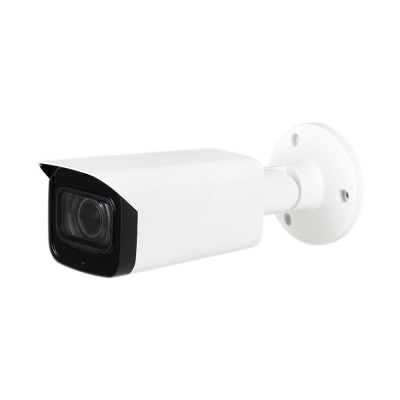

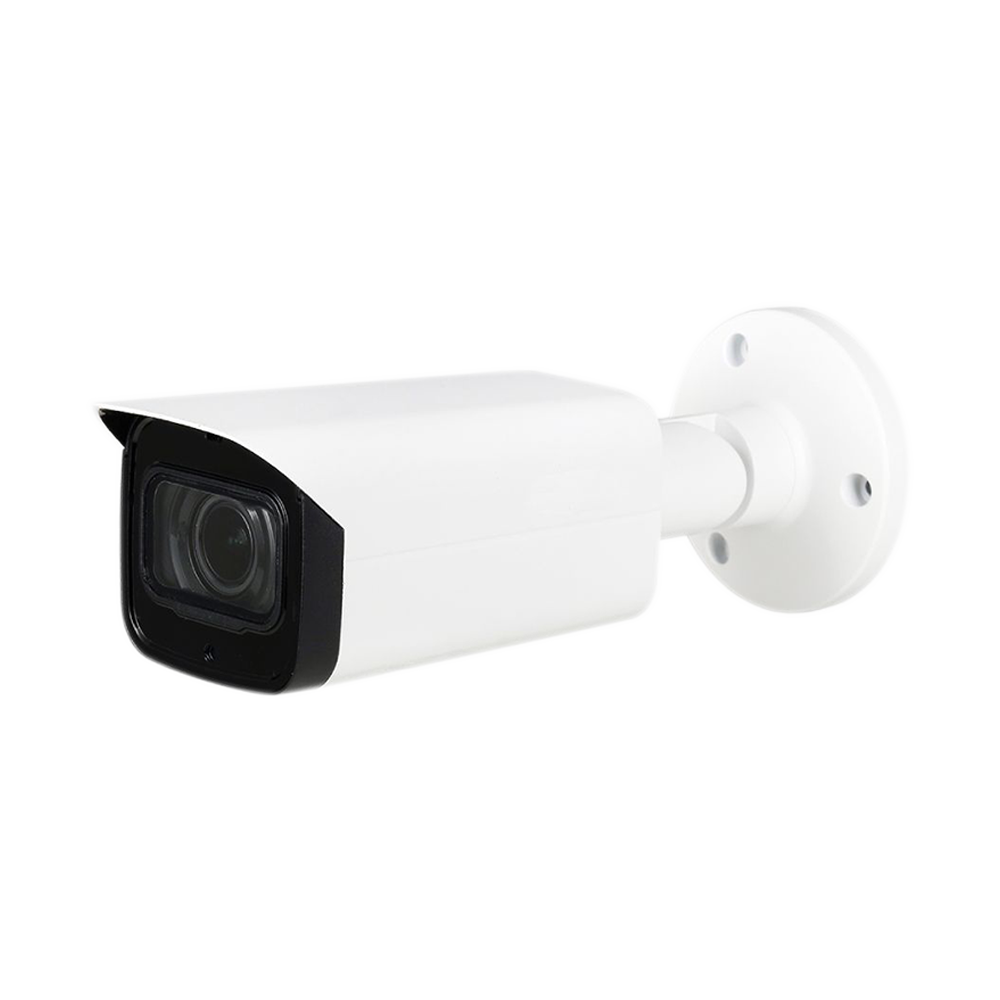

(8) 8MP WDR IR Mini Bullet Network Camera | HNC5V181T-IRASE/4 1/2.5” 8MP WDR IR Mini Bullet Network Camera, H.265&H.264, 5fps@4K, 25/30fps@3M, 2.8mm Lens, WDR, Smart Detection, Micro SD Memory,IP67, PoE Features

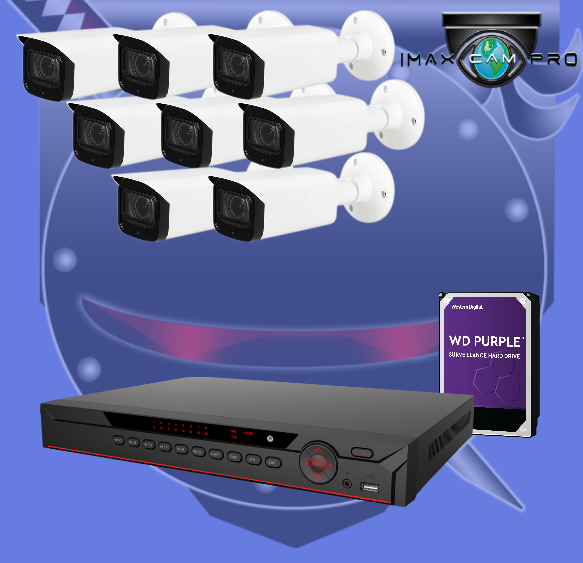

This IP surveillance system kit comes with a 16 channel NVR with PoE+ and 8 HD 4MP Motorized mini bullet security cameras. The NVR comes with a free pre-installed 1TB HDD and can record up to 4K (2560×1440) resolution on all 16 channels. The mini bullet security cameras capture 4mp resolution footage and transmit that footage to the NVR via the included RJ45 cable. The kit also comes with FREE Monitoring Software so you can monitor your surveillance footage from anywhere.
What's Included
Universal NVR Recorder
(8) 8MP WDR IR Mini Bullet Network Camera  PoE ready with your selective network cables  (1) FREE 1 TB Hard Drive  Lifetime Technical Support
 Mobile apps & Monitoring Software  2 Year Warranty

Push Alerts & Automatic E-mailSet your NVR to automatically send you an e-mail or a Push notification with video clip every time there is a motion triggered event, so you'll never miss anything important.
Face DetectionThe Face Detection function is used to search for or identify individuals. The Smart Search function assists you in easily finding any motion detection footage for future analysis, making monitoring simple and effective.
|
NVR Specs
| System Compression | Quad-core embedded processor |
|---|---|
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Video Output | 1 HDMI, 1 VGA |
| Video Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| IP Camera Input | 8CH |
| Display Split | 1/4/8/9 |
| Recording Resolution | 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
| Recording Rate | 200Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Audio In | 1 |
| Audio Out | 1 |
| 2 Way Audio | 1 Channel Input, 1 Channel Output, RCA |
| Alarm In | 4 Channel |
| Alarm Out | 2 Channel |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Alarm Relay Output | 2 Channel |
| Playback Channels | 1/4/8 |
| Playback Search | Time/Calendar Search, Event (motion) |
| Playback Function | Play, Pause, FF, FB; Digital zoom |
| Backup Mode | USB Device/Network |
| Performance | Max 12 face pictures /sec processing 2 channel video stream face recognition 8 channel picture stream face recognition ( with FD camera) |
| Stranger Mode | Detect strangers' faces(not in device's face database). Similarity threshold can be set manually. |
| AI Search | Up to 8 target face images search at same time, similarity threshold can be set for each target face image. |
| Database Management | Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries®ions and state can be added to each face picture. |
| Database Application | Each database can be applied to video channels independently. |
| Network Interface | 1 RJ-45 Port (10/100/1000Mbps) |
| PoE Ports | 1 Independent 1000Mbps Ethernet Port |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip |
| Network Max. Users | 128 users |
| Mobile | iPhone, Android |
| USB | 2 ports (1 USB2.0, 1 USB3.0) |
| RS485 | N/A |
| RS232 | N/A |
| Internal HDD | 2 SATA III Ports, Up to 6 TB capacity for each HDD |
| e-SATA | N/A |
| Power Supply | AC100V ~ 240V, 50 ~ 60 Hz |
| Power Consumption | NVR: < 9.6W(without HDD) PoE: Max 25.5w for single port, 130w in total |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Dimensions | 1U, 375mm×327.5mm×53mm (14.8" x 12.9" x2.1") |
| Weight | Net Weight 2.6kg (5.7 lb) (without HDD) Gross Weight 4kg(8.8 lb)(without HDD) |
Camera Specs
| Image Sensor | 1/2.5” 8Megapixel progressive scan CMOS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Size | 3840(H)x2160(V) | ||||||||||
| RAM/ROM | 512MB/32MB | ||||||||||
| Electronic Shutter | Auto/Manual, 1/3~1/100000s | ||||||||||
| Minimum Illumination |
0.06Lux/F1.6 (Color,1/3s,30IRE) |
||||||||||
| S/N Ratio | > 50dB | ||||||||||
| IR LEDs | 2 | ||||||||||
| Smart IR | Support | ||||||||||
| IR Distance | Distance up to 40m (131ft) | ||||||||||
| IR On/Off Control | Auto/Manual | ||||||||||
| Focal Length | 2.8mm | ||||||||||
| Angle of View | H: 112°, V:69° | ||||||||||
| Max. Aperture | F1.6 | ||||||||||
| Optical Zoom | N/A | ||||||||||
| Close Focus Distance | 0.9m | ||||||||||
| DORI Distance |
|
||||||||||
| Pan / Tilt / Rotation | Pan:0?~360?; Tilt:0?~90?; Rotation:0?~360? | ||||||||||
| Video Compression | H.265+/H.265/H.264+/H.264 | ||||||||||
| Streaming Capability | 3 Streams | ||||||||||
| Video Resolution |
4K(3840×2160)/ 6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(128 0x960)/ 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240) |
||||||||||
| Video Frame Rate |
Main Stream: 4K(1~15fps)/3M(1~25/30fps)
|
||||||||||
| Video Bitrate |
H.264: 24~10240Kbps |
||||||||||
| Day / Night | Auto(ICR) / Color / B/W | ||||||||||
| BLC Mode | BLC / HLC / WDR | ||||||||||
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||||||||
| Gain Control | Auto/Manual | ||||||||||
| Digital Noise Reduction | 3D DNR | ||||||||||
| Motion Detection | Off / On (4 Zone, Rectangle) | ||||||||||
| Region of Interest | Off / On (4 Zone) | ||||||||||
| Electronic Image Stabilization (EIS) | N/A | ||||||||||
| Defog | N/A | ||||||||||
| Digital Zoom | 16x | ||||||||||
| Flip | 0°/90°/180°/270° | ||||||||||
| Mirror | Off / On | ||||||||||
| Privacy Masking | Off / On (4 Area, Rectangle) | ||||||||||
| Audio Compression | N/A | ||||||||||
| IPC Alarm | N/A | ||||||||||
| Alarm In | N/A | ||||||||||
| Alarm Out | N/A | ||||||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||||||
| AI Perimeter Protection | Tripwire, Intrusion, Object Abandoned/Missing | ||||||||||
| Advanced AI Functions | Face Detection | ||||||||||
| Ethernet | RJ-45 (100/1000Base-T) | ||||||||||
| Network Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
||||||||||
| Network Interoperability | ONVIF, PSIA, CGI | ||||||||||
| Streaming Method | Unicast / Multicast | ||||||||||
| Network Max. Users | 10 Users/20 Users | ||||||||||
| Storage | NAS Local PC for instant recording | ||||||||||
| Storage Card | Mirco SD card 128GB | ||||||||||
| Web Viewer | IE, Chrome, Firefox, Safari | ||||||||||
| Management Software | Smart PSS, DSS, Easy4ip | ||||||||||
| Mobile | iPhone, Android | ||||||||||
| Video Output | N/A | ||||||||||
| Certifications | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
||||||||||
| Audio Interface | N/A | ||||||||||
| RS485 | N/A | ||||||||||
| Power Supply | DC12V, PoE (802.3af)(Class 0) | ||||||||||
| Power Consumption | <6.5W | ||||||||||
| Operating Temperature | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||||||||
| Storage Temperature | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||||||||
| Ingress Protection | IP67 | ||||||||||
| Dimensions | 180mm×70mm×70mm (7.09”×2.76”×2.76”) | ||||||||||
| Weight | Net Weight 0.41kg (0.91lb) Gross Weight 0.53 kg (1.17lb) |
Mobile Apps
HOW TO ACCESS SYSTEM USING P2P VIA MOBILE APPLICATION
View your recorder and cameras on the go. The Mobile Application IDMSS (IOS) / GDMSS (Android) allows you to add IMAXPRO recorders and cameras to the mobile app using P2P.
PREREQUISITES
- Smartphone (IOS device or Android)
- IDMSS/GDMSS already downloadedin your mobile device.
- P2P must be turned on from the recorder and connected to a network with internet access.
STEP BY STEP INSTRUCTION
(VERSION 4.50.000)
1. Open iDMSS/gDMSS on the phone, and select the home icon located on the top left corner.
2. Select the "Device" button/icon on the bottom to add the recorder/camera.
3. Select the "+" sign then select "Scan" to add the device.
4. Select the Device you want to Connect (If you have a wired Camera, Please choose Wired Camera).
5. Input the device for easy identification. It's required to input the password for the added device then select the save icon located on the top right corner.
