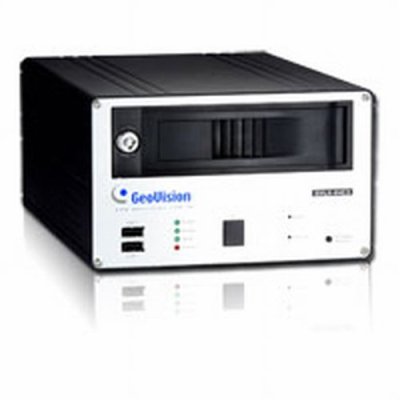

84-LX4C2-131 Geovision Compact DVR MPEG-4 120FPS


$753.00


Availability: In Stock
Ships within 1 to 12 Hours
List Price: $1,004.00
SKU: WEC84-LX4C2-131
Product #: 25365
Manufacturer:
Shipping Lead Time: Ships within 1 to 12 Hours
Recorder Type: DVR

Warranty:
Remote Login Support:
Quantity

  • Model Number: GV-COMPACTDVR
  • Manufacturer Part Number: 84-LX4C2-130
  • MPEG-4 video compression
  • Up to 4 channels for audio and video recording and playback
  • Up to 720 x 480 (NTSC) / 720 x 576 ( PAL ) recording resolution
  • Up to 120 images per second reocording rate at D1 resolution
  • Up to 1 SATA HDD, 2 external USB HDDs
  • Viewlog search by calendar date/time format
  • Professional Web & OSD control
  • TV/VGA output with spot monitor
  • Support digital I/O
  • Scalable motion detection
  • Video signal auto detection
  • Support Center V2, VSM, remote playback
  • Support GPS, UMTS (3G)
  • Intregration with Access Control systems



GV-Compact DVR is an embedded system that supports MPEG-4 compression with superior network functions. It captures video at up to 120 fps with 2 CIF (half D1) resolution, and allows independent adjustment settings for channel resolution, quality and frame rate. With special graphic design and user-friendly web and on-screen-display controls, the system can be set up quickly and easily. When connecting with GV-CMS series, the system is available with perfect remote central monitoring and various other control features. When connected via a UMTS/3.5 modem, the GV-Compact DVR becomes a perfect mobile solution thanks to the GPS feature with real time video tracking. Most important of all, the GV-Compact DVR is fully compatible with GeoVision surveillance system in providing a total surveillance solution.

SPECIFICATIONS
Models GV-Compact DVR
No. of channels 4 Video / Audio Ports
Compression Format MPEG4 ASP
Resolution D1, Half D1, CIF
Frame Rate 120/100 fps in 2CIF (half D1) (NTSC / PAL)
Image setting Brightness, Contrast, Saturation, Hue
Audio G.723
Security IP address filtering
Alarms and Events Management Events triggered by motion detection, digital inputs
Image and notification upload over TCP and CMS
Digital output to diverse relay
PTZ A large variety of PTZ and dome cameras are supported
Connectors Input: 4 Video, 4 Audio
Output: TV out, Spot out, VGA out, 4 Video loop out, 4 Audio out
Ethernet: 10/100Base-T
Terminal Block : 4 Digital Input, 4 Digital Output, RS-485
*RS-232 (for debug use only)
2 x USB 2.0
Installation Local configuration / Web-based configuration
Management Maintenance Firmware upgrade through USB storage / Web Browser
Access from Web browser Camera Live View, video recording, change video quality, zoom in/out, bandwidth control, image snapshot, PTZ control, Digital I/O control, Audio
Protocols HTTP, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS
Applications 3G Mobile Phone: built-in player (CIF resolution only )
Live Viewing: IE , Multiview
CMS Server Supports: CenterV2, VSM, Control Center
Network Storage: GV-NVR, GV-Multicam
Wireless Optional Wireless USB Connection
Storage iSCSI Storage Server
Optional IDE HDD
Backup Optional External DVR-RW
GPS Yes
Operating Temperature -20°C ~ 60°C
Dimensions (W x H x D) 176 x 105 x 253 (mm)
Language Support English
*Note: Product design and specifications are subject to change without notice.
