8 Sony CCD Dome Cameras with Networking MPEG4 DVR, CD Burner & Hard Drive AccuDome WYCM-45DVH/WAVC-785 8-Channel DVR Video Surveillance System

SKU: WAVC-785-WYCM-45DVH-KIT

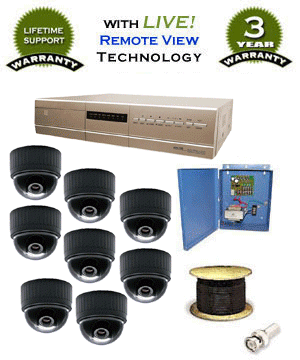

This 8 Channel Video Package Includes:

(1) WAVC-785 8 Channel MPEG-4 Digital Video Recorder ( DVR )
(8) AccuDome WYCM-45DVH Digital CCD Color Dome Security Cameras
(1) 8 Camera 12VDC Fully-Regulated, Distributed, Power Supply UL APPROVED
(8) 100' Video/Power Cables & Cable Connectors

Manufacturer
Hard Drive
CD Backup Recorder
Optional Monitor
Monitor Output
Cables
Extended Warranty

Shipping info
We deliver worldwide
Learn more
Payment methods
Learn more
Return Policy
We accept returns
Learn more
Customer Reviews
Check out our customer Reviews
Learn more

This 8 Channel Video Package Includes:

(1) WAVC-785 8 Channel MPEG-4 Digital Video Recorder ( DVR )
(8) AccuDome WYCM-45DVH Digital CCD Color Dome Security Cameras
(1) 8 Camera 12VDC Fully-Regulated, Distributed, Power Supply UL APPROVED
(8) 100' Video/Power Cables & Cable Connectors

CAMERA DETAILS:

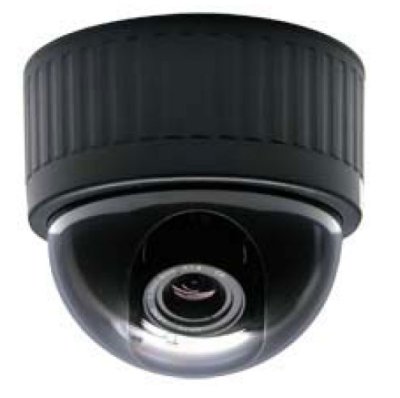

AccuDome WYCM-45DVH Digital CCD Color Dome Security Camera

Product Features:

Sony Super HAD Technology
1/3 Inch Format CCD Sensor
Digital Signal Processing
480 Max TV Lines Resolution
Electronic Iris Control
Aesthetic Dome Housing
3.5mm - 8mm Varifocal Lens

The AccuDome WYCM-45DVH Digital CCD Color Dome Security Camera is an entry level, varifocal, high resolution dome camera providing a very clean surveillance installation.

The AccuDome WYCM-45DVH features a high resolution Sony Super HAD 480 line CCD sensor with an electronic iris, allowing automatic compensation for varying light levels. Excellent picture quality is assured with 480 TV lines resolution and low 0.2 lux sensitivity. With 2 plane mounting options, the WYCM-45DVH can be mounted on the wall, ceiling, or angled surfaces. The WYCM-45DVH includes a 3.5-8mm built-in varifocal lens taking the guesswork out of lens selection.

The non-intrusive, discreet housing is ideal for retail or public installs. Compact and simple design allows for a quick installation. This professional Sony CCD dome camera provides stunning color surveillance with a very sharp picture. Proven performance, reliability, and discreet for any low profile installation.

Technical Specifications

Camera

Sensor Type	1/3-inch Sony Super HAD CCD
Scanning System	2:1 Interface
Horizontal Resolution	480 TV Line
Iris Control	Auto
Auto Iris	A.E.S.
Minimum Illumination	0.2 Lux
S/N Ratio	>48dB
Electronic Shutter Speed	1/60 - 1/100,000 second
Gamma Correction	0.45
Signal Processing	Digital Signal Processing (DSP)
Video Output	1.0Vp-p(Sync, Negative), 75 ohms

Electrical

Power Requirements	Regulated 12V DC
Power Consumption	125mA
Power Connector	2.1x5.5, center positive
Video Connector	BNC

Mechanical

Lens Type	Internal 3.5mm - 8mm Varifocal

Environmental

Operating Temperature	32 - 122 degrees F (0 to 50C)
Storage Temperature	23 to 131 degrees F (-5 to 55C)
Operating Humidity	85% RH Max. (no condensation)

Physical

Dimensions	110(H) x 119(D)mm
Weight	0.65 lb (0.29 kg) approx.
Shipping Weight	0.8 lbs (0.36 kg) approx.

[Click here for Product Specs]

DVR DETAILS:

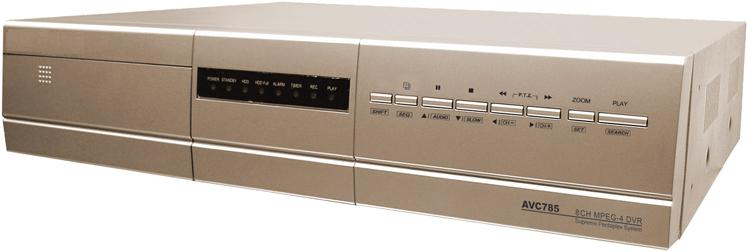

8 CH Digital Video Recorder

WAVC-785, 8 CH MPEG-4 real time Digital Video Recorder. It includes features such as MPEG-4 compression format, superior real time performance with 240 IPS (NTSC) / 200 IPS (PAL), longer recording time via independent disk array, USB backup function, remote surveillance on 3G & cellphone, advance motion trigger recording, and pentaplex functions. All the benefits of this product are created to secure your life every time and everywhere.

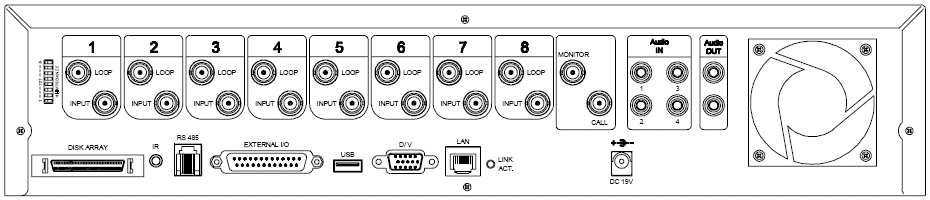

Connection

Features

Long recording time
Remote surveillance on mobile phone via 3G & GPRS, or on PC through internet connection
Easy backup with USB FLASH DRIVE
Alarm trigger recording will send images to designated e-mail and FTP address
Advanced motion detection function (4 different adjustable factors of motion detection sensitivity)
Convenient search function.
Web surveillance supports 5 viewers simultaneously
Support covert screen for live view channels
IR remote control of the system and PTZ through RS-485
Support PELCO-D protocol for PTZ Control
Support static IP, PPPOE, and DHCP with DDNS function
Record audio with 4ch in and 2ch mono audio out

Specifications

MODEL	AVC785
Video format	NTSC or PAL (switch able)
Video Compression Format	MPEG-4
Video Input	8 Channels. Composite video signal 1 Vp-p 75Ω BNC
Video Loop Out	8 Channels. Composite video signal 1 Vp-p 75Ω BNC
Video Output	Main Monitor Output : Composite video signal 1 Vp-p 75Ω BNC Call Monitor Output : Composite video signal 1 Vp-p 75Ω BNC
Recording Rate	Frame: 720 x 480 pixels with 60 IPS (NTSC) ;720 x 576 pixels with 50 IPS (PAL) CIF: 352 x 240 pixels with 240 IPS (NTSC) ;352 x 288 pixels with 200 IPS (PAL)
Adjustable Recording Speed	Frame: 60, 30, 15, 7 IPS / 50, 25, 12, 6 IPS CIF: 240, 120, 60, 30 IPS / 200, 100, 50, 25 IPS
Image Quality Setting	Best, high, normal, and basic
Hard Disk Storage	IDE type, ATA66, support HDD x 2, support each HDD capacity over 400GB
HDD Quick Format	HDD Quick Format 250GB under 2 seconds
Recoding Mode	Manual / timer / Motion / Alarm
Refresh Rate	240 frames per sec. for NTSC 200 frames per sec. for PAL
Pentaplex Operation	Pentaplex function (live display, record, playback, backup, and network)
Audio I/O	4 audio inputs, 2 audio outputs (Mono)
Motion Detect Area	16 x 12 grid per camera / 16 camera
Motion Detect Sensitivity	4 adjustable variable with precise calculation for motion detection
Pre-alarm Recording	Yes (8MB)
Backup Device	USB1.1 Backup, and Network Remote Recording Backup
Web Transmitting Compression Format	Motion JPEG
Ethernet	10/100 Base-T. Support Remote Control and Live View via Ethernet
Mobile Surveillance	Support GPRS to access the system via mobile phone (require J2ME, MIDP2.0 protocol)
Web Interface	Support licensed software AP, and IE browser
Remote Alarm Notification	E-mail Images, and Images Uploading to FTP Site's Specific Account
Network Connection	Support static IP, dynamic IP, and DHCP with DDNS function
Remote Control	Remote control DVR and PTZ via IR transmitter
PTZ	Support PELCO-D protocol
Dwell Time (Sequential Channel Switch)	Programmable With Adjustable Dwell Time
Alarm I/O	8 inputs, 1 output
Picture Zoom	Support 2X digital zoom function
Key Lock	Yes
Video Loss Detection	Yes
Camera Title	Support up to 6 letters
Video Adjustable	Hue / Color / Contrast / Brightness
Date Display Format	YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
