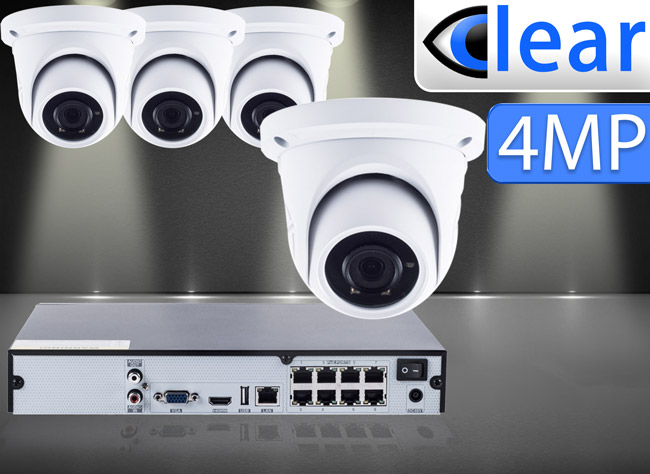

8 CH NVR with (4) IPX2 4 Megapixel, 3.6mm Lens, 30m IR, H.265, CVBS (BNC) Optional, Network IP Dome Camera


$646.00


Availability: In Stock
List Price: $1,817.00
SKU: CLR-IPX2-KIT-4
Product #: 91342
Manufacturer:

Hard Drive #1:
Cables:
Monitor:
Remote Login Support:
Quantity

What's Included




XVR Recorder

Network Video Recorder




(4) 4MP WDR IP IR Dome Camera



(4) FREE 100 FT RJ45 CABLES




(1) FREE 1 TB Hard Drive


Personal Virtual Technician



Mobile app & Desktop Software




2 Year Warranty








4MP@30FPS/ h.264/h.265/MJPEG compression algorithm capable infrared industrial dome 3 Axis indoor/outdoor 3.3-12mm Motorized Vari-Focal IP camera. 12VDC and Built-In PoE. 30M IR 3.5mm Audio In/Out, 1/1 Alarm in/out. Smart Analysis and triple stream capability. Control4 Drivers available.


Clear 4KNVR108-P Datasheet


Clear IPX2 Datasheet


Camera


Technical Specifications



CLR-G4-IPX2

Camera

Sensor

1/3” 4 Megapixel CMOS Image Sensor

Effective Pixels

2592 x 1520

Electronic Shutter

1/25s ~ 1/100,000s

Iris Type

Fixed Iris

Minimum Illumination

Color: 0.05Lux @F1.2 (AGC on) / 0Lux with IR on

Lens

3.6mm Fixed Lens

Angle of View (H)

Horizontal: 85°

Day/Night

IR-cut filter with auto switch (ICR)

Wide Dynamic Range

Digital WDR

Backlight Compensation (BLC)

n/a

Highlight Compensation (HLC

n/a

Defogging

n/a

Digital Noise Reduction

2DNR/3DNR




Video Compression

H.265 / H.264 / MJPEG

Resolution

4MP (2592 x 1520), 2K (2560 x 1440), 3MP (2304 x 1296), 3MP (2048 x 1536), 1080p (1920 x 1080), 720p (1280 x 720), D1, CIF, 480 x 240

Main Stream

60Hz: 4MP / 2K @ 1 - 20fps; 3MP / 1080p / 720p @ 1 - 30fps

Bit Rate

128Kbps - 8Mbps

Bit Rate Type

VBR or CBR

Quality

5 Levels using VBR, Manually assignable using CBR

Image Settings

ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic Range, Sharpness adjustable using CMS or IE web interface

Audio Compression

n/a

Region of Interest (ROI)

Up to 8 Areas

Interfaces



Network

10/100M RJ-45 Ethernet Interface

Audio

n/a

Video Output

n/a

Local Storage

n/a

RS-485

n/a

Alarm Input / Output

n/a

Operations



Remote Monitoring

Internet Explorer or CMS Software

Remote Connections

Up to 10 concurrent remote connections

Network Protocols

TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP

Compatibility

ONVIF Profile S (2.3)

Smart Alarm

Motion Detection

Smart Analysis

Object removal, line crossing and perimeter intrusion detection

PTZ Control

n/a

IR Distance

Up to 20m (66’)

Ingress Protection Rating

IP66

General



Power Requirement

DC12V or PoE (802.3af)

Power Consumption

Max 6.5W (IR on)

Dimension

Ø3.4” x 4.2”

Weight

~1lbs

Working Environment

4°F ~ 122°F, Humidity ≤ 90% RH(non-condensing)

Clear IPX2 Datasheet

NVR


Technical Specifications

CLR-4KNVR108-P

IP Camera Inputs

8 Channels

Video Output Interface

1 HDMI, 1 VGA

Display Resolution

HDMI: 4K (3840 x 2160); 1920 x 1080; 1280 x 1024

VGA: 1920 x 1080; 1280 x 1024

Audio Output Interface

1 Channel, RCA Audio Output

Two-way Audio

1 Channel, RCA Audio Input

Recording Resolution

8MP /  5MP / 4MP / 3MP / 1080p / 960p / 720p

Recording Bandwidth

50Mbps

Simultaneous Playback

Maximum 8 channels

Alarm Inputs

n/a

Relay Outputs

n/a

Network interface

1 x 10/100M RJ-45 Ethernet Interface

PoE Ports

8 x 10/100M RJ-45 PoE Ports

Remote Connections

5 Concurrent Remote Users Maximum

HDD Interfaces

1 SATA interface, maximum 6TB

Backup Media

External USB or Network Download

USB Interfaces

2 x USB2.0 (1 Front, 1 Rear)

Power Supply

External DC48V Power Adapter

Power Consumption

<  5W (Without HDD)

Operating Environment

14° - 122°F, less than 90% Relative Humidity

Dimensions

11.8” x 10.6” x 2.2”

Weight (without HDD)

~6lbs



Clear 4KNVR108-P Datasheet
