8 HD 1080P Security Dome & HD-CVI DVR Kit for Business Professional Grade


$739.00


Availability: Out of Stock
List Price: $1,450.00
SKU: CVI-8CHD-1080P-KIT
Product #: 86198
Manufacturer:

HD-CVI DVR:
Hard Drive #1:
Power supply :
Cables:
Remote Login Support:
Quantity

The Company offers a complete line of Safety and Security, CCTV, access products. The Model is 8 HD 1080P Security Dome & HD-CVI DVR Kit for Business Professional Grade. This 8 channel kit comes with 8 dome security cameras recording up to 1080p resolution footage. The data is transmitted to the included 8 channel HDCVI DVR via RG59 coaxial cable. The kit also includes the necessary power supply and software for remote monitoring. The camera is featured 1/2.8" SONY 2.4MP CMOS Sensor. 2.4 Megapixel. 24 Pcs. IR 75ft. 3.6mm Fixed Lens. Weatherproof IP66 Rated. DC 12V 500mA. Auto gain control (AGC) Built-in auto gain control (AGC) circuit. The color camera can get high definition picture in low Lux condition. Auto Electronic Shutter (AES) Built-in auto electronic shutter function. The color camera’s AES speed can reach 1/100,000s. Gamma characteristic camera gamma characteristic is 0.45. Scanning Mode NTSC or PAL mode. The DVR is featured by  H.264 real-time recording and playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drives storage space. Remote monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device (Such as iPhone 6, iPhone 6 Plus, iPhone, iPad, iPad mini, and Androids devices). Central monitoring system: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address. Multiple Playback and recording options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features. E-map function support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space. Push alerts & automatic e-mail: Setup your DVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred. 3D intelligent positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications. Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications.

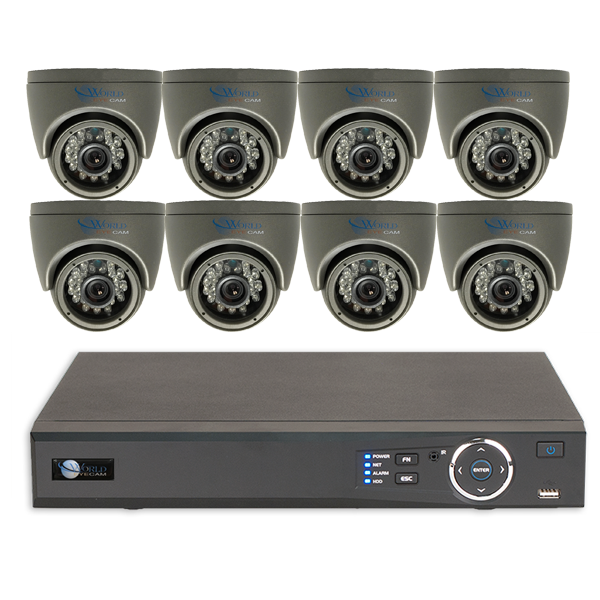

This 8 channel kit comes with 8 dome security cameras recording up to 1080p resolution footage. The data is transmitted to the included 8 channel HDCVI DVR via RG59 coaxial cable. The kit also includes the necessary power supply and software for remote monitoring.

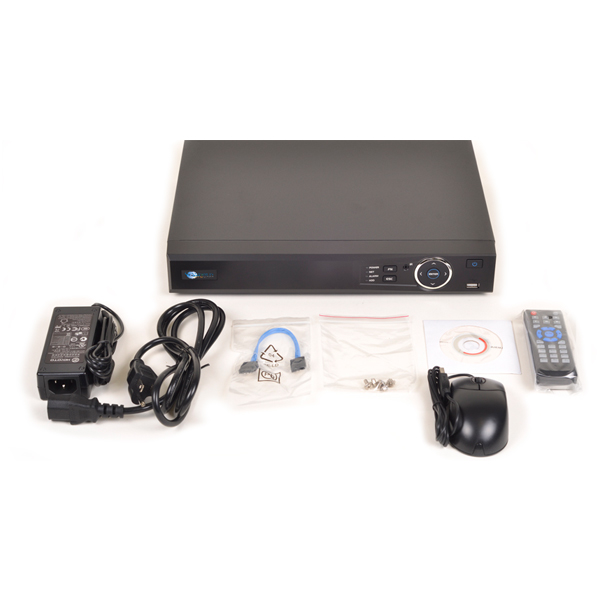

What's Included

  • (1) HD-CVI 1080p 30FPS 8 Channel DVR Recorder
  • (8) HD-CVI 2MP (1080P) Security Domes Cameras

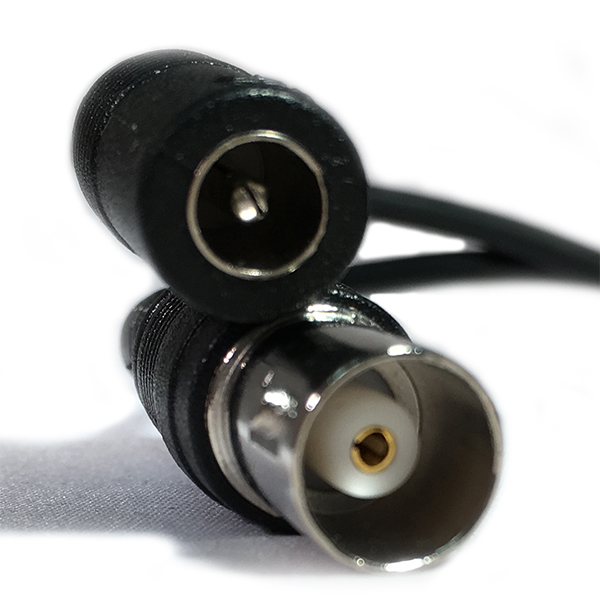

  • (1) FREE 500 FT Spool RG59 Siamese CCTV Coaxial Cable w/ connectors
  • (1) FREE 4 Camera Power Supply
  • Free mobile apps and monitoring software
  • Free lifetime technical support





SmartPSS software
Click/Tap on image for a more detailed view.





(CLICK HERE) To view image at full 1080P



(CLICK HERE) To view image at full 1080P



Why HD-AVS?

HD 1080p vs 720p vs 960h Resolution

HD 1080p vs 720p vs 960h Resolution
CLICK ON IMAGE TO ENLARGE IT

DVR Features

H.264 Real-time Recording and Playback

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

Remote Monitoring

Remote Monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device (Such as iPhone 6, iPhone 6 Plus, iPhone, iPad, iPad mini, and Androids devices).

Central Monitoring System

Central Monitoring System: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address.

Multiple Playback and Recording Options

Multiple Playback and Recording Options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features.

E-map Function Support

E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space.

Push Alerts & Automatic E-mail

Push Alerts & Automatic E-mail: Setup your DVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.

3D Intelligent Positioning

3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.

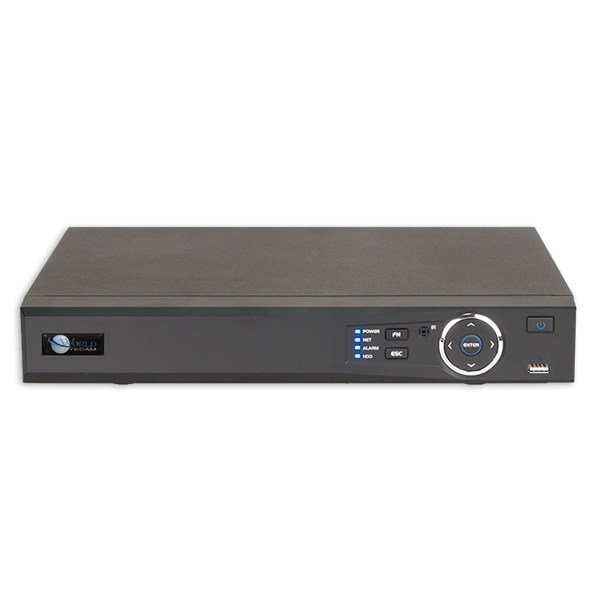

HD DVR


SPECIFICATIONS
Model IMAX-CVI-M8
System
Main Processor Embedded processor
Operating System Embedded LINUX
Video
Input 8 channel, BNC
Standard HD-CVI 1080P/720P HDCVI Camera
Standard IP Support 2ch 1080P/720P/D1/CIF IP Camera
Audio
Input 1 channel, RCA
Output 1 channel, RCA
Two-way Talk Reuse audio input/output channel 1
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split 1/4/8/9
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264 / G.711
Resolution 1080P ( 1920×1080 ) / 720P ( 1280×720 ) / 960H ( 960×576 / 960×480 ) / D1 / 4CIF ( 704×576 / 704×480 ) / CIF ( 352×288 / 352×240 ) / QCIF ( 176×144 / 176×120 )
Record Rate Main Stream 1080P ( 1~12 / 15fps ) / 720P / 960H / D1 / HD1 / 2CIF / CIF ( 1~25 / 30fps )
Record Rate Extra Stream CIF / QCIF ( 1~25 / 30fps ), D1 ( 1~12 / 15fps )
Bit Rate 48 ~ 4096Kb/s
Record Mode Manual, Schedule ( Regular ( Continuous ), MD, Alarm ), Stop
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input N/A
Relay Output N/A
Playback & Backup
Sync Playback 1/4/9
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device / Network
Network
Ethernet RJ-45 port (10/100M/1000M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access 128 Users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 1 SATA port, up to 6TB
External HDD N/A
Auxiliary Interface
USB Interface 2 ports(1 Rear), USB2.0
RS232 N/A
RS485 1 port, For PTZ Control
General
Power Supply DC12V/2A
Power Consumption 10W(without HDD)
Working Environment 14 ~ 131°F / 10~90%RH / 86 ~ 106kpa
Dimensions (W x D x H) Mini 1U, 12.8" x 10" x 2.17"
Weight 3.3 lbs. (without HDD)

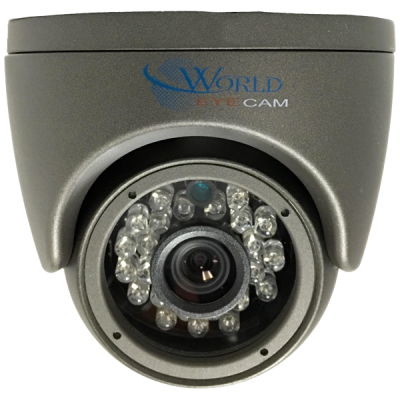

HD Camera


Product Features

  • 1/2.8" SONY 2.4MP CMOS Sensor
  • 2.4 Megapixel
  • 24 Pcs. IR 75ft
  • 3.6mm Fixed Lens
  • Weatherproof IP66 Rated
  • DC 12V 500mA
  • 0Lux



Auto Gain Control (AGC) Built-in auto gain control (AGC) circuit. The color camera can get high definition picture in low Lux condition.



Auto Electronic Shutter (AES) Built-in auto electronic shutter function. The color camera’s AES speed can reach 1/100,000s.



Gamma Characteristic Camera Gamma characteristic is 0.45.



Scanning Mode NTSC or PAL mode.



SPECIFICATIONS


Model CVI-SONY-DM24MP
Camera
Pick up Element 1/2.8" SONY 2.4MP CMOS Sensor
Effective Picture Elements 1920 X1080 (H X V)
Resolution 1080P
Minimum Illumination 0.001 Lux/F1.2
S/N Ratio More than 50dB
Synchronous System Internal, Negative sync.
IR Distance 75 Feet (with ?5X24 PCS Infrared LED)
IR Power On Photodiode AUTO Control
Video Output CVI
Functions DNR, UTC
Power/Current DC12V (+/-10%) / 500mA
Lens 3.6mm fixed zoom lens
IP Rating n/a
Dimension (mm) Φ93 x 86(H)
Weight (g) 400
Operating Temperature -10~+50° RH95% MAX
OSD MENU Yes



SPECIFICATIONS


OSD MENU
AE
BRIGHTNESS 256-1024 (512)
AE MODE NORMAL / BACK LIGHT / FRONT LIGHT
RETURN
WB
WB AUTO
WB GRAY WORLD
DAY&NIGHT
DAY&NIGHT EXTERN / INTERNAL / COLOR / MONO
VIDEO SETTING

PAL / NTSC

NR OPEN / CLOSE 2D-NR / Y-NR / C-NR
LANGUAGE ENGLISH / CHINESE
RESET LOAD DEFAULT
SAVE&EXIT



DEMO


Featured Videos

How to Guide

  •
    Demo IP Address for PC Viewing
    98.189.205.45:8080
    User Name: guest
    Password: guest
    Mobile App Login InfoMobile IP address : 98.189.205.45
    Mobile Port:
    38888
    User Name: guest
    Password: guest

iPhone, iPad and Android Apps

Mobile Phone Viewing Instructions:

Live Demo CMS Software:

Free Interactive Online Demo

Mobile App


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
