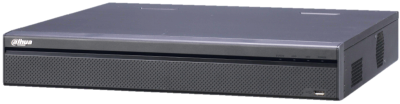

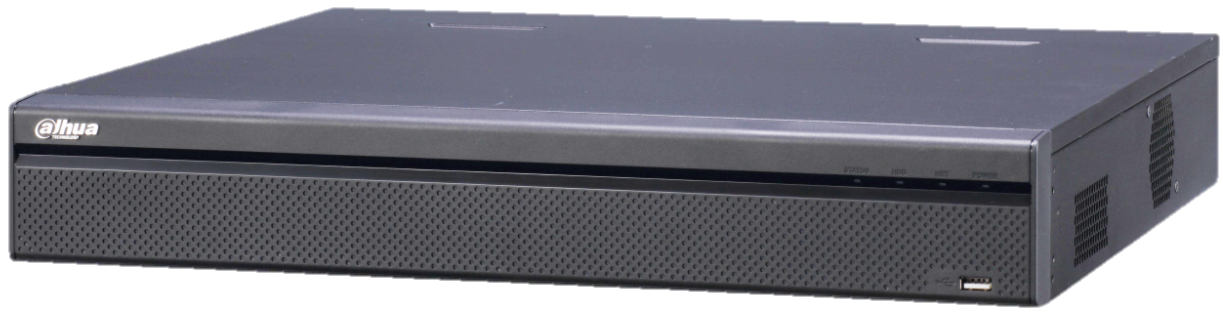

8/16/32CH 1.5U 4K H.265 Network Video Recorder


$674.00


Availability: In Stock
List Price: $1,145.00
SKU: NVR4432-16P-4K
Product #: 87166
Manufacturer:

Quantity

NVR304L-32/16P-4K

>Up to 8/16/32 channel IP camera input
>H.265/H.264/MJPEG dual codec decoding
>Max 256Mbps incoming bandwidth
>Up to 8ch@1080P(4ch@H.265+4ch@H.264) realtime live-view
>Up to 12Mp resolution live-view&playback
>2HDMI/1 VGA simultaneous video output
>8/16 channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus,   Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 4 SATA HDDs up to 24TB, 3 USB(2 USB3.0), 1 eSATA port
>Support IPC UPnP, 16PoE ports (for -16P model)
>Support P2P, QR code scan & add
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)


There have been no reviews

Mobile APPs


HOW TO ACCESS SYSTEM USING P2P VIA MOBILE APPLICATION

View your recorder and cameras on the go. The Mobile Application IDMSS (IOS) / GDMSS (Android) allows you to add IMAXPRO recorders and cameras to the mobile app using P2P.

PREREQUISITES

- Smartphone (IOS device or Android)

- IDMSS/GDMSS already downloadedin your mobile device.

- P2P must be turned on from the recorder and connected to a network with internet access.



STEP BY STEP INSTRUCTION

(VERSION 4.50.000)



1. Open iDMSS/gDMSS on the phone, and select the home icon located on the top left corner.



2. Select the "Device" button/icon on the bottom to add the recorder/camera.

3. Select the "+" sign then select "Scan" to add the device.

4. Select the Device you want to Connect (If you have a wired Camera, Please choose Wired Camera).





5. Input the device for easy identification. It's required to input the password for the added device then select the save icon located on the top right corner.



Specifications


System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video& Audio
IP Camera Input 8 channel 16 channel 32 channel
Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface 2 HDMI , 1 VGA
Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9 1/4/8/9/16 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.265/H.264/MJPEG
Resolution 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.
Record Rate 192Mbps
Bit Rate 1~ 20Mbps
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 16 channel
Relay Output 6 channel
Playback & Backup
Playback 1/4/8 1/4/8/16 1/4/8/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner/eSATA Device
Network
Ethernet 2 RJ-45 port (10/100/1000Mbps)
1 RJ-45 port (10/100/1000Mbps)(for -16P model)
PoE 16 ports (IEEE802.3at/af) (for -16P model)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 4 SATA III ports, up to 24TB
External HDD 1 eSATA port
Auxiliary Interface
USB 3 ports (2 Rear USB3.0, 1 Front USB2.0)
RS232 1 port, For PC communication& Keyboard
RS485 1 port, For PTZ control
General
Power Supply Single, AC 100~240V, 50/60 Hz
Power Consumption NVR: 17W for non-PoE model(without HDD), 26.5W for PoE model(without HDD)
PoE: Max 25.5W for single port(for -16P model) , 150W in total
Working Environment -10°C~+55°C/10%~90%RH/86~106kpa
Dimension
(W×D×H)
1.5U, 440mm×413mm×75mm
Weight 4.35KG for non-PoE model(without HDD), 4.65KG for PoE model(without HDD)
