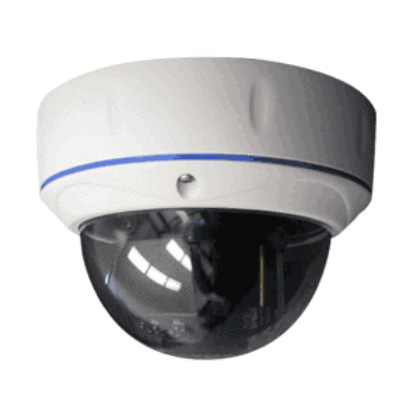

700 TVL IP66 rated High Resolution IR Night Vision Color Camera 2.8-11mm Varifocal Lens


$119.99


Availability: In Stock
List Price: $249.00
SKU: WECACD-700WDR
Product #: 86411
Manufacturer: iMaxCamPro

Remote Login Support:
Quantity

Product Features

  • Sony Color IR CCD Camera ACD-700-WDR
  • System: NTSC
  • Power: DC12V
  • 700 TVL
  • WDR
  • 65 ft. night vision
  • Indoor / Outdoor
  • 12v DC
  • 2.8- 11mm Lens

Outdoor/Indoor vandal resistance, Sony Super HAD™ Technology, 1/3" Pixelplus CMOS Sensor, Lens Type 2.8-11mm varifocal lens, , IP66 Weatherproof Rating, 65 Feet Zero Lux Illumination, UL Listed Vandal-proof, Compact Metal Housing



SPECIFICATIONS

Model WECACD-700WDR
Camera FEATURES
Sensor Type 1/3-inch Sony Super HAD2™ CCD
Effective Pixels 768 (H) x 494 (V)
Scanning System 2:1 Interlace
Horizontal Resolution Color: 580 TV Line / B&W : 600TVL
Electronic Shutter Auto, 1/50 – 1/100,000 sec
Lens 2.8-11mm DC Lens
Minimum Illumination 0 Lux (IR on)
S/N Ratio 50dB (AGC off)
Automatic Gain Contro Auto
Video Output 1.0Vp-p Composite Video, 75 Ohms
White Balance Mode ATW / AWB / AWC-Set / Manual / Indoor / Outdoor
IR LED 18 Infrared LEDs (940 nm)
IR Distance 20m Indoor, 15m Outdoor
Sync System Internal
OSD Powerful Built in OSD
D-WDR Off / Indoor / Outdoor / Sense-Up
AGC Off / Low / Middle / High
BLC Off / On
Day / Night Auto / Color / B&W
ELECTRICAL
Power Requirements Regulated 12V±1 DC
Power Consumption 200mA (IR off) 450mA (IR on)
Power Connector 2.1 x 5.5, center positive
Video Connector BNC
MECHANICAL
Lens Type Internal 2.8mm - 11mm Varifocal
ENVIRONMENTAL
Operating Temperature -4º to 122ºF (-20º to 50ºC)
Storage Temperature -4º to 131ºF (-20º to 55ºC)
Operating Humidity 90% RH Max.
PHYSICAL
Dimensions 150(H) x 70(D)mm
Weight 2.0 lb (0.9 kg) approx.
Shipping Weight 2.25 lbs (1.02 kg) approx.

Average Customer Rating:


1 Most useful customer reviews
Natosha Jacobs
Jan 13, 2016
This customer purchased the item at our site.
I needed security cameras fast for my new home because it is a big house and keeping an eye on the entire indoor and outdoor area is not possible unless I install strong cameras that can cover all the area. I searched many companies but the products did not seem to be fitting my requirements or suiting my budget. But this IR Night Vision Color Camera fell in my choice without any trouble the moment I saw it. Because of huge 52% discount I bought four for the ground floor and four for the second floor.

The night vision is so clear that we can understand everything outside in detail. Because of its high resolution performance, the intricate details are crystal clear day and night; and because it is weather proof, rain or fog dos not affect the vision. Now, I can know everything all around the outside area of my house at any moment I want to.
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
*}
