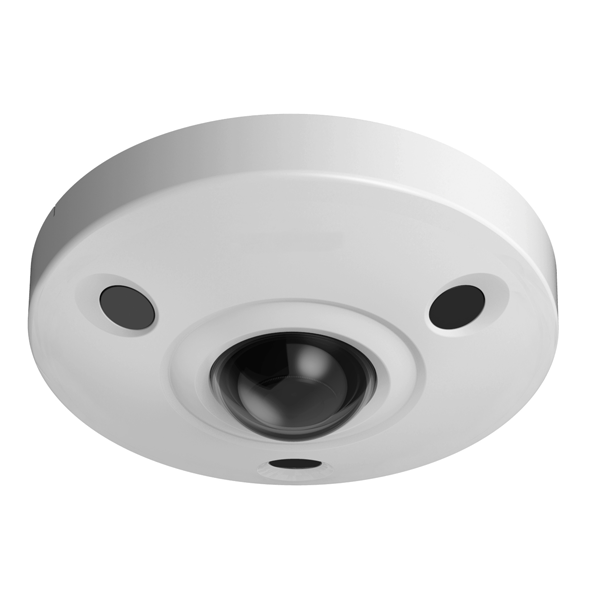

6MP Ultra HD Vandal-proof IR Network Fisheye Camera
SKU: WEC-EBW8600- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Product Features
- 1/1.8” 6Megapixel progressive scan CMOS
- H.264 & MJPEG dual-stream encoding
- Max 25/30fps@6.0M(3072x2048)
- Multiple Correct Mode:Original ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures
- DWDR, Day/Night(ICR), 3DNR,ROI, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- Max.IR LEDs Length 10m
- 1/1 Audio in/out(Built in Mic)
- Micro SD memery,IP67,IK10,PoE

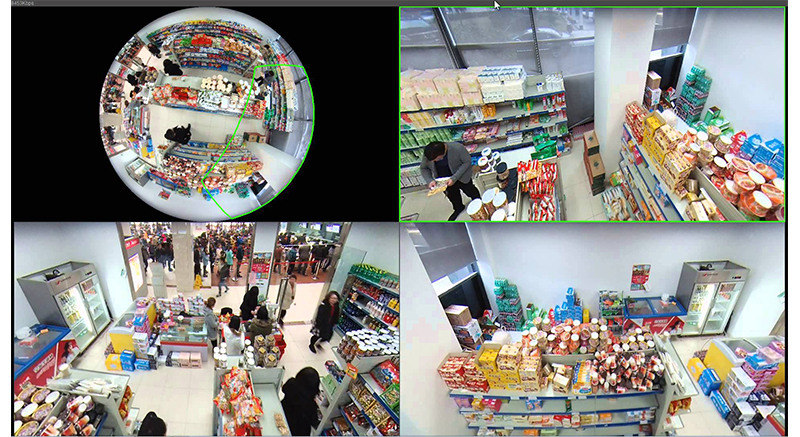

Fisheye Web Interface View
(CLICK HERE) To view full 1080P image
SPECIFICATIONS | |
Model | WEC-EBW8600 |
Image Sensor | 1/1.8” 6Megapixel progressive scan CMOS |
Effective Pixels | 3072(H)x2048(V) |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3~1/10000 |
Min. Illumination | 0.01Lux/F2.2(Color), 0Lux/F2.2(IR on) |
S/N Ratio | More than 50dB |
Video Output | N/A |
Camera Features | |
Max. IR LEDs Length | 10m |
Day/Night | Auto(ICR) / Color / B/W |
Backlight Compensation | BLC/ HLC/DWDR |
White Balance | Auto/Manual |
Gain Control | Auto/Manual |
Noise Reduction | 3D |
Privacy Masking | Up to 4 areas |
Lens | |
Focal Length | 1.55mm |
Max Aperture | F2 |
Focus Control | Manual |
Angle of View | 185°/185°/185° |
Lens Type | Manual |
Mount Type | Board-in Type |
Video | |
Compression | H.264H/MJPEG/JPEG |
Resolution | 12M (4000×3000) / 8M (2880×2880) / 6M (2880×2160) /3M (2048×1536) |
Frame Rate - Main Stream | 12M(1~15fps)/3M (1 ~ 25/30fps) |
Frame Rate - Sub Stream | D1/CIF(1 ~ 25/30fps) |
Bit Rate | 40Kbps~8192Kbps |
Correct Mode | Original ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures |
Audio | |
Compression | G.711a/G.711u/PCM |
Interface | 1/1 channel In/Out(Built in Mic) |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Wi-Fi | N/A |
Protocol | HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP |
Compatibility | ONVIF, PSIA, CGI |
Max. User Access | 20 users |
Smart Phone | iPhone, iPad, Android, Windows Phone |
Auxiliary Interface | |
Memory Slot | Micro SD |
RS485 | N/A |
Alarm | 2/1 channel In/Out |
PIR Sensor Range | N/A |
General | |
Power Supply | DC12V, PoE (802.3af) |
Power Consumption | 11W |
Working Environment | -30°C~+60°C, Less than 95%RH |
Ingress Protection | IP67 |
Vandal Resistance | IK10 |
Dimensions | Φ150mm x 50.7mm |
Weight | 0.58kg(0.86kg with packaging ) |
- ManufactureriMaxCamPro
- Camera TypePTZ
- Camera SignalIP
- Camera Resolution6 Megapixel
- KeywordsWEC-EBW8600, fisheye, 360
- DescriptionWEC-EBW8600
- Remote Login SupportNo Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
