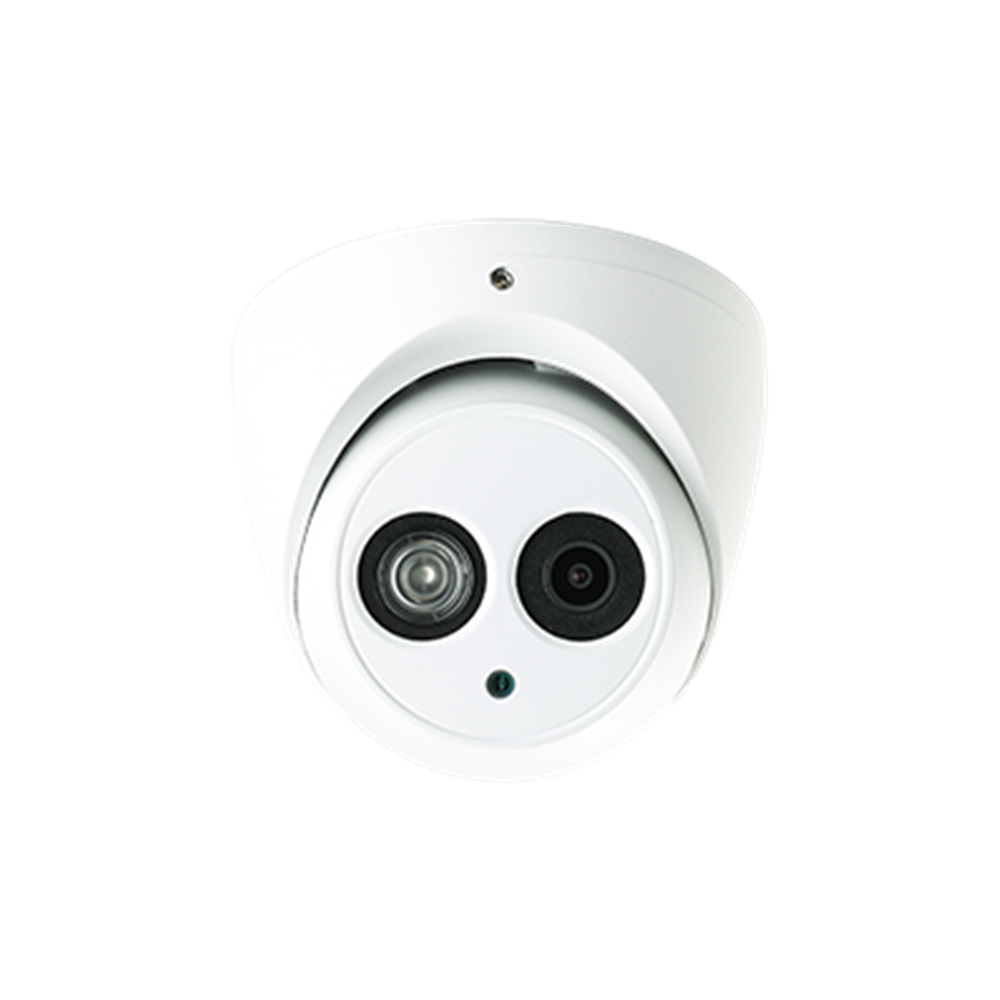

6 Megapixel Starlight IP Turret Eyeball Camera 2.8mm Fixed Lens IP67 IK10 164ft IR WDR ePoE Built-in Mic


$379.99


Availability: In Stock
Ships Same Day
List Price: $629.00
SKU: WEC-IP6MP-STRL-TDM-AUD
Product #: 99356
Manufacturer:
Camera Type: Dome
Camera Resolution: 6 Megapixel
Camera Signal: IP
Shipping Lead Time: Ships Same Day
Lens Size: 2.8mm
Optical Zoom: Fixed Lens

Remote Login Support:
Quantity

This Turret eyeball dome surveillance camera records 6mp resolution footage at 20 frames per second. It has a 2.8mm fixed lens and infrared LEDs for recording over 164 feet away in total darkness. The security camera also comes equipped with Wide Dynamic Range, a Built-in Mic and digital noise reduction. It meets IP67 & IK10 standards and can be used outdoors. Footage is recorded to an NVR and can be monitored remotely via computer or mobile device.

Features:

  • 1/2.9" 6 Megapixel Progressive Scan STARVIS Image Sensor
  • 6MP@20fps Maximum Recording Resolution
  • 2.8mm fixed lens
  • Smart Detection (Tripwire, Intrusion, Scene Change, Face Detect and Heat map)
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(SmartPSS) & iMaxCamPro
  • 2/1 Alarm in/out, 1/1 audio in/out
  • Max. IR LEDs Length 30m(98 feet)
  • Micro SD memory
  • Built-in Mic
  • IP67
  • PoE (Supports ePoE)

SPECIFICATIONS
Model WECIP6MP-STRL-TDM-AUD
Image Sensor 1/2.9" 6 Megapixel Progressive Scan STRAVIS Starlight CMOS Image Sensor
DSP STARVIS Cmos Sensor
Effective Pixels 3072 (H) x 2048 (V)
Scanning System Progressive
Electronic Shutter Speed Auto / Manual; 1/3(4) - 10,000s
Min. Illumination 0.04 Lux/F1.6 (color); 0 Lux/F1.6 (IR On)
S/N Ratio >50dB
Video Output 1 port
Camera Features
Max IR LED Distance 164 ft. / 50m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
White Balance Auto / Sunny / Night / Outdoor / Customized
Gain Control Auto / Manual
Noise Reduction 3DNR
Privacy Masking Up to 4 areas
Lens
Focal Length 2.8mm
Field of View Horizontal: 98°
Max. Aperture F1.6
Focus Control Motorized
Lens Type Fixed Lens
Mount Type Board-in Type
Video
Compression H.265+ / H.265 / H.264 / H.264H / H.264B / MJPEG
Image Resolution 6MP (3072 x 2048) / 4MP (2560 x 1440) / 3MP (2304 x 1296) / 1080p (1920 x 1080) / 1.3MP (1280 x 960) / 720p (1280 x 720) / D1 (704 x 480) / CIF (352 x 240)
Frame Rate Main Stream 6MP @ 20fps; 4MP / 3MP / 1080p / 1.3MP / 720p @ 30fps
Extra Stream D1/(1 ~ 25/30fps)
Third Stream 720p@ (1-20fps)
Bit Rate H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Corridor Mode Support
Audio
Compression G.711a/ G.711u/ AAC (Built-In Mic)
Interface 1/1 channel In/Out
Smart Detection
Smart Detection Tripwire
Intrusion
Abandoned/Missing
Scene Change
Audio Detect
Face Detect
Network
Network Interface RJ-45 (100/1000M)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF Profile S, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Local Storage Micro SD Max 128GB
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption < 6W (with IR on,)
Working Environment -40°F ~ +140°F (-40°C ~ +60°C), < 95%RH
Protection Rating IP67
Vandal Resistance N/A
Dimensions 4.17" x 4.17" x 3.69" (106mm × 106mm× 93.7mm)
Weight 1.04 lbs

There have been no reviews

Mobile APPs


HOW TO ACCESS SYSTEM USING P2P VIA MOBILE APPLICATION

View your recorder and cameras on the go. The Mobile Application IDMSS (IOS) / GDMSS (Android) allows you to add IMAXPRO recorders and cameras to the mobile app using P2P.

PREREQUISITES

- Smartphone (IOS device or Android)

- IDMSS/GDMSS already downloadedin your mobile device.

- P2P must be turned on from the recorder and connected to a network with internet access.



STEP BY STEP INSTRUCTION

(VERSION 4.50.000)



1. Open iDMSS/gDMSS on the phone, and select the home icon located on the top left corner.



2. Select the "Device" button/icon on the bottom to add the recorder/camera.

3. Select the "+" sign then select "Scan" to add the device.

4. Select the Device you want to Connect (If you have a wired Camera, Please choose Wired Camera).





5. Input the device for easy identification. It's required to input the password for the added device then select the save icon located on the top right corner.
