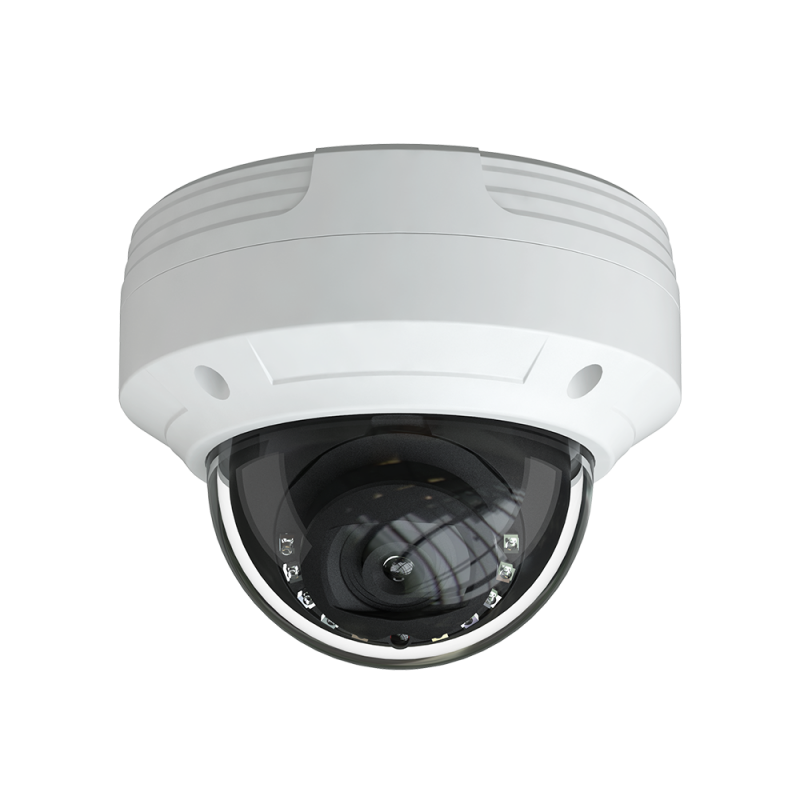

5MP H.265 HD IP Small Vandal Fixed Lens Camera


$174.00


Availability: In Stock
List Price: $348.00
SKU: WEC-5VP5030-2.8
Product #: 102763
Manufacturer:

Quantity

Automatic Face Recognition and Actions:

Face Recognition is based on deep learning algorithms. It automatically captures faces in real time, compares or adds faces to a pre-defined list, and then takes appropriate action such as generating an alert once the captured face matches a pre-defined face list in the database

Features

  • H.265 Compression
  • 1/2.5" 5MP HD CMOS Sensor
  • Effective Pixels: 2592 x 1944
  • 2.8mm Fixed Lens
  • 5MP@30fps
  • 24 IR
  • Color : 0.05 Lux @ F1.2,AGC ON, B / W : 0.01 Lux @ F1.2
  • WDR
  • BNC Output for Analog Tester
  • Weatherproof
  • 12V DC / PoE
  • IP66 & IK10
More Information
Image Sensor 1/2.5" CMOS
Image Size 2592 x 1944
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Minimum Illumination

Color: 0.05 lux @F1.2, AGC ON;
B/W: 0 lux with IR

IR On/Off Control 24 IR
Focal Length 2.8mm Fixed Lens
Angle of View N/A
Angle Adjustment N/A
IR Distance 66ft (20m)
Wide Dynamic Range 120dB
S/N Ratio N/A
Video Compression H.265 MP; H.264 BP / MP / HP; MJPEG
Video Resolution 5MP (2592x1944), 4MP (2560x1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, CIF, 480x240
Video Frame Rate 5MP (1~30fps) / 4MP (1~30fps) / 3MP (1~30fps) / 1920x1080 (1~30fps) / 720P (1~30fps) / D1 (1~30fps) / 480x240 (1~30fps) / CIF (1~30fps)
Video Bitrate 64Kbps ~ 10Mbps
Day / Night ICR
Video Encode VBR / CBR
BLC Mode N/A
HLC N/A
White Balance N/A
ROI Each ROI to be configured separately
Gain Control N/A
Digital Noise Reduction 2D / 3D DNR
Defog N/A
Quality Five levels under VBR; Freely adjustable under CBR
Audio Compression G711A / U
Audio In 1CH
Audio Out No
IPC Alarm Motion alarm
Alarm In No
Alarm Out No
Ethernet RJ45 × 1, 10M / 100M self-adaption
Network Protocol TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Storage Network remote storage
Storage Card No
Web Viewer IE browsing
Network Max. Users Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Mobile iPhone, Android
IVS Object removal detection, line crossing detection and intrusion detection, etc.
Video Output CVBS video output (BNC x 1)
RS485 No
Power Supply DC 12V / PoE
Power Consumption < 2W (< 3.5W When IR On)
Operating Temperature -20°C ~ 50°C (-4℉ ~ 122℉), 10 % ~ 90 % humidity
Ingress Protection IP66
Dimensions 4.6" x 3.6" (Φ116 × 91mm)
Weight 1.3Lbs (593g)
*}
