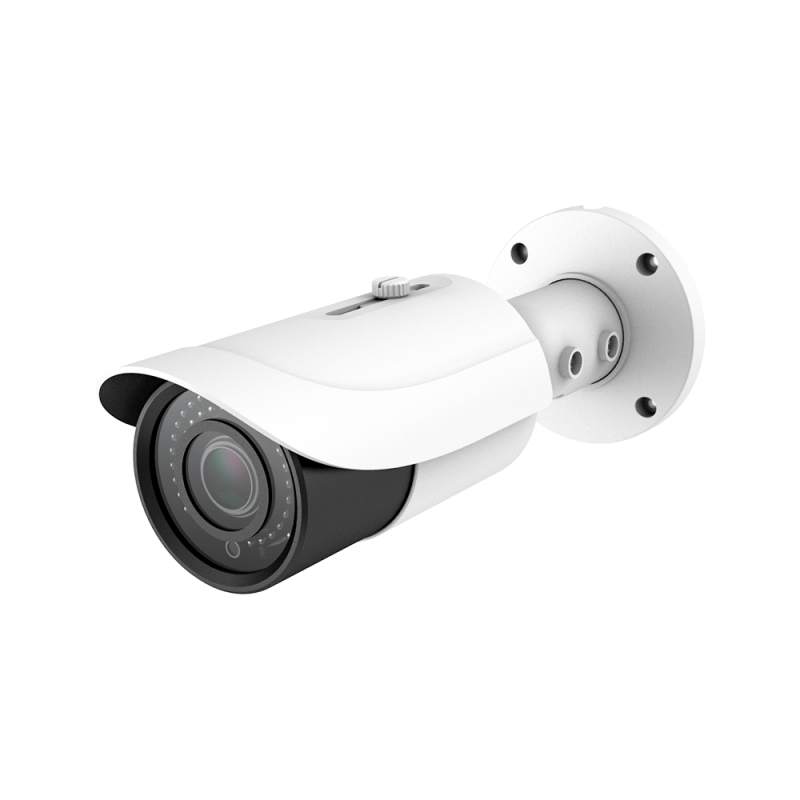

5MP H.265 HD IP IR Bullet Motorized Camera

Worldeyecam
SKU: WEC-5IR5048MZ

Features

  • 1/2.5" 5MP Aptina CMOS Sensor
  • H.265 Compression
  • Effective Pixels: 2592 x 1944
  • 5 Mega Pixels Image Resolution
  • 2.8 ~ 12mm Motorized Lens, 5MP@30fps
  • 0.03 lux @F1.4, AGC ON; 0 lux with IR
  • 48 IR; WDR
  • BNC Output for Analog Tester
  • MicroSD, Audio In/Out, Alarm
  • Weatherproof
  • 12V DC / PoE
  • IP66
    • 50% less
    Market price:$540.00 save $270.00
  • $270.00
Qty:
OR

Automatic Face Recognition and Actions:

Face Recognition is based on deep learning algorithms. It automatically captures faces in real time, compares or adds faces to a pre-defined list, and then takes appropriate action such as generating an alert once the captured face matches a pre-defined face list in the database

Features

  • 1/2.5" 5MP Aptina CMOS Sensor
  • H.265 Compression
  • Effective Pixels: 2592 x 1944
  • 5 Mega Pixels Image Resolution
  • 2.8 ~ 12mm Motorized Lens, 5MP@30fps
  • 0.03 lux @F1.4, AGC ON; 0 lux with IR
  • 48 IR; WDR
  • BNC Output for Analog Tester
  • MicroSD, Audio In/Out, Alarm
  • Weatherproof
  • 12V DC / PoE
  • IP66
More Information
Image Sensor1 / 2.5" Aptina CMOS Sensor
Image Size2592 x 1944
Electronic Shutter1 / 25 s ~ 1 / 100000 s
Minimum Illumination

Color: 0.03 lux@F1.2, AGC ON;
B/W: 0 lux with IR

IR On/Off Control48IR
Focal Length2.8 ~ 12mm Motorized Lens
Angle of ViewN/A
Angle AdjustmentAny angle
IR Distance164ft (50m)
Wide Dynamic Range120dB
S/N RatioN/A
Video CompressionH.265 MP, H.264 BL/MP/HP, MJPEG
Video Resolution5MP (2592×1944) , 2K (2560×1440) , 1080P (1920×1080) , 720P (1280×720) , D1, CIF, 480x240
Video Frame Rate

60Hz : 5MP( 1 ~ 30fps ) / 4MP( 1 ~ 30fps ) / 1080P( 1 ~ 60fps ) / 720P( 1 ~ 30fps )
50Hz : 5MP( 1 ~ 25fps ) / 4MP( 1 ~ 25ps ) /1080P( 1 ~ 50fps ) / 720P( 1 ~ 25fps )

Video Bitrate128 Kbps ~ 10 Mbps
Day / NightICR
Video EncodeVBR / CBR
BLC ModeYes
HLCYes
White BalanceN/A
ROIEach ROI to be configured separately
Gain ControlN/A
Digital Noise Reduction2D / 3D DNR
DefogN/A
QualityFive Levels under VBR;Freely adjustable under CBR
Audio CompressionG711A / U
Audio In1CH
Audio Out1CH
IPC AlarmMotion alarm, sensor alarm
Alarm In1CH
Alarm Out1CH
EthernetRJ45 × 1, 10M / 100M self-adaption
Network ProtocolTCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
StorageTF card local storage, network remote storage
Storage CardmicroSD (up to 128GB)
Web ViewerIE browsing
Network Max. UsersSupport simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
MobileiPhone, Android
IVSObject removal, abnormal video signal detection, line crossing detection and intrusion detection, etc.
Video OutputCVBS video output ( BNC x 1)
RS485RS485 x 1
Power SupplyDC 12V / PoE
Power Consumption< 9W
Operating Temperature-20°C ~ 50°C (-4℉ ~ 122℉), 10 % ~ 90 % humidity
Ingress ProtectionIP66
Dimensions4.3" x 11.2" (Φ109 × 284mm)
Weight2.44Lbs (1110g)



WEC-5IR5048MZ-2812 User Manual



WEC-5IR5048MZ-2812 Mobile Manual



    • SKU
      WEC-5IR5048MZ
    • Weight
      2.4 lbs
  • Manufacturer
    Worldeyecam
