        5MP Mini Fixed Bullet Network Camera

        SKU: IPC2125LR3-PF40(60)M-D
        UNV
        SKU: IPC2125LR3-PF40(60)M-D
          • 20% less
          Market price:$223.75 save $44.75
        • $179.00

        OR

        Optics

        Day/night functionality

        Smart IR , up to 30 m (98 ft) IR distance

        Optical glass window with higher light transmittance

        IR anti-reflection window to increase the infrared transmittance

        2D/3D DNR (Digital Noise Reduction)

        Compression

        Ultra 265,H.265, H.264, MJPEG

        ROI (Region of Interest)

        Network

        ONVIF Conformance

        Structure

        Wide temperature range: -30°C to 60°C (-22°F to 140°F)

        Wide voltage range of ±25%

        IP67

        3-Axis

         IPC2125LR3-PF40M-DIPC2125LR3-PF60M-D
        Camera
        Sensor1/2.7", 5.0 megapixel, progressive scan, CMOS
        Lens4.0mm@F2.06.0mm@F2.0
        DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
        4.06024126
        6.09036189
        Angle of View (H)79.7°50.5°
        Angle of View (V)51.8°35.9°
        Angle of View (O)98.0°62.1°
        Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°
        ShutterAuto/Manual, 1 ~ 1/100000s
        Minimum IlluminationColour: 0.01Lux (F2.0, AGC ON)
        0Lux with IR on
        Digital noise reduction2D/3D DNR
        Day/NightIR-cut filter with auto switch (ICR)
        S/N>52dB
        IR RangeUp to 30m (98ft) IR range
        Wavelength850nm
        IR On/Off ControlAuto/Manual
        DefogDigital Defog
        WDRDWDR
        Video
        Video CompressionUltra 265, H.265, H.264, MJPEG
        H.264 code profileBaseline profile, Main Profile
        Frame RateMain Stream: 5MP (2592*1944), Max 20fps;
        Sub Stream: 720P (1280×720), Max 20fps
        Video Bit Rate128 Kbps~16 Mbps
        OSDUp to 4 OSDs
        Privacy MaskUp to 4 areas
        ROIUp to 2 areas
        Motion DetectionUp to 4 areas
        White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
        Digital noise reduction2D/3D DNR
        Smart IRSupport
        FlipNormal/Vertical/Horizontal/180°
        DewarpingNA
        HLCSupported
        BLCSupported
        Network
        ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
        Compatible IntegrationONVIF (Profile S, Profile T), API
        ClientEZStation
        EZView
        EZLive
        Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
        Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
        Interface
        Network10/100M Base-TX Ethernet
        Certifications
        CertificationsCE: EN 60950-1
        UL: UL60950-1
        FCC: FCC Part 15
        General
        PowerDC 12V±25%, PoE (IEEE 802.3af)
        Power consumption: Max 4W

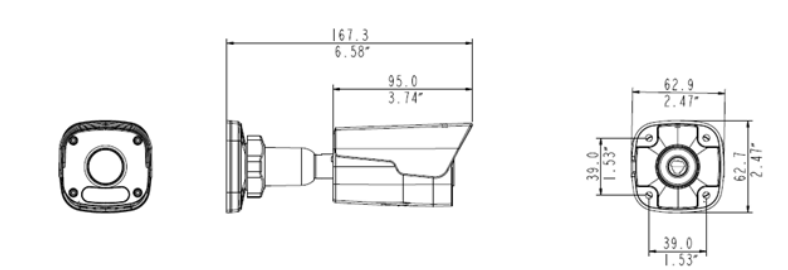

        Dimensions (L × W × H)167.3 × 62.9 × 62.7mm (6.6” × 2.5” × 2.5”)
        Net Weight0.45kg (0.99lb)
        MaterialMetal
        Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
        Strorage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
        Surge Protection2KV
        Ingress ProtectionIP67
        Reset ButtonSupported

        Datasheet of IPC2125LR3-PF40(60)M-D

        IPC2100 Series-Network Bullet Cameras Quick Guide-V1.01

        Camera Installation Guide-V1.00

        Network Cameras User Manual-V3.00
