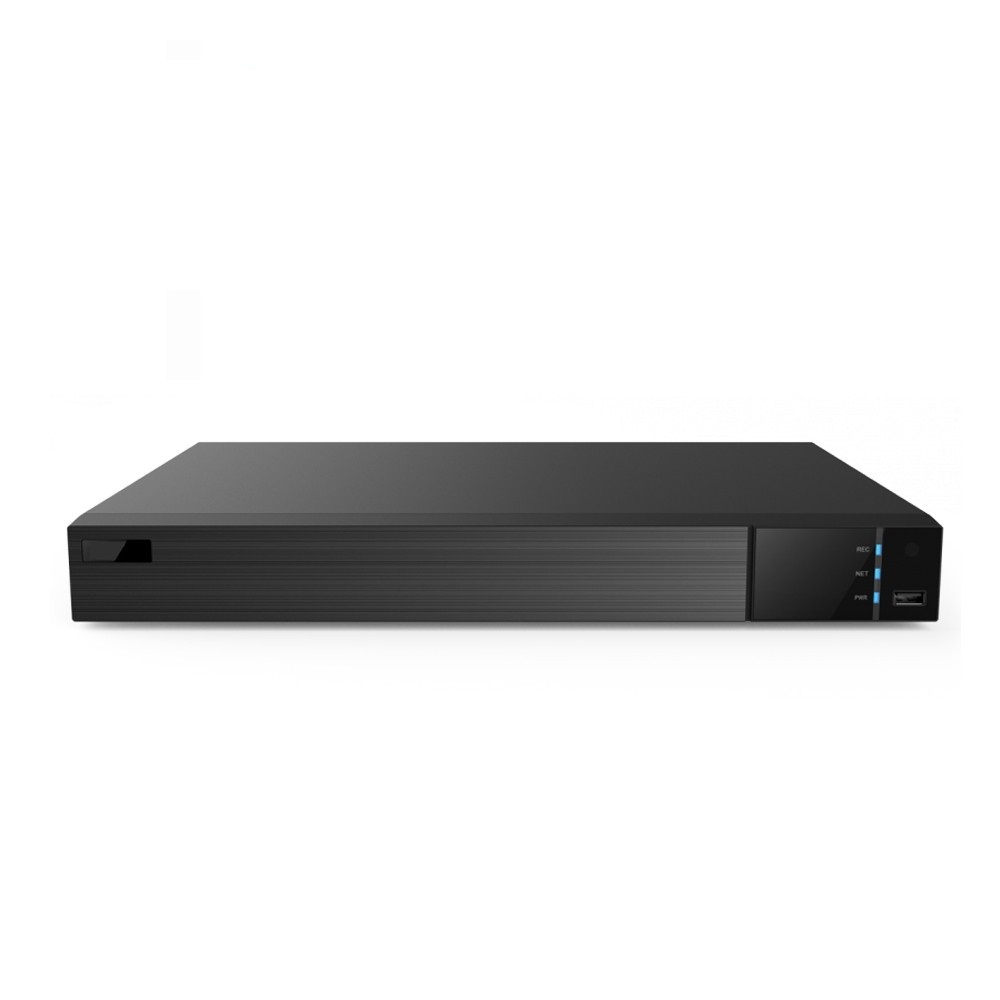

5MP 8CH HD ALL-IN-ONE HD-TVI, CVI, AHD, 960H, +IP, 2xHDD

SCANSYS
SKU: WECVTD-5208



8 / 16 CH TVI / CVI / AHD video input
8 / 16 CH 5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1 recording
4 / 4 CH IPC 4MP / 3MP / 1080P / 960P / 720P recording
Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timer / motion / sensor
Playback : 8 / 16 CH simultaneously playback
Search: time slice, time, event ( manual, sensor, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log review and device status review
HDMI 4K output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smart phone & Pad surveillance with iOS and Andriod OS

    • 50% less
    Market price:$756.00 save $378.00
  • $378.00
Qty:
OR



8 / 16 CH TVI / CVI / AHD video input
8 / 16 CH 5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1 recording
4 / 4 CH IPC 4MP / 3MP / 1080P / 960P / 720P recording
Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timer / motion / sensor
Playback : 8 / 16 CH simultaneously playback
Search: time slice, time, event ( manual, sensor, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log review and device status review
HDMI 4K output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smart phone & Pad surveillance with iOS and Andriod OS





Model

VTD-5208

VTD-5216



System

Compression

Standard H.264 High Profile

CPU

Cortex A9

OS

Embedded Linux

video

Input

BNC × 8

BNC × 16

Resolution

TVI / AHD : 5MP@20fps; 4MP, 3MP, 1080P ,  720P ,    WD1 real time

CVI  :   1080P,720P real time

IP   Input /

Access   Bandwidth

IPC×4/ 24Mbps

IPC×4/ 24Mbps

Output

HDMI × 1 : 3840x2160, 1920 × 1080, 1280 × 1024

VGA × 1 : 1920 × 1080, 1280 × 1024

BNC × 1 : CVBS ( used as spot output )

Audio

Input

RCA × 4

Output

RCA × 1

Two-way audio

Take up channel one audio input

Record

Resolution

5MP, 4MP, 4MP lite, 3MP,1080P, 720P, WD1

Frame Rate

5MP : 10fps (PAL / NTSC)

4MP / 3MP : 12 fps (PAL) / 15 fps (NTSC)

4MP lite/1080P/720P/WD1: 25 fps (PAL) / 30 fps   (NTSC)

Bit Rate

768Kbps ~ 8Mbps

Mode

Manual, timer, motion, sensor

IP Input

Resolution

4MP / 3MP / 1080P / 960P / 720P

Frame   Rate

25fps (PAL) / 30fps ( NTSC )

Play

back

Playback

8 CH

16 CH

Search

Time slice / time / event / tag search

Smart   Search

Highlighted color to display the camera record in   a certain period of time, different colors refers to different record events

Function

Play, pause, FF, FB, digital zoom, etc.

Alarm

Mode

Manual,   sensor, motion, exception

Input

4

Output

1

Triggering

Record,   snap, preset, e-mail, etc.

Network

Interface

RJ45 10 / 100Mbps × 1

Protocol

TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP

Web   Client

Multiple users online

Mobile

Device

OS

iOS, Andriod

Storage

HDD

SATA × 2, max 8T per HDD

Backup

Local   Backup

U disk, USB mobile HDD

Network   Backup

Yes

Port

RS485

RS485 × 1, connect to PTZ or keyboard

USB

USB 2.0 × 1 ( front panel ), USB 3.0 × 1 ( rear   panel )

Remote

Controller

Yes

Others

Power Supply

DC12V

Consumption

≤ 10W ( without HDD )

≤ 15W ( without HDD )

Dimensions( mm )

380 × 268 × 52 ( W × D × H )

Work

Environment

-10 ~ 50 ℃,10% ~ 90% humidity

VTD-5208
