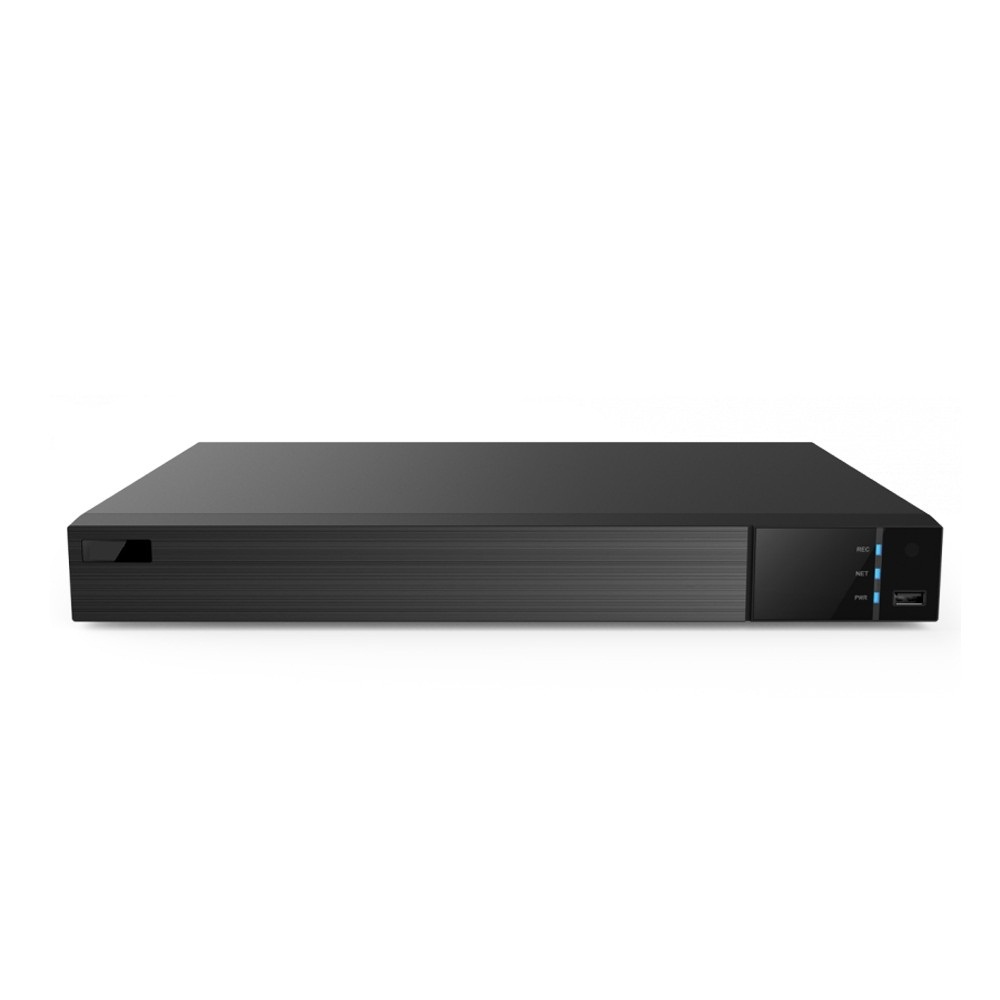

5MP 4CH HD ALL-IN-ONE HD-TVI, CVI, AHD, 960H, +IP, 1xHDD

SCANSYS
SKU: WECVTD-5104



4 CH TVI / CVI / AHD video input
4 CH 5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1 recording
Support 1CH IPC 3MP / 1080P / 960P / 720P recording
Support 4 CH IPC 4MP / 3MP / 1080P / 960P / 720P recording
Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timer / motion / sensor
Playback : 4/8 CH simultaneously playback
Search: time slice, time, event ( manual, sensor, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote
network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log review and device status review
Support HDMI 2K output, TD-2708TS-PR support HDMI 4K outpu true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smart phone & Pad surveillance with iOS and Andriod OS

    • 50% less
    Market price:$396.00 save $198.00
  • $198.00
Qty:
OR



4 CH TVI / CVI / AHD video input
4 CH 5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1 recording
Support 1CH IPC 3MP / 1080P / 960P / 720P recording
Support 4 CH IPC 4MP / 3MP / 1080P / 960P / 720P recording
Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timer / motion / sensor
Playback : 4/8 CH simultaneously playback
Search: time slice, time, event ( manual, sensor, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote
network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log review and device status review
Support HDMI 2K output, TD-2708TS-PR support HDMI 4K outpu true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smart phone & Pad surveillance with iOS and Andriod OS

ModelVTD-5104
 CompressionStandard H.264 High Profile
 CPUCortex A7
SystemOSEmbedded Linux
videoInputBNC × 4
ResolutionTVI / AHD : 5MP@20fps; 4MP, 3MP, 1080P ,  720P ,    WD1 real time
CVI  :   1080P,720P real time
IP   Input /
Access   Bandwidth
IPC×1 / 6Mbps
OutputHDMI × 1 : 2560 × 1440, 1920 × 1080, 1280 × 1024

VGA × 1 : 1920 × 1080, 1280 × 1024

BNC × 1 : CVBS ( used as the main or spot output   )
AudioInputRCA × 4
OutputRCA × 1
Two-way audioTake up channel one audio input
RecordResolution5MP, 4MP, 4MP lite, 3MP,1080P, 720P, WD1
Frame Rate5MP : 10fps (PAL / NTSC)

4MP / 3MP : 12 fps (PAL) / 15 fps (NTSC)

4MP lite/1080P/720P/WD1: 25 fps (PAL) / 30 fps   (NTSC)
Bit Rate768Kbps ~ 8Mbps
ModeManual, timer, motion, sensor
IP InputResolution3MP / 1080P / 960P / 720P
Frame   Rate25fps (PAL) / 30fps ( NTSC )
PlayPlayback  4 CH
 SearchTime slice / time / event / tag search
backSmart   SearchHighlighted color to display the camera record in   a certain period of time, different colors refers to different record events
 FunctionPlay, pause, FF, FB, digital zoom, etc.
AlarmModeManual,   sensor, motion, exception
Input  4
Output1
TriggeringRecord,   snap, preset, e-mail, etc.
NetworkInterfaceRJ45 10 / 100Mbps × 1
ProtocolTCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Web   ClientMultiple users online
MobileOSiOS, Andriod

Device
StorageHDDSATA × 1, max 8T
BackupLocal   BackupU disk, USB mobile HDD
Network   BackupYes
PortRS485RS485 × 1, connect to PTZ or keyboard
USBUSB 2.0 × 2 ( one in the front panel and the   other in the rear panel)
RemoteYes

Controller
OthersPower SupplyDC12V
Consumption≤ 5W ( without HDD )
Dimensions( mm )300 × 248 × 52 ( W × D × H )
Work-10 ~ 50 ℃,10% ~ 90% humidity

Environment
    • SKU
      WECVTD-5104
  • Manufacturer
    SCANSYS
