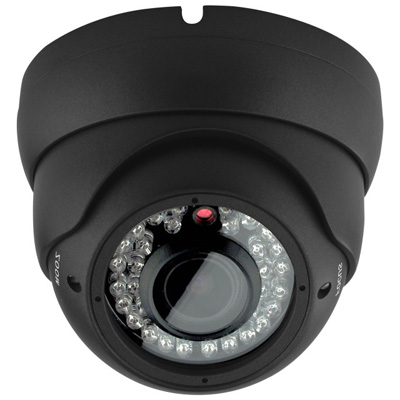

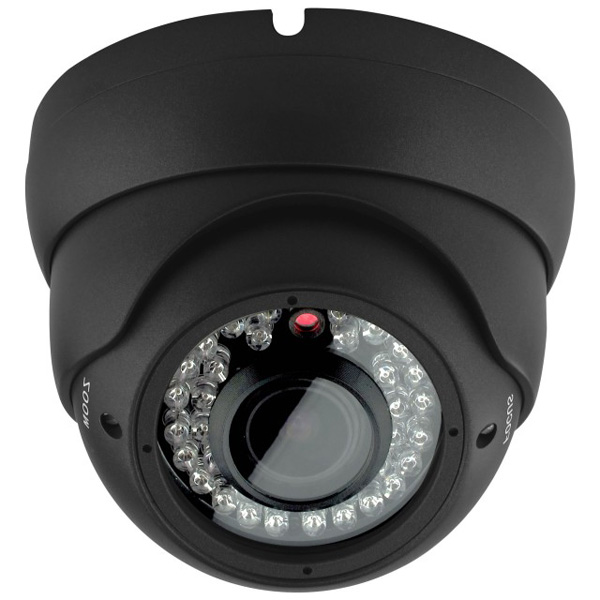

540 TVL High Resolution IR Night Vision Color Camera 2.8-10mm Varifocal Lens


Availability: In Stock
List Price: $179.00
SKU: WECD1708-5
Product #: 86409

Remote Login Support:

Product Features

  • 1/3" Sony Super Had CCD
  • 540 TVL
  • 0 Lux (with IR leds ON)
  • 12v DC
  • 2.8-10MM Manual Verifocal Lens
  • Plastic trumpet Shell Camera

Outdoor/Indoor vandal resistance, Sony Super HAD™ Technology, 1/3" Pixelplus CMOS Sensor, Lens Type 2.8-10mm varifocal lens, , IP66 Weatherproof Rating, 98 Feet Zero Lux Illumination, UL Listed Vandal-proof, Compact Housing



Model WECD1708-5
Signal System NTSC
Image Sensor 1/3" Sony Super HAD CCD
Picture Element (NTSC) 811 X 508 PAL 795X596
Horizontal Resolution 540 TVL
Lens 2.8-10mm Manuel Varifocal lens
Minimun Lux 0 with (IR) on
S/N Ratio More than 48dB
Vertical Frequency NTSC 59.94 Hz
Scanning System 2:1 Interlace
Synchronization Internal
IR distance 98 ft.
Video Out put Analog
Operation temp -10 / +45 C

Average Customer Rating:

1 Most useful customer reviews
Claire Divas
Jan 10, 2016
This customer purchased the item at our site.
The first thing that startled me about this camera was its surprisingly low price when I checked the specifications. It performs amazingly best. The image is crystal clear and in the hottest of weather here in Texas, its performance did not change a bit. And sure low temperature of winter is also not going to affect he performance. My previous camera could not trace the images of moving objects outside during hot dusty afternoons. But with this camera I cankeep an eye on all the area even when it is night.

Now, I can prepare for my outdoor activities by having the full footage of the area. Once I saw a coyote quite close to my office and next time it was a wild hog that was running by the main gate of my office. Anyone having business whether small or big must have this security camera fixed at his place to be at peace from any evil activity of humans or animals.
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs

QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.

Easy remote Viewing
P2P/QR Code Easy Setup

To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.

You must check the box to enable P2P function and then click Apply to save at bottom of screen.


Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.


Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.



How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
