540 TVL, 24 pcs IR LED, 3.6 fixed lens, Indoor & Outdoor application, aluminum housing, DC 12V input, Vandal proof


$45.90


Availability: In Stock
Ships Same Day
List Price: $129.89
SKU: CAMJID948/3.6
Product #: 39111
Manufacturer:
Camera Resolution: 540-550 TV Lines

Video and Power Cables:
Power Supply:
Remote Login Support:
Quantity

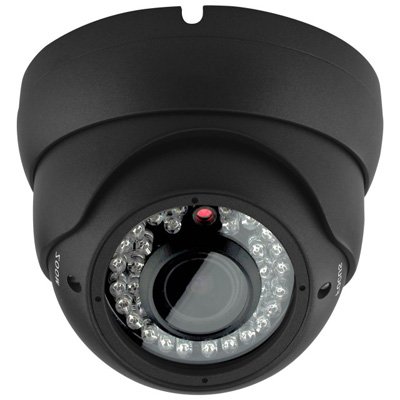

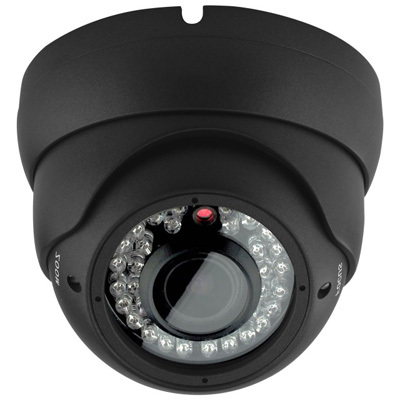

The CAMJID948/3.6 security camera is a high resolution, infrared, fixed color dome camera, providing a tamper resistant outdoor housing for any indoor/outdoor application.

Product Features:

  • Sony Super HAD Technology
  • 1/3 Inch Format CCD Sensor
  • Digital Signal Processing
  • 540 Max TV Lines Resolution
  • 3.6mm fixed Lens
  • IP55 Weatherproof Rating
  • UL Listed Vandal-proof
  • 50 Feet Zero Lux Illumination

is an entry level, high resolution, infrared, varifocal color dome camera, providing a tamper resistant outdoor housing for any indoor/outdoor application.

features a Sony Super HAD™ 540 line, CCD sensor providing excellent color reproduction and remarkable sensitivity in zero lux environments. The camera’s 24-LED array of infrared illuminators can easily distinguish objects at a distance of 50 feet and beyond.

The camera includes a 3.6mm fixed lens. The aluminum cast structure and IP 55 weatherproof rated housing protects the camera during rain, sleet, and snow, while the armor design and crush resistant glass coating deters vandalism and ensures effective surveillance.

The non-intrusive, discreet housing is ideal for retail or public installs. Compact and simple design allows for a quick installation.

n.




Technical Specifications

Camera
Sensor Type 1/3-inch Sony Super HAD CCD
Scanning System 2:1 Interface
Horizontal Resolution 540 TV Line
Iris Control Auto
Focus Control n/a
Auto Iris A.E.S.
Minimum Illumination 0 lux (IR On) 36 LEDs
IR Range 25M 45º
Automatic Gain Control Yes
Automatic Yes
Electronic Shutter Speed 1/60 - 1/100,000 second
Gamma Correction 0.45
Signal Processing Digital Signal Processing (DSP)
Video Output 1.0Vp-p(Sync, Negative), 75 ohms

Electrical
Power Requirements Regulated 12V DC
Power Consumption 450mA
Power Connector 2.1x5.5, center positive
Video Connector BNC

Mechanical
Lens Type fixed 3.6mm

Environmental
Operating Temperature -4 - 122 degrees F (-10 to 50C)
Storage Temperature -4 to 140 degrees F (-20 to 60C)
Operating Humidity 90% RH Max.

Physical
Dimensions 80(H) x 120(D)mm
Weight 2.0 lb (0.9 kg) approx.
Shipping Weight 2.25 lbs (1.02 kg) approx.




Average Customer Rating:


2 Most useful customer reviews
Tom Latham
May 3, 2016
This customer purchased the item at our site.
My little restaurant at the end of town buzzes with life at night till late hours and I needed a strong high resolution security camera for all the good reasons. I asked friends to recommend and I checked online, too. My friend asked me to buy this vandal proof camera as it has aluminum housing and is very effective in making clear footage day and night.

I did not get one but got three for all the strategically important locations indoor and outdoor especially because there was an offer of 65% discount. Its 540 TVL is the right spec I need for my restaurant. Even in little lightit makes perfect footage of area up to 50 feet. It is weather proof that in humid days or freezing cold nights, it still works perfect and allows me to monitor all the area in and out to my full satisfaction. The best about is that it can be installed discretely which helps me monitor the real action of people!
Loading...Was the above review useful to you? Yes (0) / No (0)
Harry Daut
Apr 17, 2014
This customer purchased the item at our site.

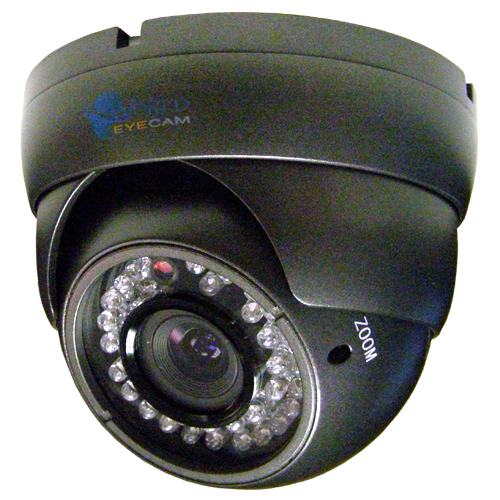

Very easy to install for both outdoor and indoor applications. I have installed IMAX-A2000VIR camera in my store and it ensures effective surveillance. It delivers very clear images!
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
*}
