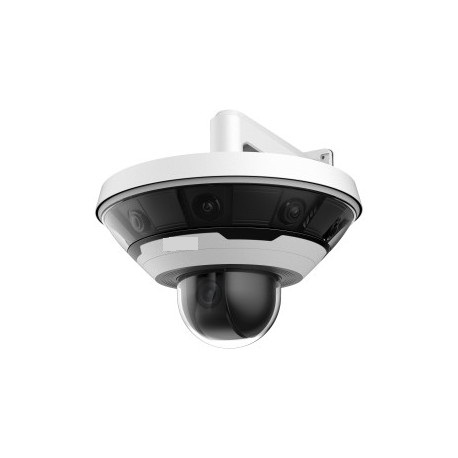

4x2MP Multi-Sensor Panoramic Network Camera+PTZ Camera

iMaxCamPro
SKU: WECIPSD8802N-A180

· Panoramic: Four 1/1.9” 2Megapixel progressive scan CMOS · PTZ: One 1/1.9” 2Megapixel progressive scan CMOS · H.265/H.264 triple-stream encoding · 25fps@4096x1800+50/60fps@1080P · Support 180-degree panoramic view · Day/Night(ICR), 3DNR, AWB, AGC, BLC · Smart tracking · Intelligent Function . Micro SD memory, IP67, IK10

    • 50% less
    Market price:$14997.00 save $7498.50
  • $7498.50
Qty:
OR

· Panoramic: Four 1/1.9” 2Megapixel progressive scan CMOS · PTZ: One 1/1.9” 2Megapixel progressive scan CMOS · H.265/H.264 triple-stream encoding · 25fps@4096x1800+50/60fps@1080P · Support 180-degree panoramic view · Day/Night(ICR), 3DNR, AWB, AGC, BLC · Smart tracking · Intelligent Function . Micro SD memory, IP67, IK10

System Overview

The Imaxcampro PSD8802-A180 Panoramic Multi-Sensor plus PTZ camera combines four (4) 2MP sensors working in tandem and a high-speed PTZ camera to create a comprehensive 180° view. With its all-in-one design, the camera provides a 180° panorama and provides region of interest details at the same time. In addition, the PSD8802-A180 offers the Intelligent Video System (IVS), a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection and smart tracking. A camera with IVS quickly and accurately responds to monitoring events in a specific area. The PSD8802-A180 camera can replace multiple single-sensor cameras providing a higher return on investment.

Functions

Panoramic

Panoramic cameras provide 180 °, 360 ° full range of video scene, bringing people a new sense of real live and interactive experience. Imaxcampro provides two kinds of panoramic camera, single sensor fisheye camera and multi-sensor camera, both of them can offer 180-degree & 360-degree panoramic image. Through working together with PTZ camera which offer whole scene and region details at same time. It provided new surveillance experience to end user and improved the surveillance quality.

True Day/Night

A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens.

Starlight Technology

Featured with Imaxcampro Starlight Technology, the camera is ideal for applications with challenging light conditions. Its low light performance delivers usable video with minimal ambient light. Even in extreme low light conditions, Starlight Technology is capable of delivering color images in nearly complete darkness.

HEVC (H.265)

H.265 ITU-T VCEG is a new video coding standard. H.265 Following standard developed around the existing video coding standard H.264 , some retain the original technology , while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream , encoding quality , and the delay between algorithm complexity , optimize settings specific contents include : Improve compression efficiency , improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay , reduce complexity , etc

Smart H.265+

Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of bandwidth and storage when compared with standard H.265.

Protection (IP67, IK10, wide voltage)

Supporting ±25% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning.IP67 is supported by the camera, which makes it suitable for both indoor and outdoor environments. IK10 compliance enables the camera to sustain the equivalent of 55 kg (120lbs) force.

Environmental

Standard Imaxcampro camera can function from -30°C to +60°C(-22 °F to +140 °F) with 95% humility, meanwhile some models support heater module optional which allows the camera to function from -40°Cto +60°C (-40 °F to +140 °F).With a temperature range of -40 °C to +60 °C, the camera is designed for extreme temperature environments.

Appareil-photo panoramique

Capteur d’image

Quatre 2Megapixel CMOS de 1/1.9"

Nombre de Pixels effectifs

4096(H)x1800(V)

Système de balayage

Progressive

Vitesse d’obturation électronique

Auto/manuel, 1/3 ~ 1/100000s

Éclairement minimum

0.005Lux/F2.2 (couleur, 1/3 s, 30 IRE)

0.03Lux/F2.2 (couleur, 1/30 s, 30 IRE)

0.003Lux/F2.2 (B/W, 1/3 s, 30 IRE)

0.02Lux/F2.2 (B/W, 1/30 s, 30 IRE)

Rapport signal/bruit

Plus de 50 dB

Panoramic Lens

Type d’objectif

Fixe

Type de montage

Conseil-en

Longueur focale

5mm

Max. Ouverture

F2.2

Angle de vue

H: 180 °, V:80˚

Distance DORI

Détecter les

Observer

Reconnaître

Identifier

53m(178ft)

21M(69ft)

10m(33ft)

5m(17ft)

Caméra PTZ

Capteur d’image

2Megapixel CMOS 1/1.9"

Nombre de Pixels effectifs

1920(H)x1080(V)

RAM/ROM

1024MB / 128MB

Système de balayage

Progressive

Vitesse d’obturation électronique

Auto/manuel, 1 ~ 1/30000s

Éclairement minimum

0.002Lux/F1.5( Color,1/3s,30IRE)

0.01Lux/F1.5( Color,1/30s,30IRE)

0.001Lux/F1.5( B/W,1/3s,30IRE)

0.008Lux/F1.5( B/W,1/30s,30IRE)

Rapport signal/bruit

Plus de 50 dB

Lentille PTZ

Type d’objectif

Motorisé/Auto Iris(HALL)

Type de montage

Conseil-en

Longueur focale

5,5 mm ~ 206 mm

Max. Ouverture

F1.5

Angle de vue

H: 65.8˚ ~ 2.0˚

Zoom optique

37 x

Mise au point de contrôle

Motorisé

Distance DORI

Objectif

Détecter les

Observer

Reconnaître

Identifier

W

70m(229ft)

28m(92ft)

14m(46ft)

7m(23ft)

T

2080m

(6824 pieds)

832m

(2730ft)

416m

(1365ft)

208m

(682ft)

PTZ

Gamme de Pan/Tilt

P un : 0° ~ 360° sans fin ; Inclinaison :-20 ° ~ 90 °, flip auto 180 °

Vitesse de commande manuelle

Pan : 0,1 ° ~ 240°/s ; Inclinaison : 0,1 ° ~ 120° /s

Présélections

300

Mode PTZ

Modèle 5, 8 Tour, Auto Pan, Auto Scan

Configuration de la vitesse

Humain-orienté focale / vitesse d’adaptation

Puissance en Action

Restauration automatique au statut antérieur PTZ / lentille après coupure de courant

Mouvement ralenti

Activer le Preset / Scan / Tour / Pattern s’il n’y a pas de commande dans les temps impartis

Protocole

DH-SD, Pelco-P/D (reconnaissance automatique)

Intelligence

Auto Tracking

Prise en charge

IVS

Tripwire, Intrusion

Vidéo

Compression

H.265/H.264

Capacité de transmission en continu

3 cours d’eau

Résolution

Appareil-photo panoramique

4096 × 1800/3840 × 1680/2880 × 1264 /

1920 x 832/1280 x 560/1024 X 452

Caméra PTZ

1080p(1920x1080) / 1.3M(1280x960) / 720P(1280x720) / D1(704×576/704x480) / CIF(352×288/352x240)

Fréquence d’images

Appareil-photo panoramique

Principaux cours d’eau : 4096x1800(1~25fps)

Void Stream : 1024 X 452 (1 ~ 25/30fps)

Troisième voie : 1920 x 832 (1 ~ 25/30fps)

Caméra PTZ

Principaux cours d’eau : 1080P(1~50/60fps)

Void Stream : D1(1~50/60fps)

Troisième voie : 1080P(1~50/60fps)

Bit Rate Control

CBR/VBR

Débit binaire

Appareil-photo panoramique

H.265 : 14Kbps ~ 8192 Kbits/s

H.264 : 24Kbps ~ 8192 Kbits/s

Caméra PTZ

H.265 : 4Kbps ~ 8192 Kbits/s

H.264 : 8 kbit/s ~ 7168 kbit/s

Jour/nuit

Auto(ICR) / couleur / n & b

Mode BLC

BLC / HLC / DWDR

Balance des blancs

Auto/naturel/Street Lamp/plein air/manuel

Contrôle de gain

Auto/manuel

Réduction du bruit

DNR 3D

Détection de mouvement

Off / On (Zone 4, Rectangle)

Région d’intérêt

Off / On (Zone 4)

Image électronique Stabilization(EIS)

N/A

IR intelligent

N/A

Désembuage

Prise en charge (pour caméra PTZ uniquement)

Zoom numérique

16x

Flip

N/A

Miroir

N/A

Masquage de vie privée

Appareil-photo panoramique

Off / On (zone 4, Rectangle)

Caméra PTZ

Off / On (zone 24, Rectangle)

Audio

Compression

G.711A/G.711Mu/AAC/ G.726

Réseau

Ethernet

RJ-45 (100/1000Base-T)

Protocole

HTTP ; HTTPs ; TCP ; ARP ; RTSP ; RTP ; UDP ; SMTP ; FTP, DHCP, DNS, DDNS ; PPPOE ; IPv4/v6 ; QoS ; UPnP ; NTP ; Bonjour ; 802.1 x ; Multidiffusion, ICMP, IGMP ; SNMP

Interopérabilité

ONVIF, LB/PO2, CGI

Méthode de diffusion en continu

Unicast / Multicast

Max. Accès des utilisateurs

10 utilisateurs/20 utilisateurs

Stockage de bord

NAS

PC local pour enregistrement instantané

Carte Mirco SD 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Logiciel de gestion

Easy4ip Smart PSS, DSS,

Téléphone intelligent

IOS, Android

Certifications

Certifications

CE (FR 60950:2000)

UL:UL60950-1

FCC : FCC partie 15 sous-partie B

Interface

Interface vidéo

1 port (pour caméra PTZ uniquement)

Interface audio

2/1 canaux In/Out

RS-485

1 port

Alarme

7 canaux dans : 5mA 5VDC

canal 2 : 1 a 30 Vcc / 0,5 a 50VAC

Électrique

Bloc d’alimentation

DC36V

Consommation d’énergie

< 120W

Environnement

Conditions d’utilisation

-40° C ~ + 60 ° C (-40 ° F ~ + 140 ° F) / moins de 95 % RH

Conditions de strorage

-40° C ~ + 60 ° C (-40 ° F ~ + 140 ° F) / moins de 95 % RH

Indice de Protection

IP67

Résistance au vandalisme

IK10

Construction

Boîtier

Metal

Dimensions

Φ449.5 mm × 342.5 mm (Φ17.7"× 13,48" ")

Poids net

16KG(35.27lb)

Poids brut

25kg(55lb)

Informations de commande

Type de

Numéro de pièce

Description

Caméra PTZ Panoramic+

DH-PSD8802P-A180

4x2MP réseau panoramique multi-lentille caméra + PTZ caméra, PAL

DH-PSD8802N-A180

4x2MP réseau panoramique multi-lentille caméra + PTZ caméra, NTSC

PSD8802P-A180

4x2MP réseau panoramique multi-lentille caméra + PTZ caméra, PAL

PSD8802N-A180

4x2MP réseau panoramique multi-lentille caméra + PTZ caméra, NTSC

Accessoires (inclus)

Adaptateur de montage

Adaptateur de montage

Support mural

Support mural

DC36V / 4.17A

Bloc d’alimentation

    • SKU
      WECIPSD8802N-A180
    • Weight
      55 lbs
  • Manufacturer
    iMaxCamPro
  • Shipping Lead Time
    Ships Same Day
