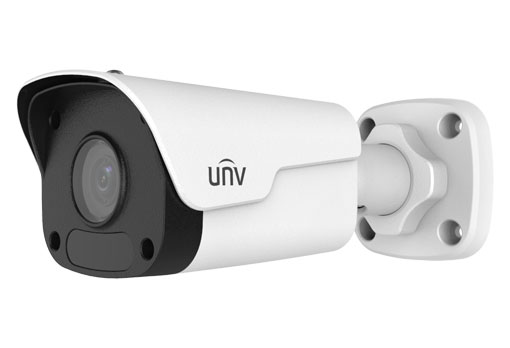

4MP MiniFixed Bullet Network Camera


Please login or register to see price
Availability: In Stock
SKU: WEC2124LR3-PF60
Product #: 99757
Manufacturer:

Optics

* Day/night functionality

* SmartIR ,up to 30 m (98 ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* 3D DNR (Digital Noise Reduction)

Compression

* H.265, H.264, MJPEG

* Triple streams

* 9:16 corridor format

Network

* ONVIF Conformance

Structure

* Wide temperature range: -30°C to 60°C (-22°F to 140°F)

* Wide voltage range of ±25%

* IP66

  WEC2124LR3-PF60
Camera
Sensor 1/3", 4.0 megapixel, progressive scan, CMOS
Lens 4.0mm@F1.8 6.0mm@F1.8
Angle of View(H) 76.8° 49.4°
Shutter Auto/Manual, 1/6~1/100000 s
Min. Illumination Colour: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR on
IR Range Up to 30m (98 ft) IR range
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
WDR Digital
Noise Reduction 2D/3D
Video
Max. Resolution 2592x1520
Video Compression H.265, H.264, MJPEG
Frame Rate 4MP (2592×1520): Max.20 fps; 4MP (2560×1440): Max.25 fps
3MP(2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming Triple
9:16 Corridor Mode Supported
ROI Supported
HLC Supported
Evaluative Metering Supported
OSD Up to 8 OSDs
Motion Detection Up to 4 areas
Privacy Mask Up to 8 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration ONVIF, API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 5.0W
Dimensions (L × W × H) 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight 0.25 kg (0.55lb)
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection IP66



Data Sheet



User manual



WEC2100 Series-Network Bullet Cameras Quick Guide-V1.01



Camera Installation Guide-V1.00




There have been no reviews
