2018 Security Products 1062

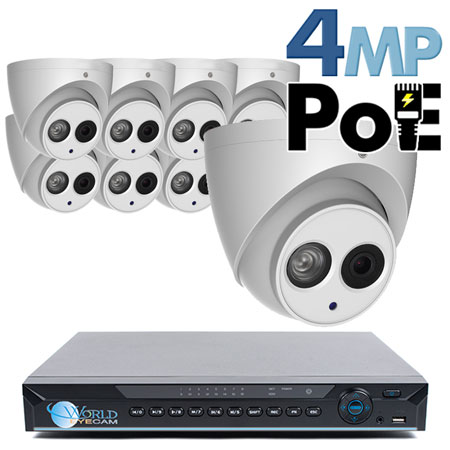

4MP IP PoE 8 Dome Camera Kit (IP5341EM)


$2,705.00


Availability: In Stock
Ships Same Day
SKU: IMAX-4MP-POE-IP5341EM-KIT-8
Product #: 91083
Manufacturer:
UPC: 881314694068
Shipping Lead Time: Ships Same Day

Hard Drive #1:
Hard Drive #2:
Lens Upgrade:
Monitor:
Cables:
Remote Login Support:
Quantity

The Fast, Easy Way To Set Up Your IP Camera and NVR





View Your Cameras On Your Mobile Device In Minutes!





This IP surveillance system kit comes with an 8 channel NVR and 8 HD 4MP Dome security cameras. The NVR comes with a free pre-installed 1TB HDD and can record up to 4K (3264 x 2448) resolution. The Dome security cameras capture 4mp resolution footage and transmit that footage to the NVR via the included RJ45 cable. The kit also comes with FREE Monitoring Software so you can monitor your surveillance footage from anywhere.



What's Included


NVR Recorder

Universal NVR Recorder




(8) 4MP WDR IP IR Dome Camera



(8) FREE 100 FT RJ45




(1) FREE 1 TB Hard Drive




Lifetime Technical Support



Mobile apps & Monitoring Software




2 Year Warranty

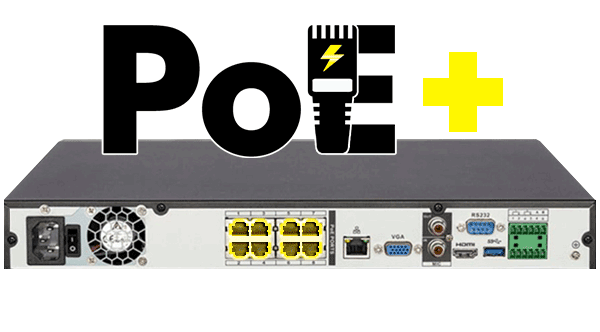

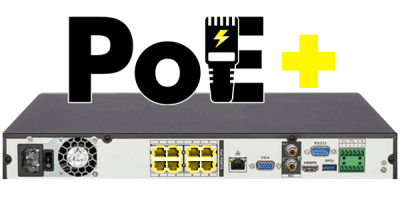

Why IP POE ?


NVR FEATURES


Camera In Day Time

Night Vision Camera

Night Vision Camera

Camera In Day Time

Camera In Day Time

Push Alerts & Automatic E-mail

Push Alerts & Automatic E-mail

Set your NVR to automatically send you an e-mail or a Push notification with video clip every time there is a motion triggered event, so you'll never miss anything important.


Face Detection

Face Detection

The Face Detection function is used to search for or identify individuals. The Smart Search function assists you in easily finding any motion detection footage for future analysis, making monitoring simple and effective.




H.265 Real-time Recording and Playback

Its H.265 compression greatly reduces the size of your digital video files without compromising image quality, which means unbeatable recording picture quality that doesn't eat up valuable hard drive storage space.



Remote Monitoring


Central Monitoring System

The IP NVR can auto detect the signal from cameras without any settings, making operation a breeze.



No Port Forwarding

Remote Monitoring

Don't have immediate access to your NVR? Don’t worry. You can effortlessly log in to your recordings by accessing them on any compatible internet ready device, such as your smartphone or tablet.


Multiple Playback and Recording Options

Multiple Playback and Recording Options

Multiple recording options allow you to set your NVR to record on a set schedule: continuous around-the-clock recording or only when motion is detected, to save hard drive space. You can also select the number of cameras displayed on one screen. With multiple playback options you can even hide certain cameras from other users.


3D Intelligent Positioning

Digitally control your PTZ cameras (move the point of view up, down, left, right, and zoom in and out) from your monitor and mobile applications.


Average Customer Rating:


4 Most useful customer reviews
Danny Manners
Aug 29, 2017
This customer purchased the item at our site.
I replaced an existing Swan 8 channel NVR with this NVR. All the existing cameras worked without any problems and I have added 6 additional 5MP cameras from Worldeyecam and the installation and operation has been flawless. Everything is working Better than i expected and the playback is as super clear as any high quality system that I have seen. Good quality equipment and easy to operate !
Loading...Was the above review useful to you? Yes (0) / No (0)
Libby Kathi
Jun 19, 2017
This customer purchased the item at our site.
This product is something which you will never regret buying. Comes with a Hard Drive of 1TB with upgraded 2.8mm lens, thus providing a fine picture quality. It is easy to install, at the same time it saves the electricity bills and also cost efficient. This PTZ camera can be controlled digitally from monitor and mobile applications. It provides the best security to my household. It has remote monitoring. I can effortlessly log in to my recordings by accessing them on any compatible internet ready device, such as smartphone or tablet.
Loading...Was the above review useful to you? Yes (0) / No (0)
Katia Zuara
May 29, 2017
This customer purchased the item at our site.
. From few days I was in search of a good surveillance camera which could look after my household in my absence. Frankly speaking this surveillance kit is exactly what I needed. Not only convenient it has also got diverse features which makes it unique among the others. Its H.265 compression greatly reduces the size of your digital video files without compromising image quality, which means unbeatable recording picture quality that doesn't eat up valuable hard drive storage space. The features doesn’t ends here, it also comprises of face detection, the Smart Search function assists in easily finding any motion detection footage for future analysis, making monitoring simple and effective. This camera is truly satisfying.
Loading...Was the above review useful to you? Yes (0) / No (0)
Karla Vogel
May 17, 2017
This customer purchased the item at our site.
The 4MP IP PoE 8 Dome Camera Kit (IP5341EM) is really a helpful thing. I got it installed in my workshop and I must say I am very much satisfied with its performance. This Dome security cameras capture 4mp resolution footage and transmit that footage to the NVR via the included RJ45 cable. The kit also comes with FREE Monitoring Software so I can monitor my surveillance footage from anywhere. It also provides a free warranty of 2 years along with a lifetime technical support. I must say this product is highly recommendable if you are in search of the best security.
Loading...Was the above review useful to you? Yes (0) / No (0)

NVR


NVR User Manual


SPECIFICATIONS
Model WEC-NVR4208-P-4K NVR4208-8P-4K
IP Camera Imputs 8 Channels
Two Way Talk 1 Channel RCA Input / Output
Display Interface 1 HDMI, 1 VGA
Display Resolution 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Display Split 1 / 4/ 8 / 9
On-Screen Display Camera Title, Time, Video Loss, Channel Lock, Motion Detection, Recording
Video Compression H.265 / H.264 / MJPEG
Recording Resolution 12MP, 8MP, 6MP, 5MP, 3MP, 1080p, 1.3MP, 720p, D1
Recording Rate 192Mbps
Bit Rate 1 - 20Mbps
Recording Mode Manual, Schedule (Continuous, MD, Alarm), Stop
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, E-mail, FTP, Snapshot, Buzzer, On-Screen Notification
Motion Detection Motion Detection, 396 MD Zones (22 x 18), Video Loss and Camera Blank
Alarm Inputs 8 Channels
Motion Detection Motion Detection, 396 MD Zones (22 x 18), Video Loss and Camera Blank
Alarm Inputs 8 Channels
Relay Outputs 3 Channels
Synchronized Playback 1 / 4 / 9
Search Mode Time/Date, Alarm, MD & Exact Search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast Forward, Frame by Frame, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Media USB HDD, Network Download
Network interface 1 RJ-45 (10/100/1000M) Ethernet Port
PoE 8 ports (IEEE802.3at/af)
Network Protocols HTTP, TCP/IP, IPv4/IPv6, UPnP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search
Remote User Access Maximum 128 Users
HDD Interfaces 2 Internal SATA Ports with a maximum storage capacity of 6TB each
USB Interfaces 1 USB 2.0 Port (front), 1 USB 3.0 Port (rear)
RS-232 Interface 1 Port for PC Communication and/or Keyboard
RS-485 Interface 1 Port for Serial PTZ Control
General
Power Requirement AC100V - 240V, 50/60Hz
Power Consumption NVR: Maximum 16W (without HDD)
Operating Environment Operating Environment -10°C - +55°C, Less than 90% Relative Humdity
Dimensions 1U, 375mm x 275mm x 56mm Weight 4lbs (without HDD)
Weight 6lbs (without HDD)
Shipping Weight 15lbs (Dimensional Weight)

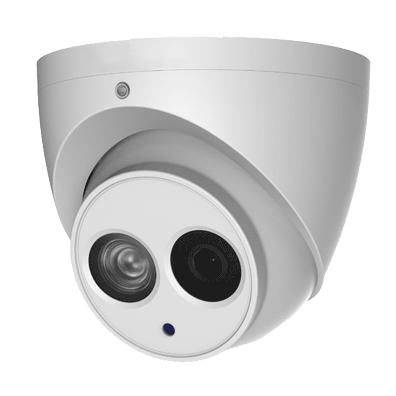

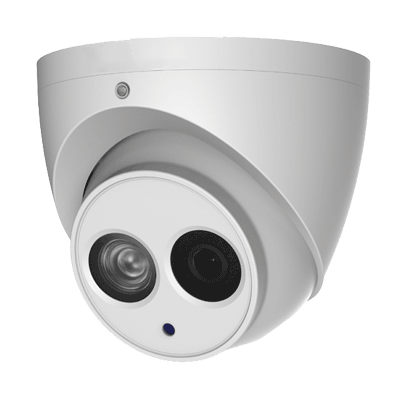

Camera


IP Camera User Manual


Specifications
Model WEC-IP5341EM-IR28
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H)x1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto / Manual; 1/3(4) - 10,000s
Min. Illumination 0. 1Lux/F1.8 (Color), 0.01Lux/F1.8(B/W)
S/N Ratio > 50dB
Video Output N/A
Camera Features
Max IR LED Distance 168 ft. / 60m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto / Manual
Gain Control Auto / Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.8mm
Max Aperture F1.8
Focus Control Manual
Angle of View Horizontal: 72.5°
Lens Type Fixed Lens
Mount Type Board-in Type
Video
Compression H.264 / MJPEG
Image Resolution 3M (2048 × 1536) / 1080P (1920 × 1080) / 720P (1280 × 720) / D1(704 × 576) / CIF(352 × 288)
Frame Rate Main Stream 3MP @ 20fps; 1080p / 1.3MP / 720p @ 30fps
Extra Stream D1/CIF (1 ~ 25/30fps)
Bit Rate H.264: 32Kbps ~ 8192Kbps
Audio
Compression G.711a/ G.711u/ AAC(optional)
Interface Built-in Mic(optional)
Network
Network Interface RJ-45 (10/100M)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF Compliance ONVIF,PSIA,CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 3.7W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Dimensions ?4.33"(110mm) x 3.19" (81mm)
Weight 0.86 lbs
