2018 Security Products 1062

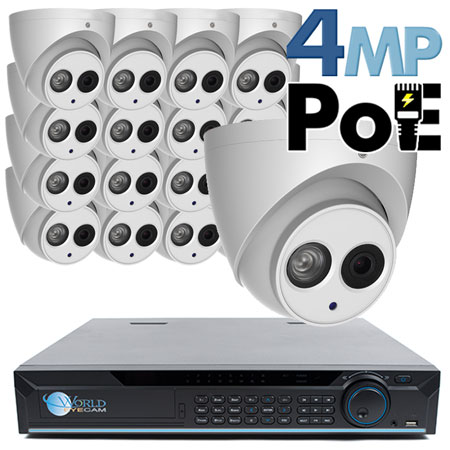

4MP IP PoE 16 Dome Camera Kit (IP5341EM)


$5,190.00


Availability: In Stock
Ships Same Day
SKU: IMAX-4MP-POE-IP5341EM-KIT-16
Product #: 91084
Manufacturer:
UPC: 881314694068
Shipping Lead Time: Ships Same Day

Hard Drive #1:
Hard Drive #2:
Lens Upgrade:
Monitor:
Cables:
Remote Login Support:
Quantity

The Fast, Easy Way To Set Up Your IP Camera and NVR





View Your Cameras On Your Mobile Device In Minutes!





This IP surveillance system kit comes with an 16 channel NVR with PoE+ and 16 HD 4MP Dome security cameras. The NVR comes with a free pre-installed 1TB HDD and can record up to 4K (3264 x 2448) resolution. The Dome security cameras capture 4mp resolution footage and transmit that footage to the NVR via the included RJ45 cable. The kit also comes with FREE Monitoring Software so you can monitor your surveillance footage from anywhere.



What's Included


NVR Recorder

Universal NVR Recorder




(16) 4MP WDR IP IR Dome Camera



(16) FREE 100 FT RJ45




(1) FREE 1 TB Hard Drive




Lifetime Technical Support



Mobile apps & Monitoring Software




2 Year Warranty








Why IP POE ?


NVR FEATURES


Camera In Day Time

Night Vision Camera

Night Vision Camera

Camera In Day Time

Camera In Day Time

Push Alerts & Automatic E-mail

Push Alerts & Automatic E-mail

Set your NVR to automatically send you an e-mail or a Push notification with video clip every time there is a motion triggered event, so you'll never miss anything important.


Face Detection

Face Detection

The Face Detection function is used to search for or identify individuals. The Smart Search function assists you in easily finding any motion detection footage for future analysis, making monitoring simple and effective.




H.265 Real-time Recording and Playback

Its H.265 compression greatly reduces the size of your digital video files without compromising image quality, which means unbeatable recording picture quality that doesn't eat up valuable hard drive storage space.



Remote Monitoring


Central Monitoring System

The IP NVR can auto detect the signal from cameras without any settings, making operation a breeze.



No Port Forwarding

Remote Monitoring

Don't have immediate access to your NVR? Don’t worry. You can effortlessly log in to your recordings by accessing them on any compatible internet ready device, such as your smartphone or tablet.


Multiple Playback and Recording Options

Multiple Playback and Recording Options

Multiple recording options allow you to set your NVR to record on a set schedule: continuous around-the-clock recording or only when motion is detected, to save hard drive space. You can also select the number of cameras displayed on one screen. With multiple playback options you can even hide certain cameras from other users.


3D Intelligent Positioning

Digitally control your PTZ cameras (move the point of view up, down, left, right, and zoom in and out) from your monitor and mobile applications.


Average Customer Rating:


4 Most useful customer reviews
Sam from LA
Aug 28, 2017
This customer purchased the item at our site.
Very nice system! PRO Commercial grade cameras. You must have a 20in or larger monitor thats 1080p compatible. I've had to hire a professional IT person to help with connecting to my network because we have a wirless WIFI Mesh network. Once we bridged the wifi networks together, we were able to connect all cameras from multiple buildings.
Loading...Was the above review useful to you? Yes (0) / No (0)
Shauntel Clark
Jun 9, 2017
This customer purchased the item at our site.
This camera is something which is easily manageable as I can view it in mobiles just in no time. The kit comes with FREE Monitoring Software so I can monitor the surveillance footage from anywhere. It has also got push alerts and automatic e-mail which helps in sending e-mail or a Push notification with video clip automatically, every time there is a motion triggered event, so you'll never miss anything important.The IP NVR can also auto detect the signal from cameras without any settings, making operation a breeze. If you are planning to get a good CCTV camera you can definitely go for this.
Loading...Was the above review useful to you? Yes (0) / No (0)
Maria Muñoz
Apr 8, 2017
This customer purchased the item at our site.
Undoubtedly this CCTV camera is the best solution for your security issues. I can say that because I am one of the users of this product and I found this thing truly helpful. 1TB Hard Drive storage, free cables, remote monitoring, easy installation, affordable price, crystal clear picture resolution: all these features are really praiseworthy. The kit also comes with FREE Monitoring Software so I can monitor the surveillance footage from anywhere. It also provides multiple playback and recording options.
Loading...Was the above review useful to you? Yes (0) / No (0)
Nelly Doretha
Mar 5, 2017
This customer purchased the item at our site.
This is the ultimate solution to your security issues. This IP surveillance system kit comes with 16 channel NVR with PoE+ and 16 HD 4MP Dome security cameras. The NVR comes with a free pre-installed 1TB HDD and can record up to 4K (3264 x 2448) resolution. The crystal clear image is the key factor which provides with a detailed view of the area under surveillance. It also comes with a free 1TB Hard Drive and free cables. It does not need any log-in support as it has remote log-in facility, it can be operated from anywhere with the help of mobile.
Loading...Was the above review useful to you? Yes (0) / No (0)

NVR


NVR User Manual


SPECIFICATIONS
Model WEC-NVR4416-16P-4K NVR4416-16P-4K
IP Camera Imputs 16 Channels
Two Way Talk 1 Channel RCA Input / Output
Display Interface 2 HDMI, 1 VGA
Display Resolution 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Display Split 1 / 4/ 8 / 9
On-Screen Display Camera Title, Time, Video Loss, Channel Lock, Motion Detection, Recording
Video Compression H.265 / H.264 / MJPEG
Recording Resolution 12MP, 8MP, 6MP, 5MP, 3MP, 1080p, 1.3MP, 720p, D1
Recording Rate 192Mbps
Bit Rate 1 - 20Mbps
Recording Mode Manual, Schedule (Continuous, MD, Alarm), Stop
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, E-mail, FTP, Snapshot, Buzzer, On-Screen Notification
Motion Detection Motion Detection, 396 MD Zones (22 x 18), Video Loss and Camera Blank
Alarm Inputs 16 Channels
Motion Detection Motion Detection, 396 MD Zones (22 x 18), Video Loss and Camera Blank
Alarm Inputs 16 Channels
Relay Outputs 6 Channels
Synchronized Playback 1 / 4 / 9 / 16
Search Mode Time/Date, Alarm, MD & Exact Search (accurate to second), Smart Search
Playback Functions Play, Pause, Stop, Rewind, Fast Forward, Frame by Frame, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Media USB Device / Network / Internal SATA burner / eSATA Device
Network interface 1 RJ-45 (10/100/1000M) Ethernet Port
PoE 16 ports (IEEE802.3at/af)>
Network Protocols HTTP, TCP/IP, IPv4/IPv6, UPnP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search
Remote User Access Maximum 128 Users
HDD Interfaces 4 Internal SATA III Ports with a maximum storage capacity of 6TB each, 1 eSATA port
USB Interfaces 1 USB 2.0 Port (front), 2 USB 3.0 Port (rear)
RS-232 Interface 1 Port for PC Communication and/or Keyboard
RS-485 Interface 1 Port for Serial PTZ Control
General
Power Requirement AC100V - 240V, 50/60Hz)
Power Consumption NVR: Maximum 27W (without HDD)
Operating Environment Operating Environment -10°C - +55°C, Less than 90% Relative Humdity
Dimensions 1.5U, 440mm x 405mm x 76mm
Weight 11 lbs (without HDD)
Shipping Weight 23 lbs (Dimensional Weight)

Camera


IP Camera User Manual


Specifications

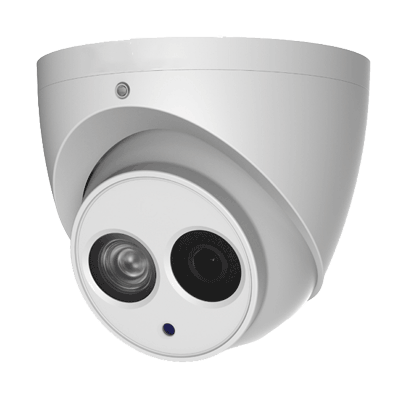

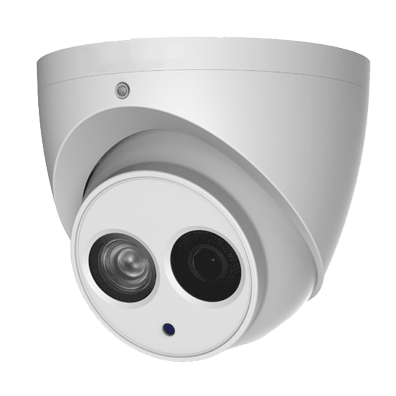

Model WEC-IP5341EM-IR28
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H)x1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto / Manual; 1/3(4) - 10,000s
Min. Illumination 0. 1Lux/F1.8 (Color), 0.01Lux/F1.8(B/W)
S/N Ratio > 50dB
Video Output N/A
Camera Features
Max IR LED Distance 168 ft. / 60m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto / Manual
Gain Control Auto / Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.8mm
Max Aperture F1.8
Focus Control Manual
Angle of View Horizontal: 72.5°
Lens Type Fixed Lens
Mount Type Board-in Type
Video
Compression H.264 / MJPEG
Image Resolution 3M (2048 × 1536) / 1080P (1920 × 1080) / 720P (1280 × 720) / D1(704 × 576) / CIF(352 × 288)
Frame Rate Main Stream 3MP @ 20fps; 1080p / 1.3MP / 720p @ 30fps
Extra Stream D1/CIF (1 ~ 25/30fps)
Bit Rate H.264: 32Kbps ~ 8192Kbps
Audio
Compression G.711a/ G.711u/ AAC(optional)
Interface Built-in Mic(optional)
Network
Network Interface RJ-45 (10/100M)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF Compliance ONVIF,PSIA,CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 3.7W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Dimensions ?4.33"(110mm) x 3.19" (81mm)
Weight 0.86 lbs

Support


iMaxCamPro Support
iMaxCamPro Support | Remote Access Guides | Support Home

iMaxCamPro Quick Links

iMaxCamPro Remote Access Guides


Note! To Download Software Enter The Following Information:
Username: wec
Password: WEC1234$

Software Downloads


Networking

 Network Setup Overview  Network Integration (locally)  Web Service Walkthrough (remote access through ie or Mozilla)  How to view cameras (remotely)  Setting up DVR with No-IP DDNS (locally)  Setting Up DDNS [DynDNS.com] (locally)
 Testing DynDNS DDNS  How to Access your iMaxCamPro DVR's through Internet Explorer 8 (remotely)  Using Mozilla Firefox with iMaxCamPro DVR's  How to View cameras via iPhone & iPad  How to View cameras via cell phone Blackberry  How to View cameras via cell phone Android  How to View cameras via cell phone Windows Mobile  How to View cameras via cell phone Symbian  How to Setup Your Surveillance Kit  iMaxCamPro Drive Compatibility List  Video Codec Pack 7.1.0 (Win)  How to Playback Recorded Video (locally)  How to Playback Recorded Video (remotely)  How to do a Digital Zoom on Playbacks (locally)  How to Setup Recording (locally)  How to Default Configurations (locally)  How to Default Configurations (remotely)  How to Set DVR to Never Log Out from Your Current User (locally)  How to setup Motion Detection (locally)  How to setup email notification (remotely)  How to reset your remote control  How to backup video files (locally)  How to setup a PTZ (remotely)  How to Format Hard Drive (locally)  How to Setup Redundancy (locally)  How to Add/Modify User Accounts (locally)  How to Add/Modify User Accounts (remotely)  How to enable audio (locally)  How to Change Channel Names (locally)  How to Setup Alarm Based Recording (locally)  How to access the Log File (locally)  How to access the Log File (remotely)

SmartPSS Client



We are Authorized Manufacturer Distributors for many main stream CCTV manufactures. Our support technicians are factory trained with strong emphasis on advanced networking and configurations of NVRs and DVRs from across multiple networks. We offer hourly support plans to help your facilities maintain system stability and optimal configuration settings.



In addition to our on-call technical support, we offer a selection of System Implementation Plans to every client.

free-tech-support

Free Technical Support

Complimentary technical support includes:

  • Basic System Implementation (one-time event, 30 minutes max)
  • Break/Fix support under manufacturer warranty
  • Basic camera, network, and NVR/DVR troubleshooting

Out of scope, additional setup, and advanced support is available at $80/ hour.


 Call us at: 888-211-2288

Email: support@worldeyecam.com

Business hours: Monday - Friday, 8:00am-5:00pm PST

    Premium Technical Support Offerings


  • End User Training
  • Available at $80 / hour
  • Must be scheduled in advance
  • View our Training Options

Advanced Training


Support for advanced configuration, out of scope troubleshooting, and other technical issues is available. In some cases “smart hands” may need to be present on-site before Advanced Support can begin. For many support tasks we require access to your high speed internet router/modem.

We require appointment scheduling with a minimum of 24-hour notice for Advanced Support.

Advanced Support can be purchased at $80/ hour.






 Technical Support Scope

Support
Activity
Free
Support
Advanced
Support
Basic System Setup - 30 minutes max.
Break/Fix Issues - Including RMA's and DOA
Basic camera, network,
and NVR/DVR troubleshooting
Advanced Support
Configuration for Remote Access
Mobile App Configuration
Camera / NVR Time Settings
Motion Detection
Setup Recording Schedules
Email/SMS Alert Configuration
Configure VMS/NVR Camera Matrix View
NVR/VMS Muliple User Setup
Archive to NAS
Camera Image Settings Configuration
License Plate Capture - Day/Night
Setup Router/ Modems /4G Hotspots
Third Party Mobile App Configuration
IP Reconfiguration
Cameras without Networks
Advanced Networking
MAC Client Setup
Other Advanced Configurations
